Description

The Yamaha PSR-S775 Arranger Workstation Keyboard is a professional performance workstation with more content and a larger memory capacity for expansion packs than the previous PSR-S770 model. PSR-S775 is equipped with a host of powerful performance features, flexible audio recording and playback functions and a mic/guitar input, making it ideal for live use on stage, in the studio or at home.

• 1460 Voices, including Super Articulation voices and Organ flutes, 50 Drum/SFX kits, and 480 XG voices
• 433 Styles, including 30 Session Styles, 15 DJ styles and 1 Free Play
• Half bar fill-in and Mono legato function
• 280 MB on-board memory for expansion data
• Mic/Guitar input for use when singing or collaborating with other performers
• USB audio playback with time stretch, pitch shift, vocal cancel and MP3 lyrics display functions

Yamaha PSR-S775 Arranger Workstation Keyboard Powerful features for live performance

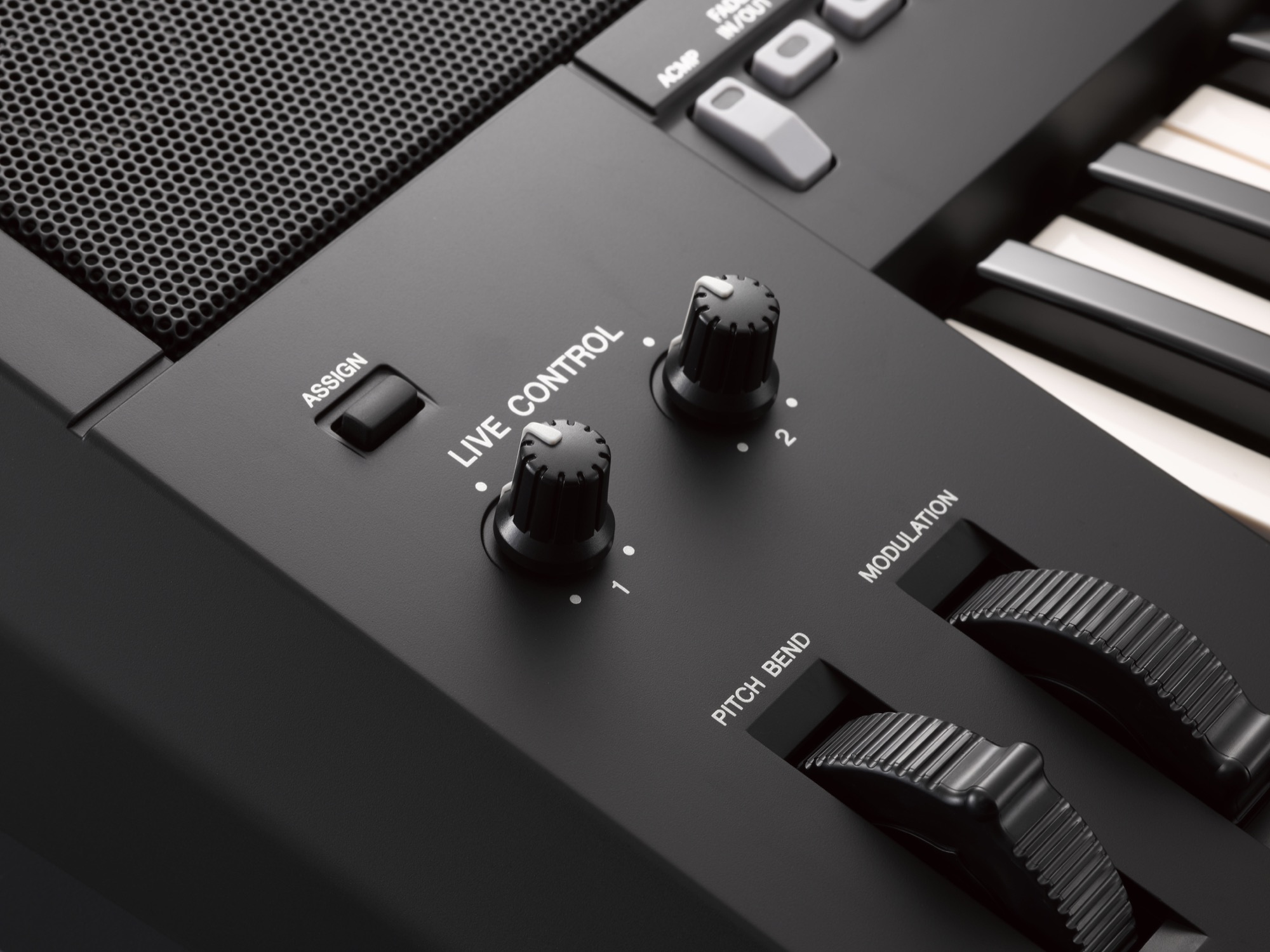

The PSR-S775 features two assignable live controllers, a modulation wheel and two assignable foot pedal inputs, ensuring that you have total control over Voices, Styles, effects and other functions during live performance.

Newly implemented half bar fill-in and Mono Legato function expand the variation of your performance. Live control settings can be immediately called up from Registration Memory.

Let your music take you to new places

Voice & Style Expansion Packs enable you to customise the PSR-S775 with a wide range of additional content from all over the world. When loaded into the keyboard, you can instantly access authentic new sounds, rhythms and backings in the musical style of your choice.

Use Yamaha Expansion Manager to create individual expansion data sets containing content from various packs and utilize the 280 MB memory on-board. You can even create your own voices based on your sample library.

Yamaha PSR-S775 Arranger Workstation Keyboard,Get real with sound

Enjoy realistic Super Articulation Voices, Organ Flutes and many other sounds from the Tyros series. The PSR-S775’s superb sonic quality, meticulously sampled Voices, and a comprehensive suite of effects will take your performances to a new level of authenticity.

Attractive sound library covering a wide range of genres

In addition to the wide variety of content from the PSR-S775, popular packs like Euro dance or Salsa pack are pre-installed in the PLUS category.

Great for singers and guitarists

The PSR-S775 comes equipped with a Mic/Guitar input that allows you to add vocals or guitar to your live performance with ease. Simply plug in a microphone and you can effortlessly assign any of the PSR’s versatile effects to the vocals. Or, connect a guitar and adjust the parameters to suit your preference and emulate the sound of your favourite artists or create a sound that’s all your own!

Yamaha PSR-S775 Arranger Workstation Keyboard,USB audio playback with flexible functions

Whether you’re enhancing a live performance with backing tracks from your music library or just livening up a party with some Karaoke, the time stretch, pitch shift, vocal cancel and MP3 lyrics display function will add depth and versatility to any musical event.



Dimensions	Width	1002 mm
	Height	148 mm
	Depth	437 mm
Weight	Weight	11.1 kg
Keyboard	Number of Keys	61
	Type	Organ, Initial Touch
	Touch Response	Hard1, Hard2, Medium, Soft1, Soft2
Other Controllers	Pitch Bend	Yes
	Modulation	Yes
	Control Knobs	2 (assignable)

Display	Type	TFT Color Wide VGA LCD
	Size	7 inch
	Color	Color
	Language	English, German, French, Spanish, Italian
Panel	Language	English
Voices
Tone Generation	Tone Generating Technology	AWM Stereo Sampling
Polyphony	Number of Polyphony (Max.)	128
Preset	Number of Voices	930 Voices + 50 Drum/SFX Kits + 480 XG Voices
	Featured Voices	76 S.Art!, 23 Mega Voices, 28 Sweet! Voices, 64 Cool! Voices, 81 Live! Voices, 20 Organ Flutes!

Compatibility	XG	Yes
	GS	Yes (for Song playback)
	GM	Yes
	GM2	Yes
Expandability	Expansion Voice	Yes (approx. 280 MB max.)
	Editing	Voice Set
Part		Right 1, Right 2, Left
Effects
Types	Reverb	52 Presets + 3 User
	Chorus	106 Presets + 3 User
	DSP	295 Presets + 10 User

Fingering

Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard

Style Control

INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3

Other Features

Music Finder

1,200 Records

One Touch Setting (OTS)

4 for each Style

Expandability

Expansion Style

Yes

Compatibility

Style File Format, Style File Format GE

Songs

Preset

Number of Preset Songs

5 Sample Songs

Recording

Number of Songs

Unlimited (depends on the drive capacity)

Number of Tracks

16

Data Capacity

approx. 300 KB/Song

Recording Function

Quick Recording, Multi Recording, Step Recording

Compatible Data Format

Playback

SMF (Format 0 & 1), XF

Recording

SMF (Format 0)

Multi Pads

Preset

Number of Multi Pad Banks

188 banks x 4 Pads

Audio

Audio Link

Yes

Functions

Registration

Number of Buttons

8

Control

Registration Sequence, Freeze

Lesson/Guide

Lesson/Guide

Follow Lights, Any Key, Karao-Key, Your Tempo

Performance Assistant Technology (PAT)

Yes

Demo/Help

Demonstration

Yes

Overall Controls

Metronome

Yes

Tempo Range

5 – 500, Tap Tempo

Transpose

-12 – 0 – +12

Tuning

414.8 – 440 – 466.8 Hz

Octave Button

Yes

Scale Type

9 types

Miscellaneous

Direct Access

Yes

Text Display Function

Yes

Wallpaper Customization

Yes

Voices

Harmony/Echo

Yes (with Arpeggio)

Panel Sustain

Yes

Mono/Poly

Yes

Voice Information

Yes

Styles

Style Creator

Yes

Style Recommender

Yes

OTS Information

Yes

Songs

Song Creator

Yes

Score Display Function

Yes

Lyrics Display Function

Yes

Multi Pads

Multi Pad Creator

Yes

Audio Recorder/Player

Recording Time (max.)

80 minutes/Song

Recording

.wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo)

Playback

.wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (MPEG-1 Audio Layer-3: 44.1/48.0 kHz sample rate, 64-320 kbps and variable bit rate, mono/streo)

Time Stretch

Yes

Lyrics Display Function

Yes (.mp3 only)

Pitch Shift

Yes

Vocal Cancel

Yes

Storage and Connectivity

Storage

Internal Memory

approx. 13 MB

External Drives

USB Flash Memory (via USB to DEVICE)

Connectivity

Headphones

Yes

FOOT PEDAL

1 (SUSTAIN), 2 (ARTICULATION), Function Assignable

Microphone

Microphone/Guitar x 1

MIDI

IN, OUT

AUX IN

Stereo mini jack

LINE OUT

L/L+R, R

USB TO DEVICE

Yes

USB TO HOST

Yes

Amplifiers and Speakers

Amplifiers

15 W x 2

Speakers

13 cm x 2 + 5 cm x 2

Power Supply

Power Supply

PA-300C or an equibalent recommended by Yamaha

Power Consumption

19 W

Auto Power Off Function

Yes

Accessories

Included Accessories

Owner’s Manual, Online Member Product Registration, Music Rest, AC Adaptor
