Description

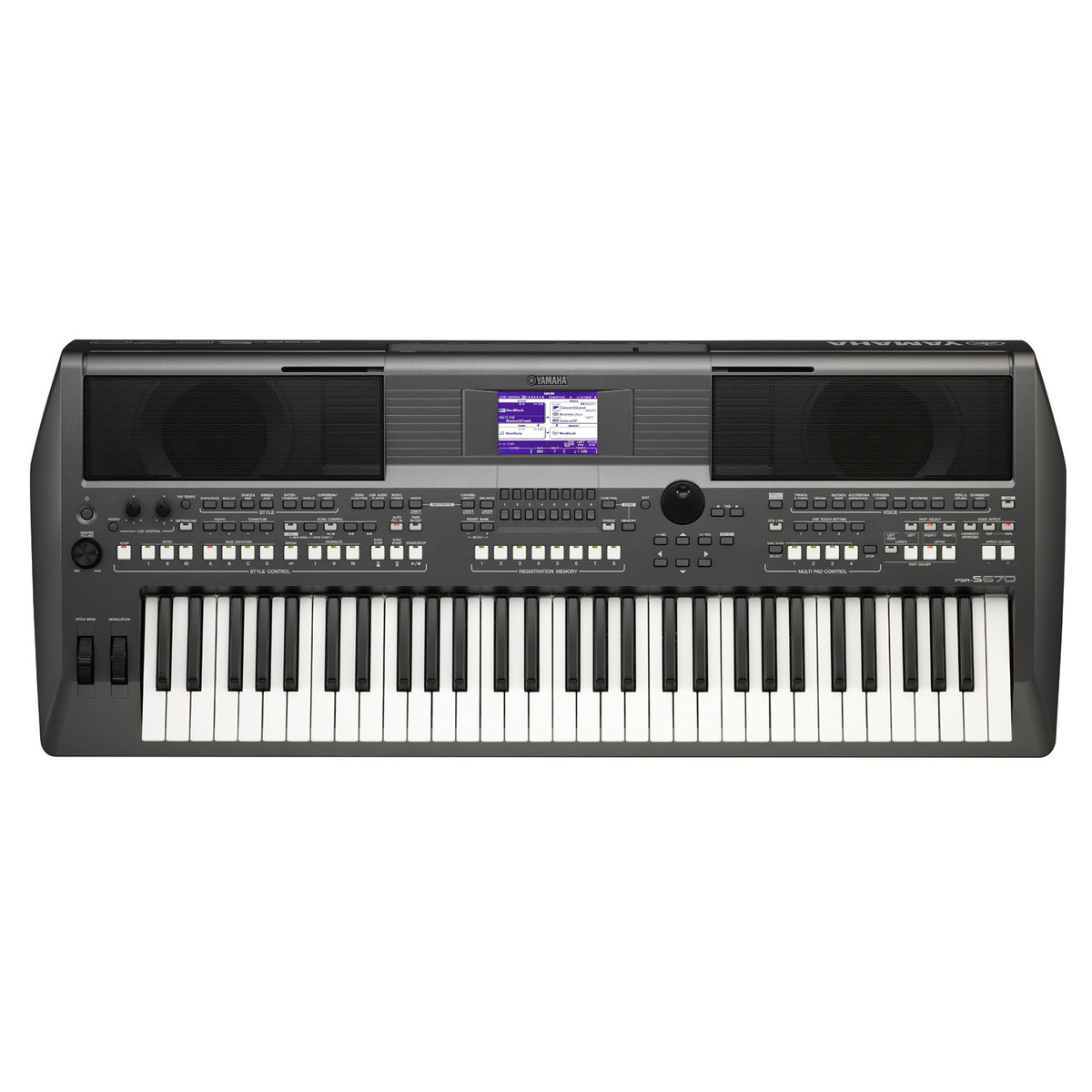

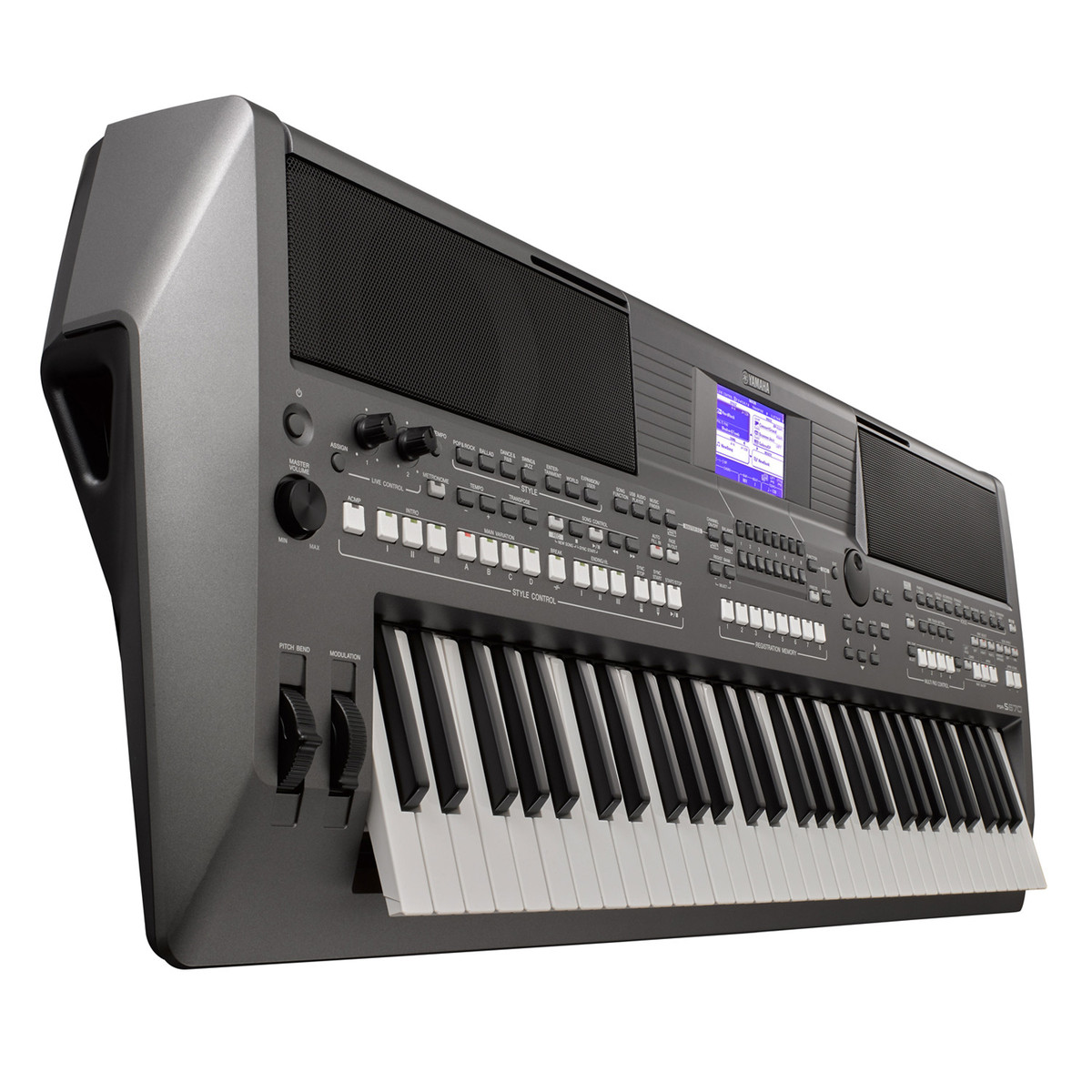

Yamaha PSR S670 Arranger Workstation Keyboard

Key benefits compared to other products

Even the baby of the PSR S Series is packed with powerful workstation features such as the 16-track recorder and voice expansion options. But what immediately sets the Yamaha PSR S670 Arranger Workstation Keyboard apart from the lower PSR-E Series is the sound quality – incredible grand pianos, electric pianos and strings make this the best-sounding keyboard in its class.

With its stunning design featuring new voices and styles, DJ functions the PSR-S670 is a performance keyboard like no other.

Yamaha PSR-S670 Arranger Workstation Keyboard Key features:

• 416 Voices (including MegaVoices), 34 Drum/SFX kits and 480 XG Voices
• Authentic sampled sounds including superb acoustic and electric pianos, and electronic sounds perfect for today’s dance music
• New intelligent Arpeggio function with instant access to a library of arpeggiated synth phrases and patterns
• 230 Styles including a brand new DJ category.

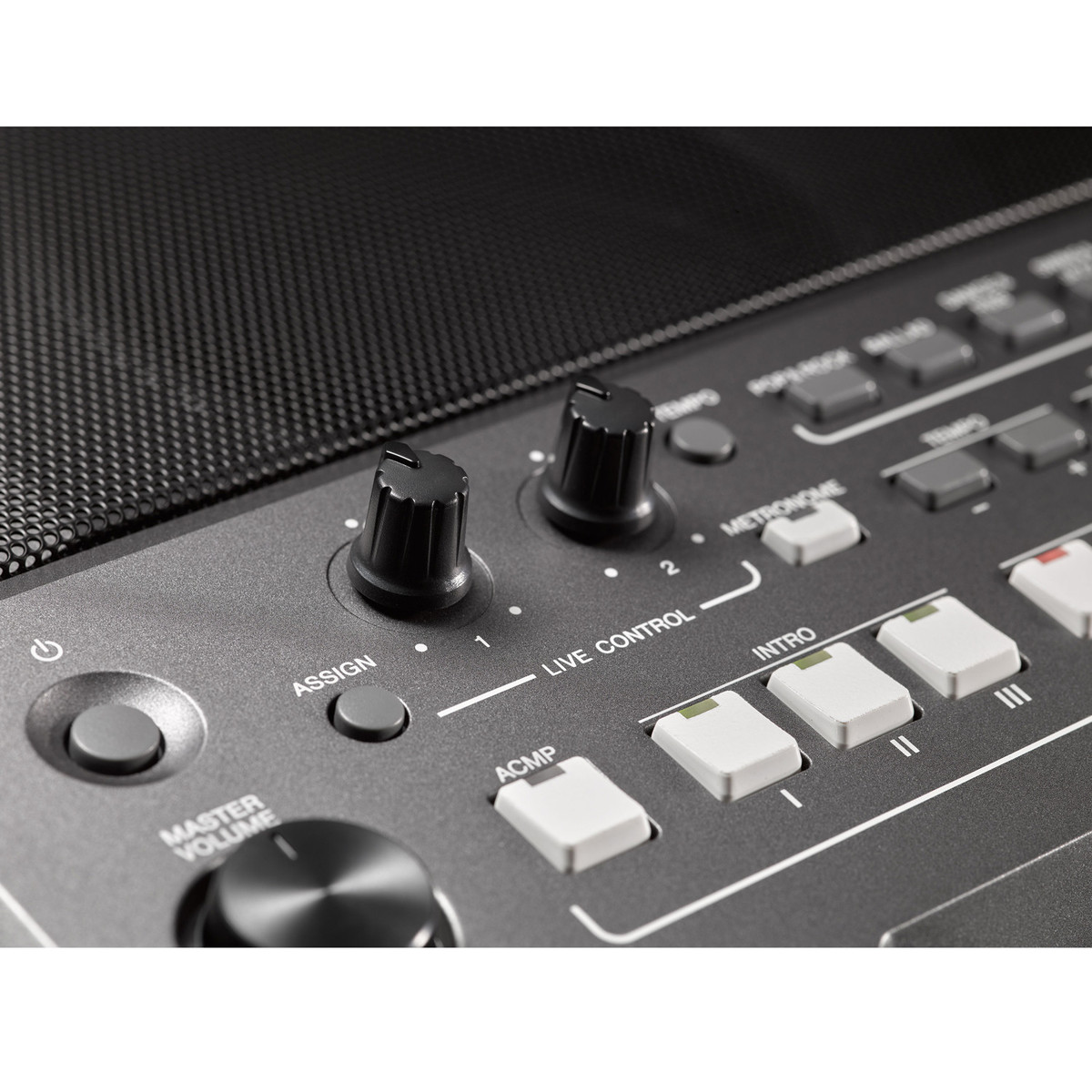

• Two live controllers for instant control over effects and other functions, including filter, arpeggio and track mute.
• Expansion Memory – add new voices, drum kits and styles for extra versatility and enhanced performance
• Authentic voices and styles from around the world

Colour/Finish

• Body Colour Metallic Dark Grey

Size/Weight

• Width 1004 mm
• Height 134 mm
• Depth 410 mm
• Weight 8.1 kg

Yamaha PSR S670 Arranger Workstation Keyboard Control Interface

• Number of Keys 61
• Type Organ, Initial Touch
• Touch Response Hard1, Hard2, Medium, Soft1, Soft2
• Other Controllers Pitch Bend Yes
• Modulation Yes
• Control Knobs 2 (assignable)
• Display Type QVGA 4.3 inch LCD
• Size 320 x 240 dots
• Color Monochrome
• Language English, German, French, Spanish, Italian, Japanese
• Panel Language English

Voices

• Tone Generating Technology AWM Stereo Sampling
• Number of Polyphony (Max.) 128
• Preset Number of Voices 416 Voice + 34 Drum/SFX Kits + 480 XG Voices
• Featured Voices 11 Mega Voices, 19 Sweet! Voices, 28 Cool! Voices, 19 Live! Voices
• Compatibility XG Yes
• GS Yes (for Song playback)
• GM Yes
• GM2 Yes
• Expandability Expansion Voice Yes (approx. 32 MB max.)
• Part Right 1, Right 2, Left

Effects

• Reverb 44 Presets + 3 User
• Chorus 71 Presets + 3 User
• DSP 283 Presets + 10 User
• Master Compressor 5 Presets + 2 User
• Master EQ 5 Presets + 2 User
• Arpeggio Yes

Yamaha PSR S670 Arranger Workstation Keyboard Accompaniment Styles

• Number of Preset Styles 230
• Featured Styles 208 Pro Styles, 12 Session Styles, 10 DJ Styles
• Fingering Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
• Style Control INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3
• Other Features Music Finder 1,200 Records
• One Touch Setting (OTS) 4 for each Style
• Expandability Expansion Style Yes
• Compatibility Style File Format, Style File Format GE

Songs

• Number of Preset Songs 4 Sample Songs
• Number of Songs Unlimited (depends on the drive capacity)
• Number of Tracks 16
• Data Capacity approx. 300 KB/Song
• Recording Function Quick Recording, Multi Track Recording
• Compatible Data Format Playback SMF (Format 0 & 1), XF
• Recording SMF (Format 0)

Functions

• Number of Buttons 8
• Control Registration Sequence, Freeze
• Lesson/Guide Lesson/Guide Follow Lights, Any Key, Karao-Key, Your Tempo
• Demo/Help Demonstration Yes
• Overall Controls Metronome Yes
• Tempo Range 5 – 500, Tap Tempo
• Transpose -12 – 0 – +12
• Tuning 414.8 – 440 – 466.8 Hz
• Octave Button Yes
• Scale Type 9 Presets
• Miscellaneous Direct Access Yes
• Voices Harmony/Echo Yes
• Panel Sustain Yes
• Mono/Poly Yes
• Styles Style Creator Yes (No Step Edit)
• Style Recommender Yes
• OTS Information Yes
• Songs Song Creator Yes (No Step Edit)
• Score Display Function Yes
• Lyrics Display Function Yes
• Multi Pads Multi Pad Creator Yes
• Audio Recorder/Player Recording Time (max.) 80 minutes/Song
• Recording .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo)
• Playback .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo)

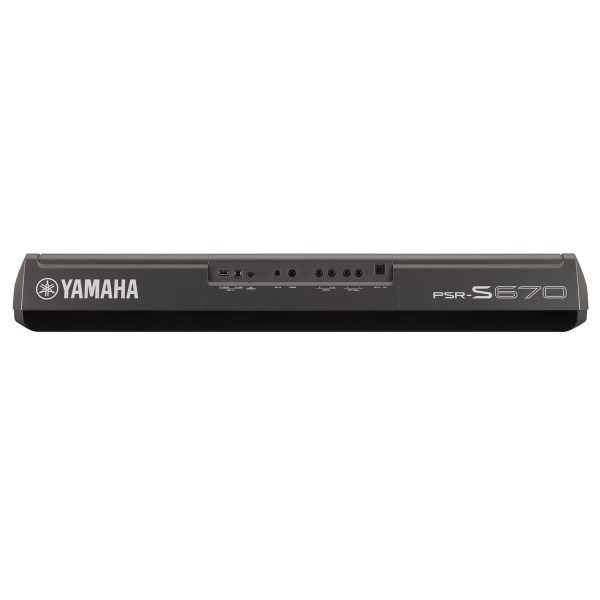

Yamaha PSR S670 Arranger Workstation Keyboard Storage and Connectivity

• Internal Memory approx. 2 MB
• External Drives USB Flash Memory (via USB to DEVICE)
• Connectivity Headphones Yes
• FOOT PEDAL 1 (SUSTAIN), 2 (VOLUME), Function Assignable
• AUX IN Yes
• LINE OUT L/L+R, R
• USB TO DEVICE Yes
• USB TO HOST Yes

Amplifiers and Speakers

• Amplifiers 15 W x 2
• Speakers 12 cm x 2

Power Supply

• Power Supply PA-300C or an equivalent recommended by Yamaha
• Power Consumption 15 W
• Auto Power Off Function Yes

Accessories

• Included Accessories Owner’s Manual, Online Member Product Registration, Music Rest, AC Adaptor

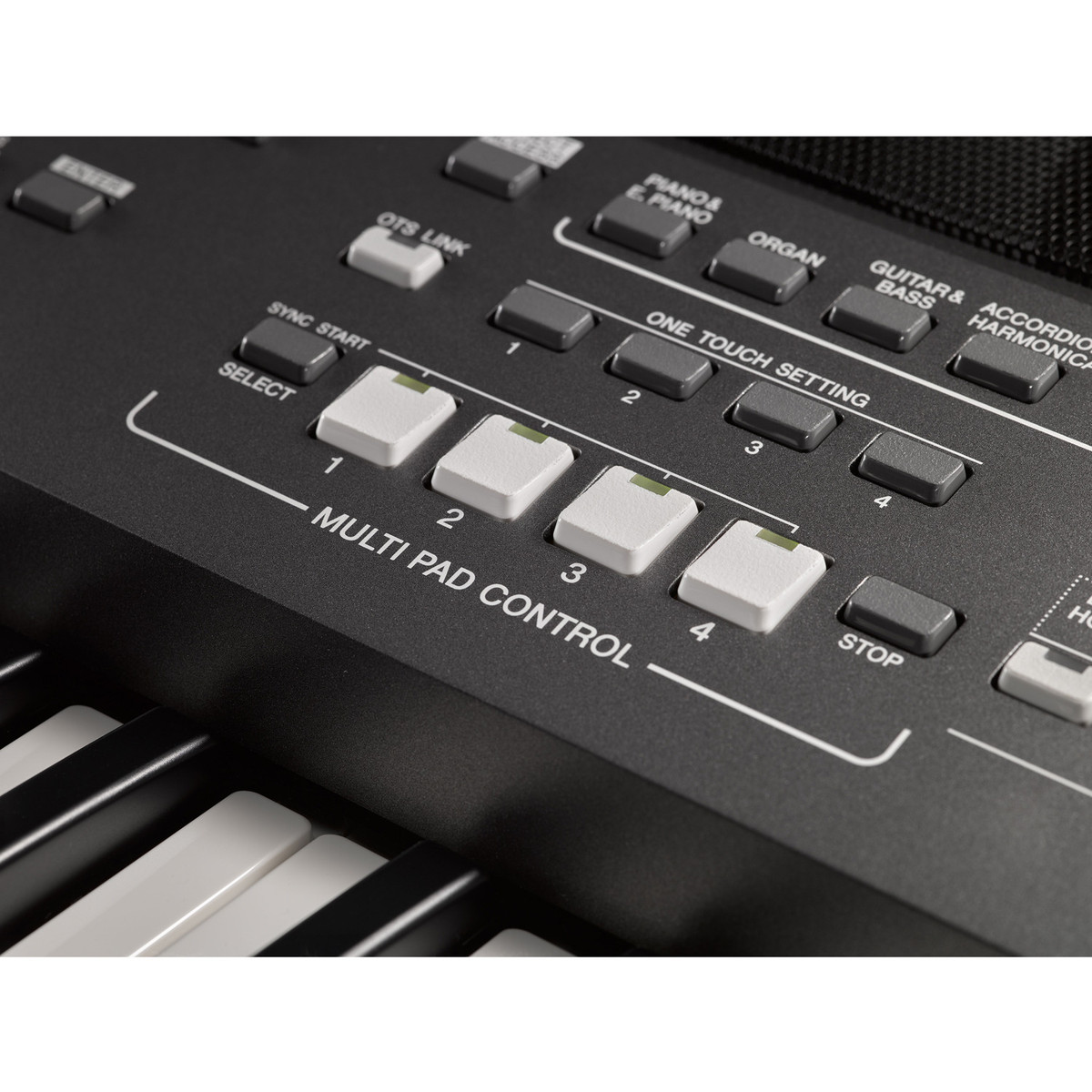

Multi Pads

• Preset Number of Multi Pad Banks 179 banks x 4 Pads
• Audio Link Yes
