Description

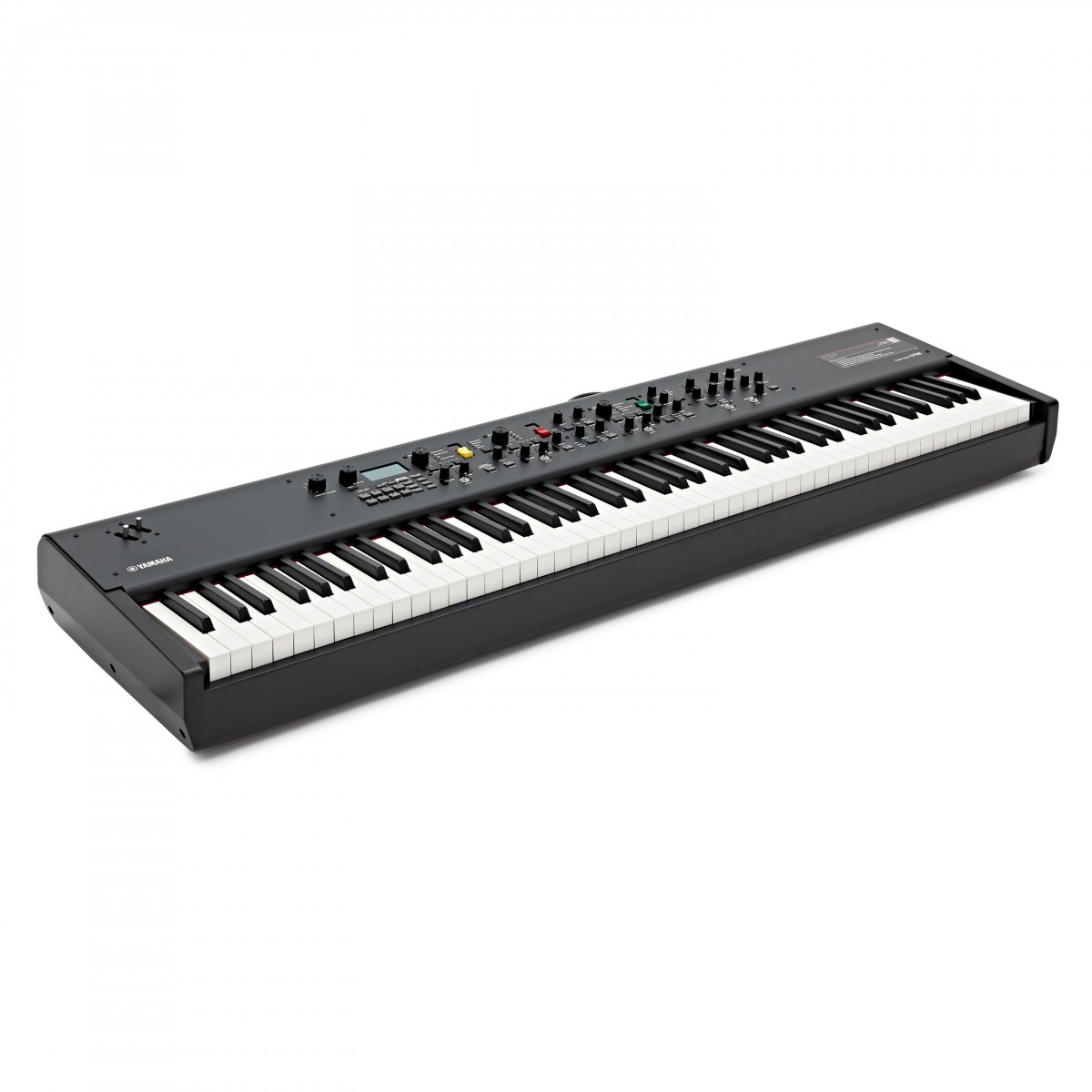

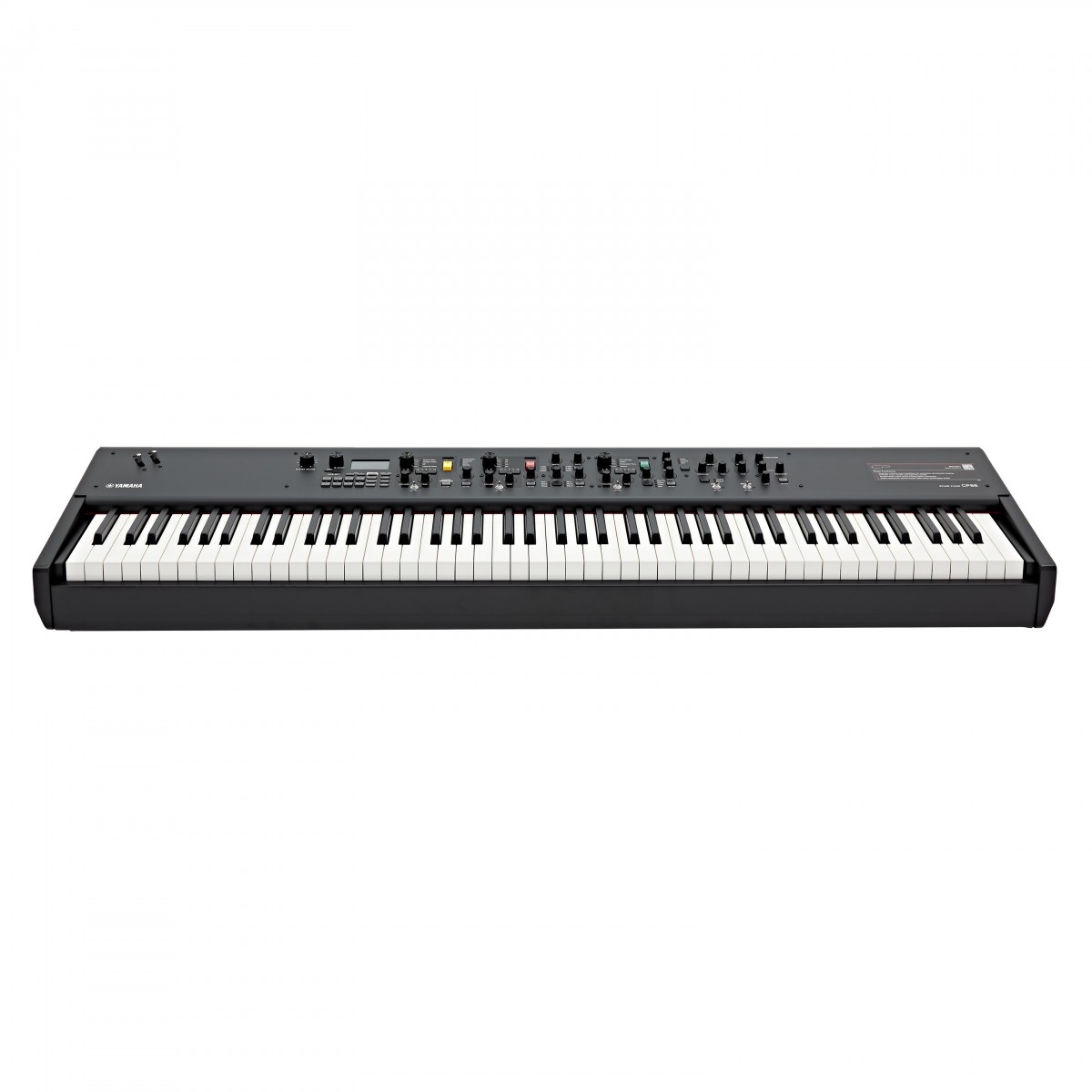

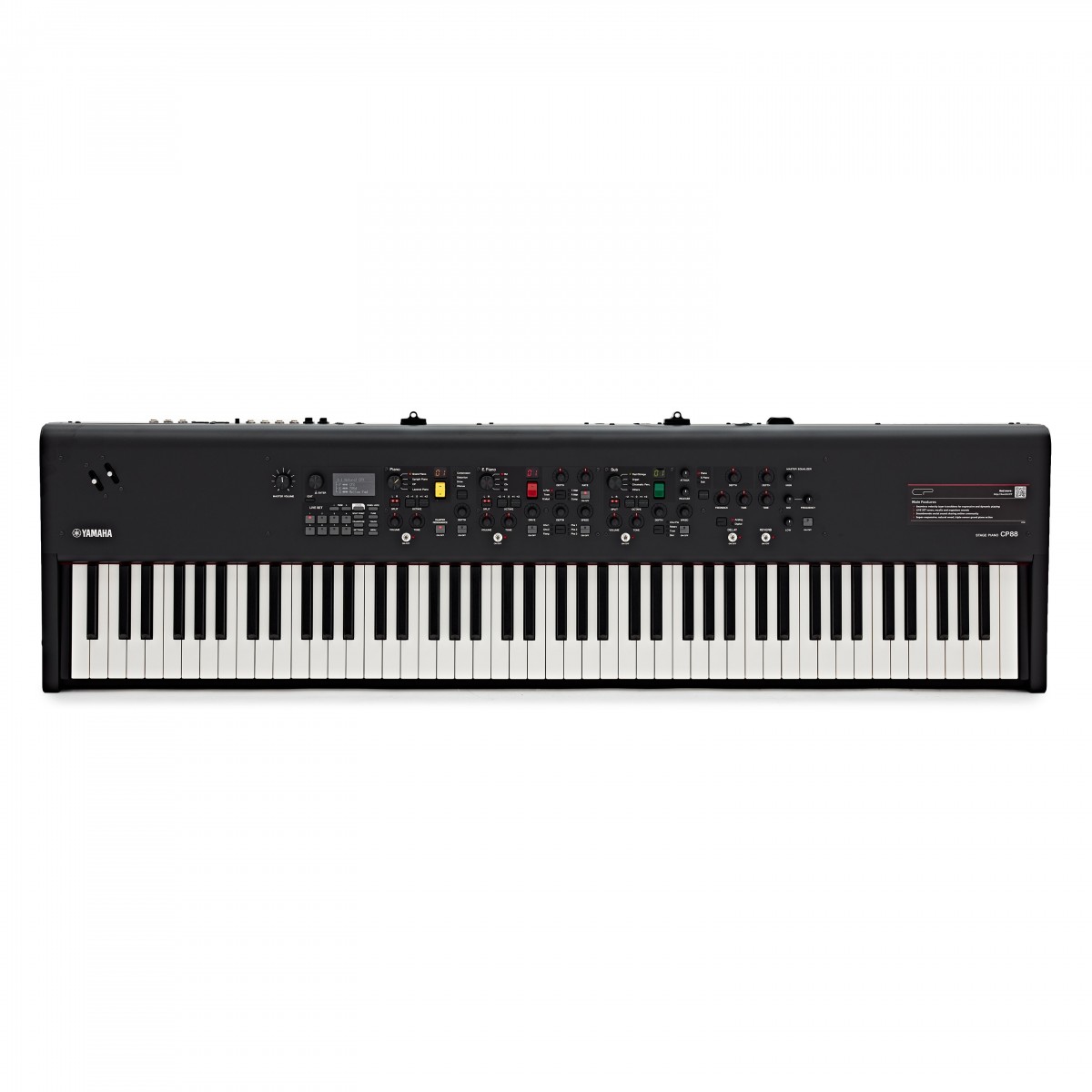

Yamaha CP88 Digital Stage Piano

The Yamaha CP88 Digital Stage Piano is powered by decades of research and development. Yamaha has maintained a reputation for outstanding craftsmanship. Launching its all-new, revolutionary stage pianos that feature some incredible digital features, while maintaining the touch and feel of the acoustic grand piano. Featuring world-class sounds of the renowned Yamaha CFX, Yamaha S700 and the Bosendorfer Imperial 290. And carefully designed with Natural Wood Graded Hammer keyboard action. The CP 88 is an ideal choice for the piano purists. As it allows you to play with the fullest expression.

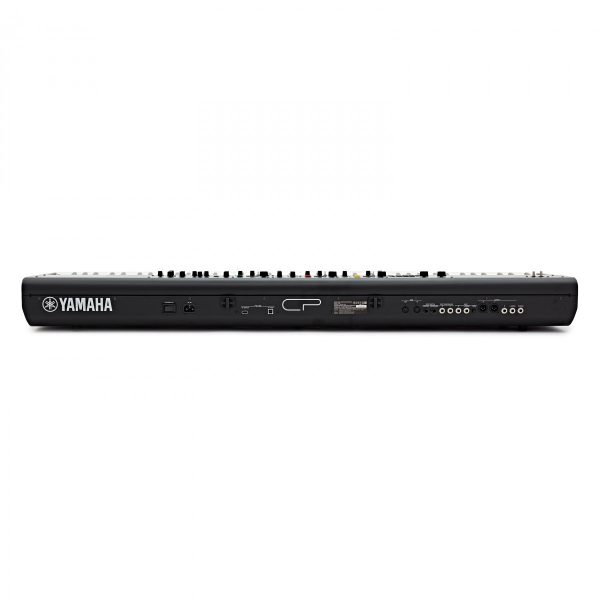

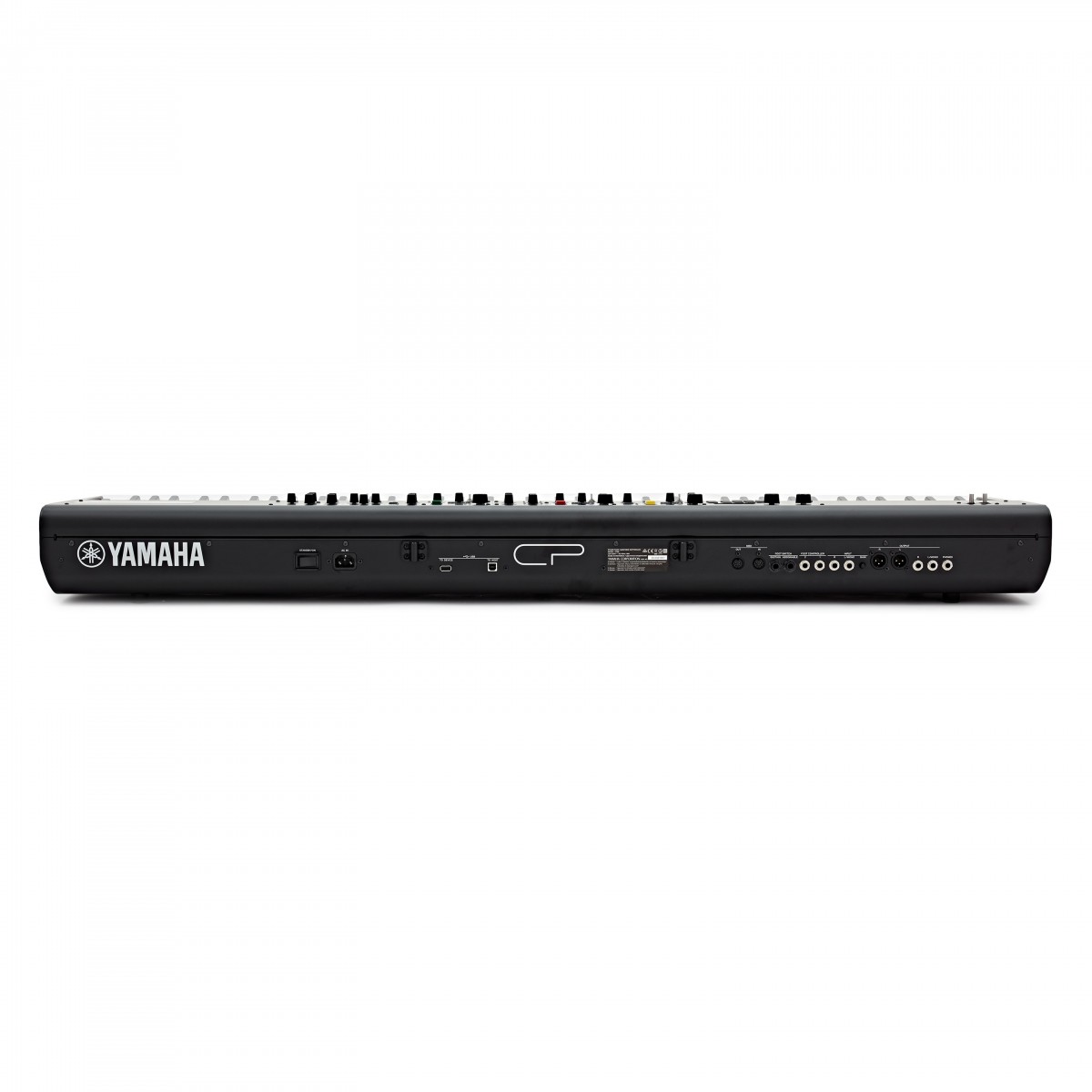

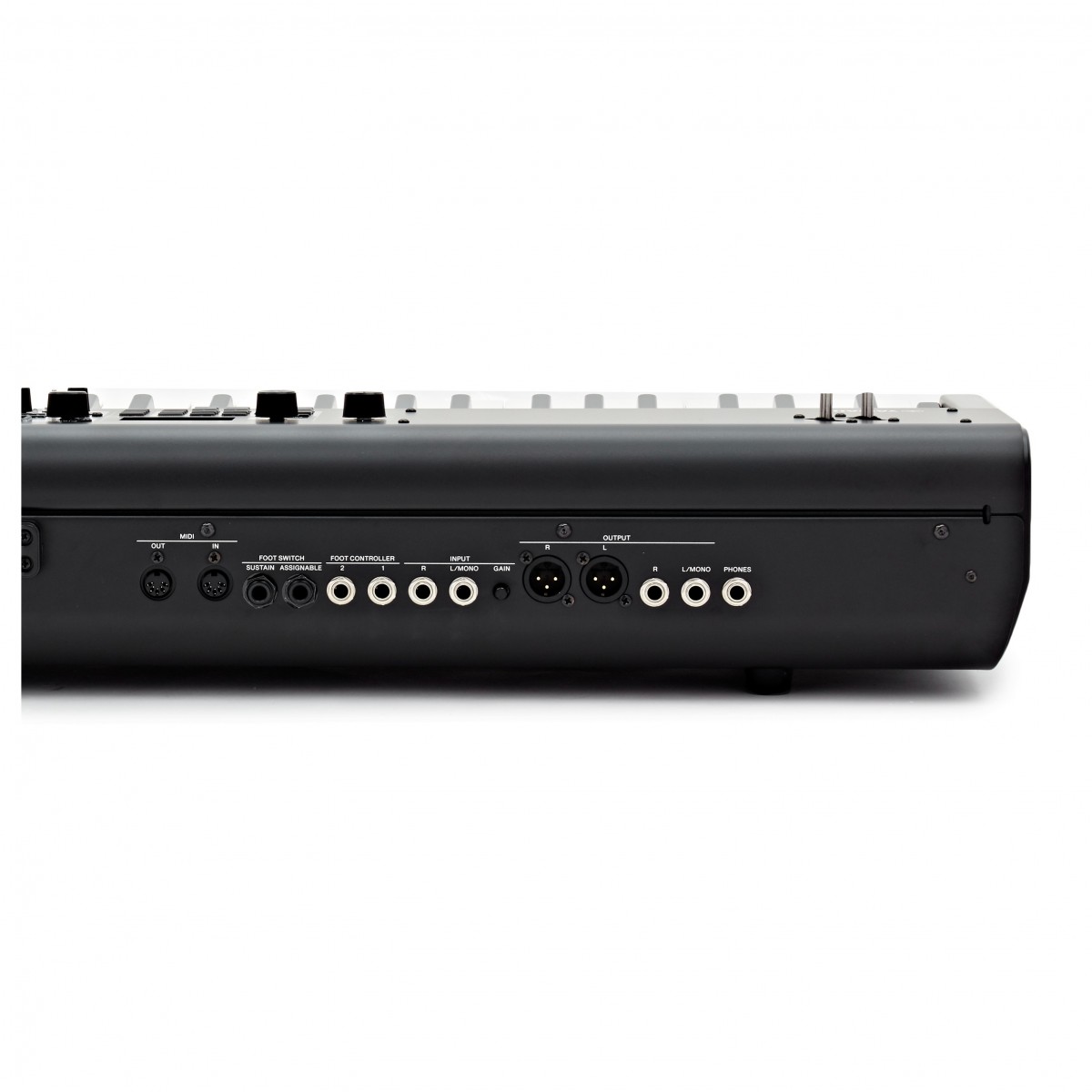

Fully equipped with a perfect set of connectors, the CP 88 is tailor-made for stage applications. Apart from the standard 6.3 mm (1/4 inch) jack outputs, the all-new CP 88 also features balanced XLR outputs for directly connecting the instruments to mixing desks or stage boxes. A stereo input via two 6.3 mm jacks enables the connection to additional sound sources like smartphones or another keyboard.

Featuring a finely tuned keyboard suitable for every performance, on any platform. The individual keys are carefully made with a springless design for the most consistent feel. While the lower register keys have more resistance that gradually becomes lighter. Serving you the natural touch and likeness of an acoustic piano. All thanks to the sensor sound receptors, the piano has the capacity to register the subtle nuances of your performance and relay them accurately to show your individual style.

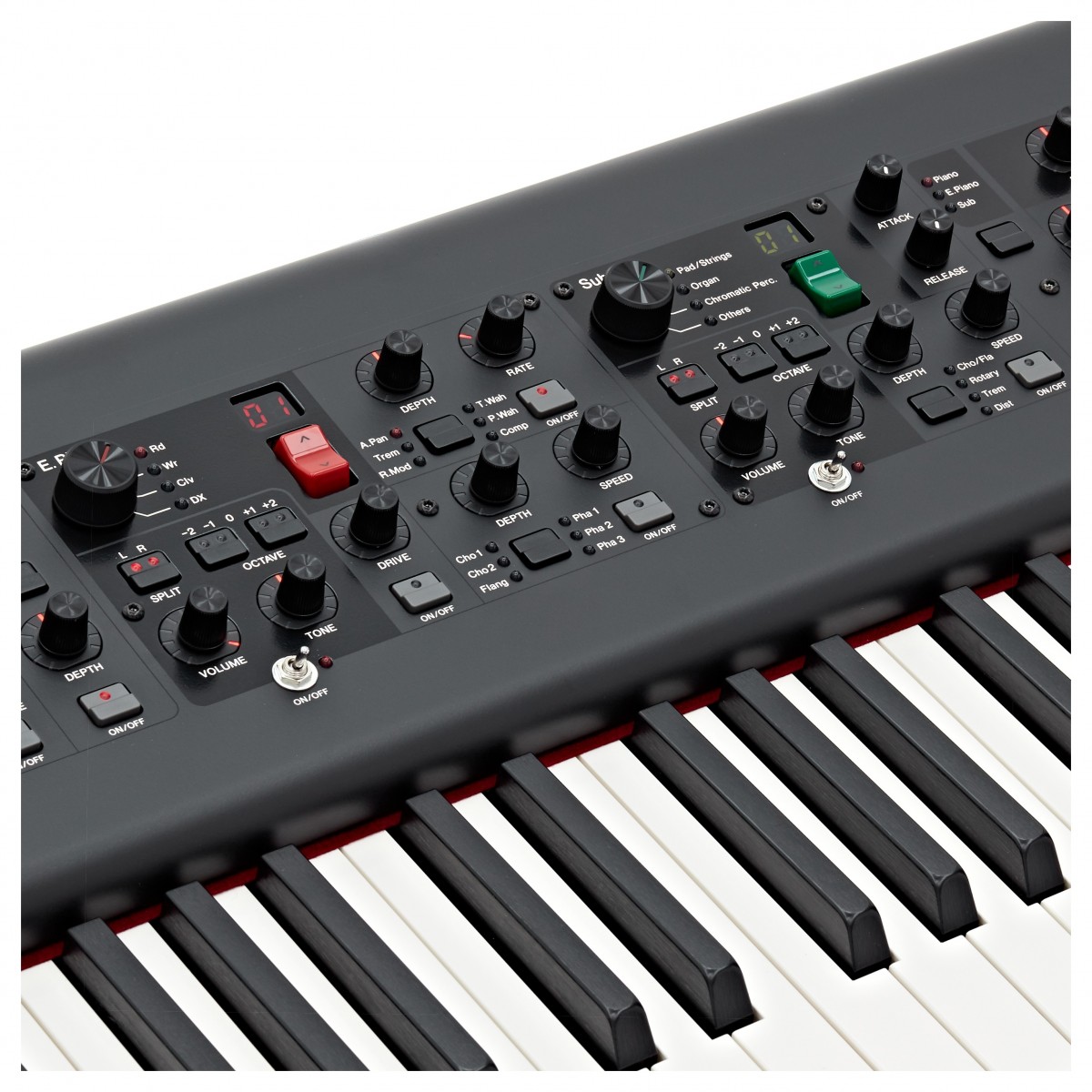

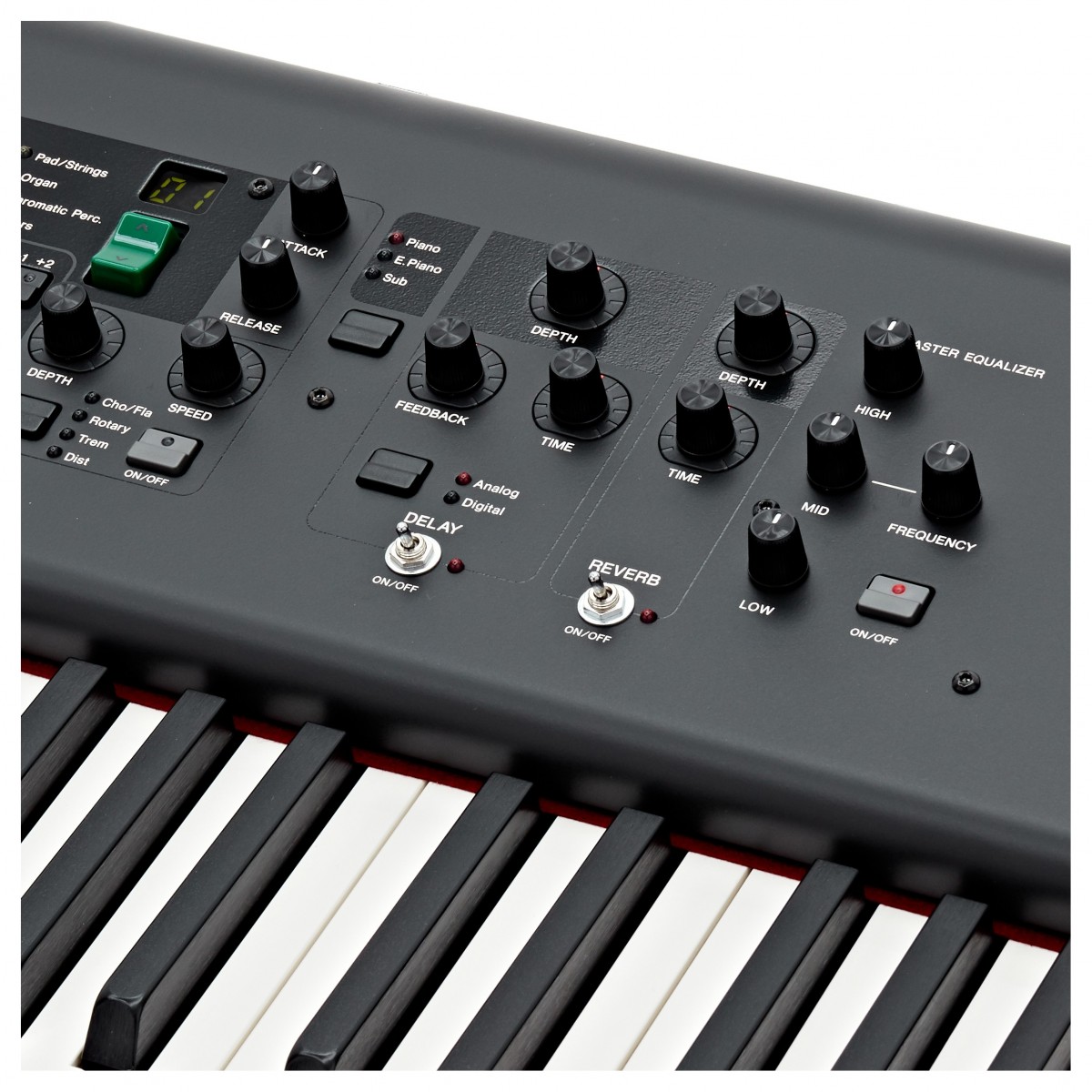

With the all-new Virtual Circuitry Modelling (VCM) your digital piano now has the capacity to re-create the sound and behaviour of vintage effects. And high-end studio signal processors. Simply, by modelling the circuits down to the original analogue component level. Explore a range of incredibly authentic sounds, all thanks to Yamaha’s innovative emulation technology.

Yamaha CP88 Digital Stage Piano Features:

Dimensions

• Width: 1,298 mm
• Height: 141 mm
• Depth: 364 mm
• Weight: 18.6 kg

Keys

• Number of Keys: 88
• Action: Graded Hammer Action 3
• Feel: Weighted

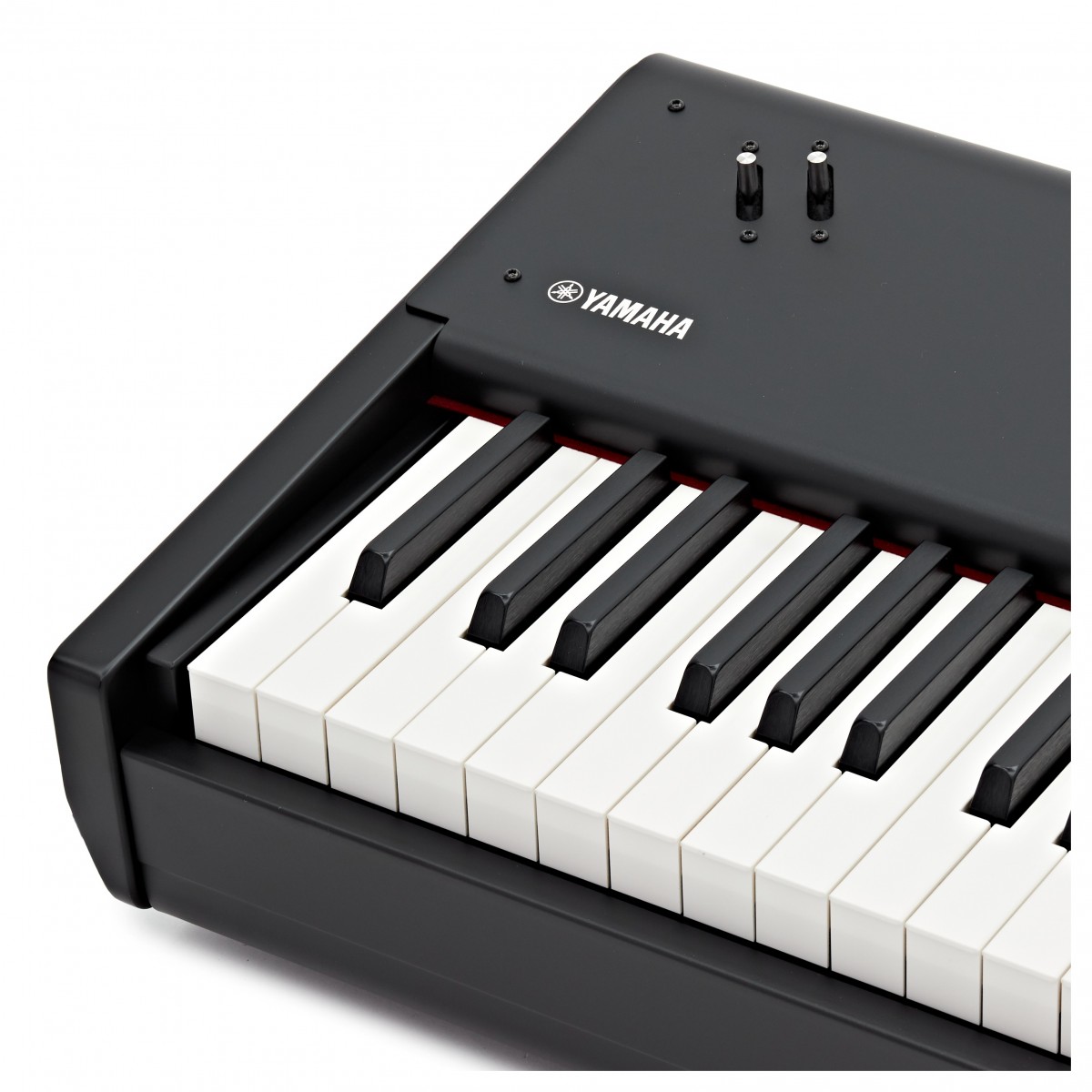

• Wheel Controls: Pitch Bend, Modulation
• Part Sliders: 2
• Master EQ Sliders: 3

Sounds & Effects

• Tone Generating Technology: Spectral Component Modeling, AWM2
• User Performances: 128 (64 x 2)
• Polyphony: 128
• Voices 57 Voices (10 Piano, 14 E-Piano, 33 Sub)
• Effects
  • Reverb: 11 Types
  • Master EQ: 3 Bands
  • Sounds: 160 Live-Set-Sounds (80 Presets)
  • Other Effects: 23 Insert Effects, 2 Delay Effects, Reverb

Connectivity

• Connectors: Output [L/MONO]/[R] 6,3 mm jack, Output [L/MONO]/[R] XLR
• Headphones: [PHONES] jack (stereo-phone)
• Foot Switch: [SUSTAIN] and [ASSIGNABLE] FOOT SWITCH jacks
• Foot Controller: 1 jack
• MIDI: [IN] and [OUT] MIDI terminals
• USB: [TO HOST] and [TO DEVICE] USB terminals

General

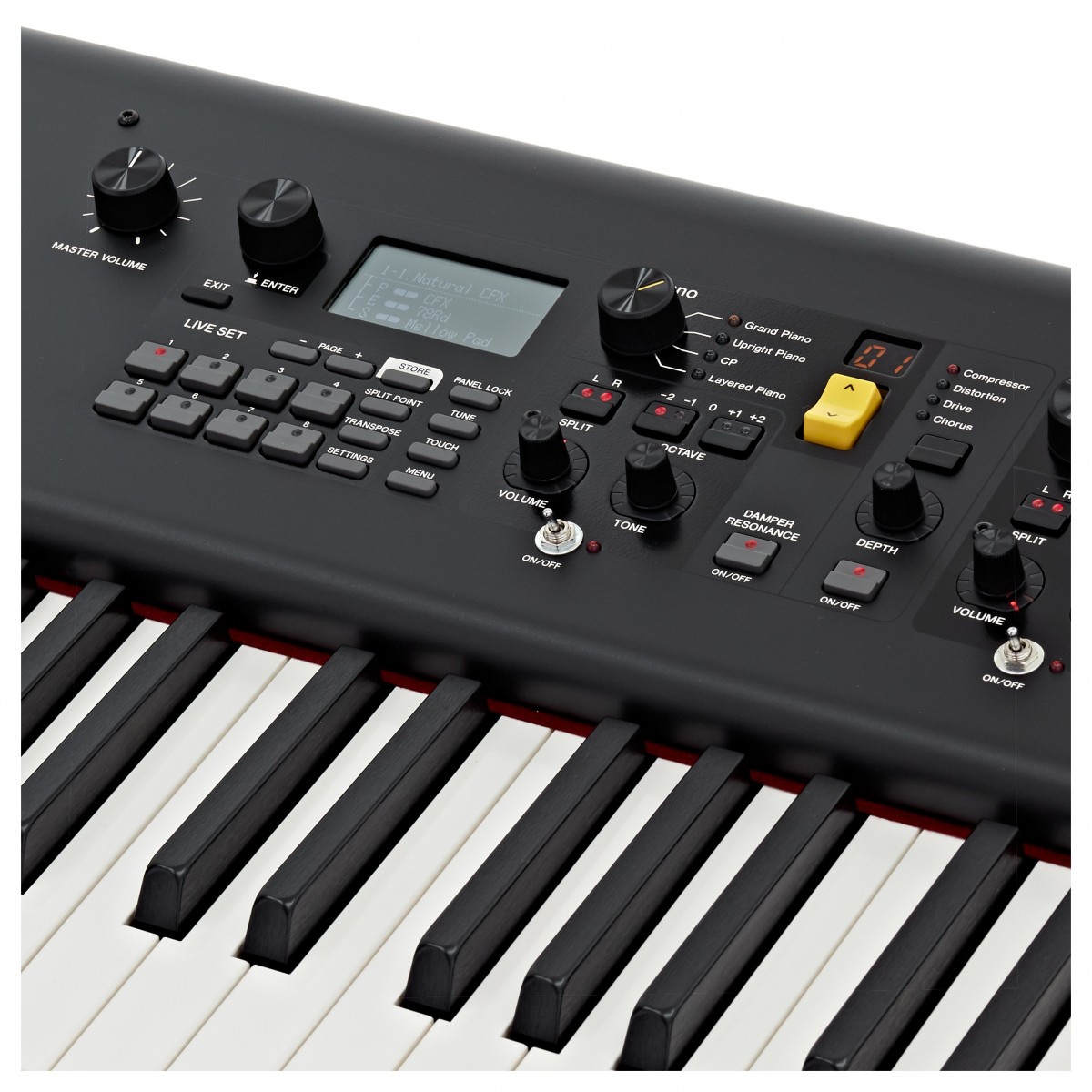

• Display: 40 Characters × 2 Lines
• Screen: LCD with Back-Light
• Power Consumption: 8W

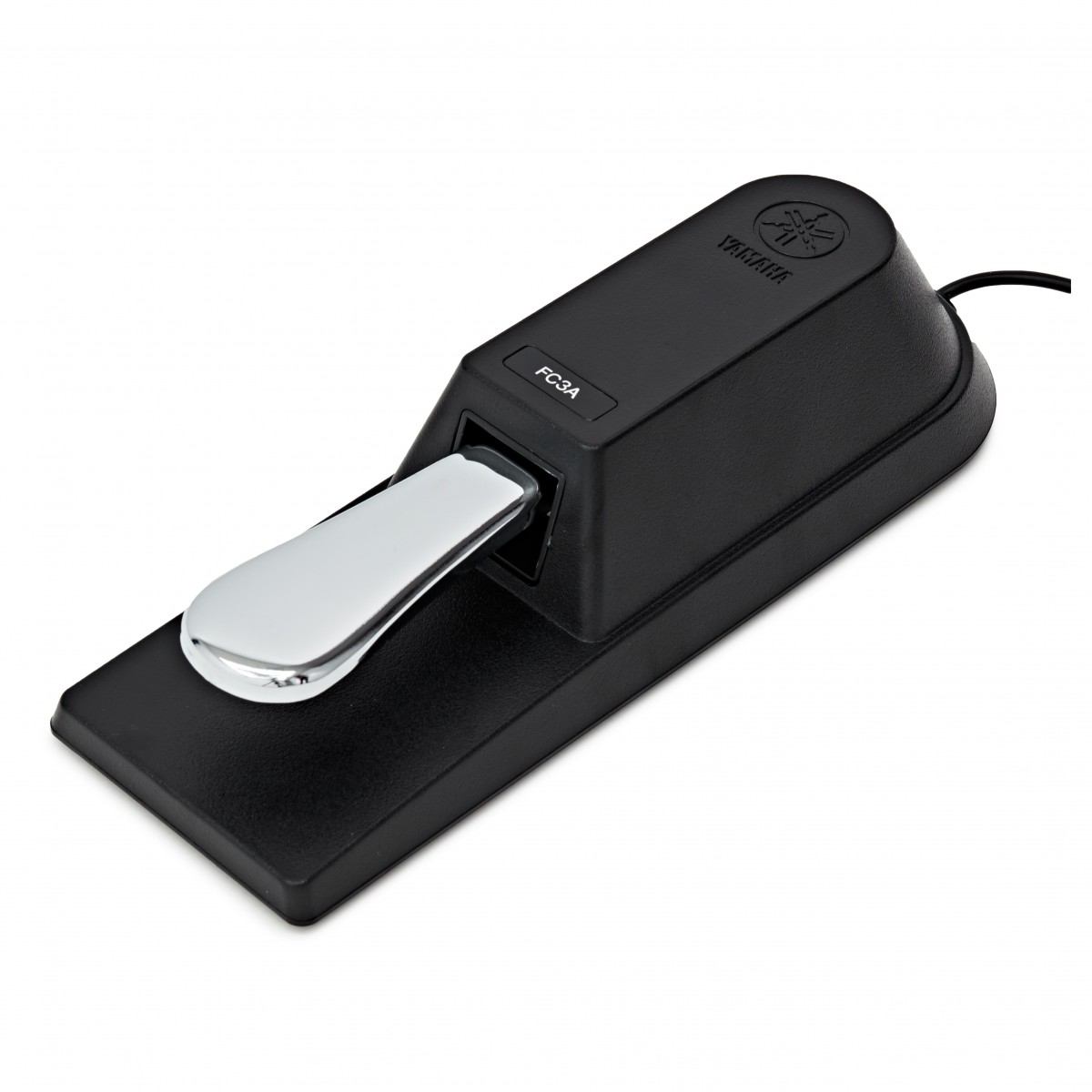

• Includes: PA-150 AC adaptor, FC3 Foot Pedal, Owner’s Manual, Online Manual CD
