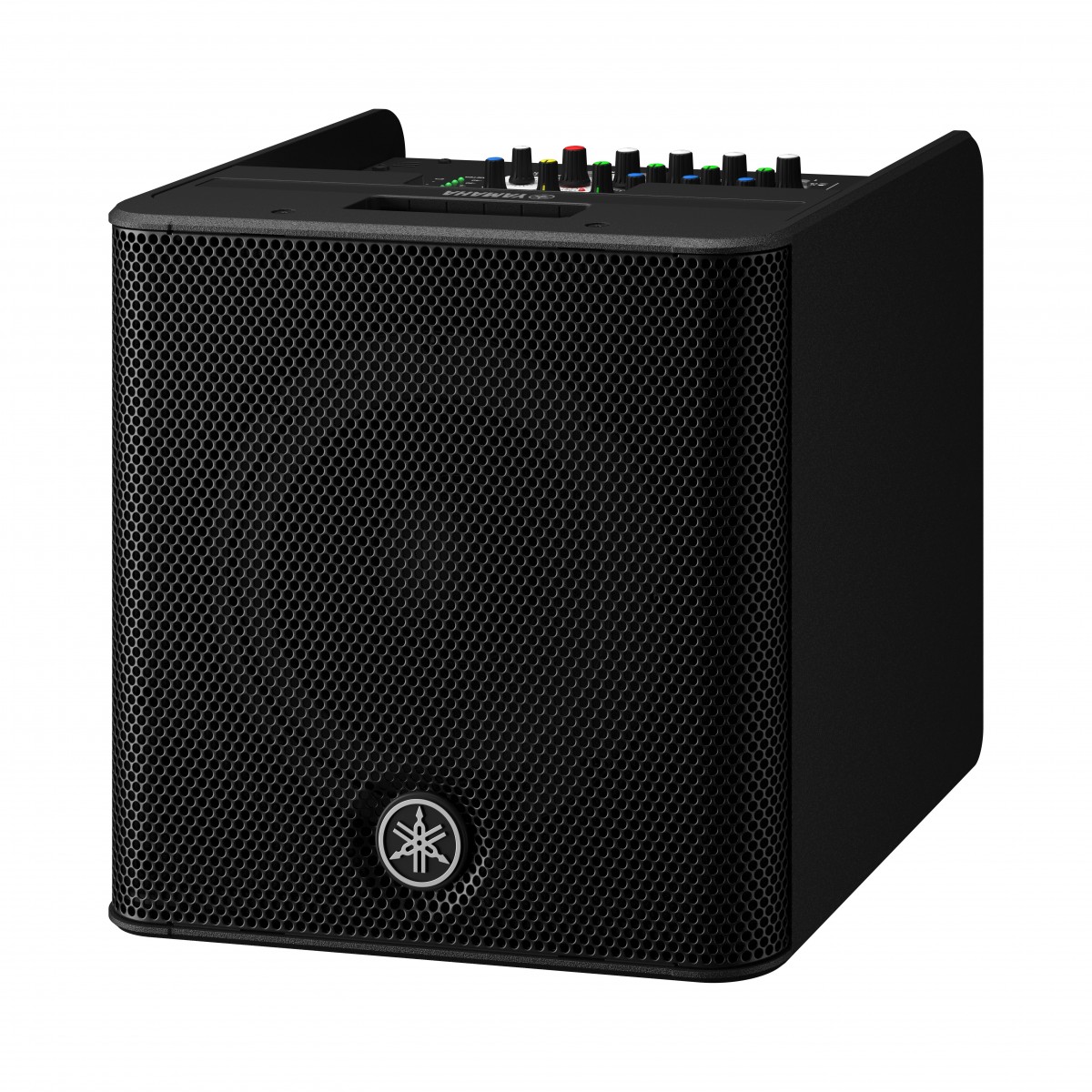

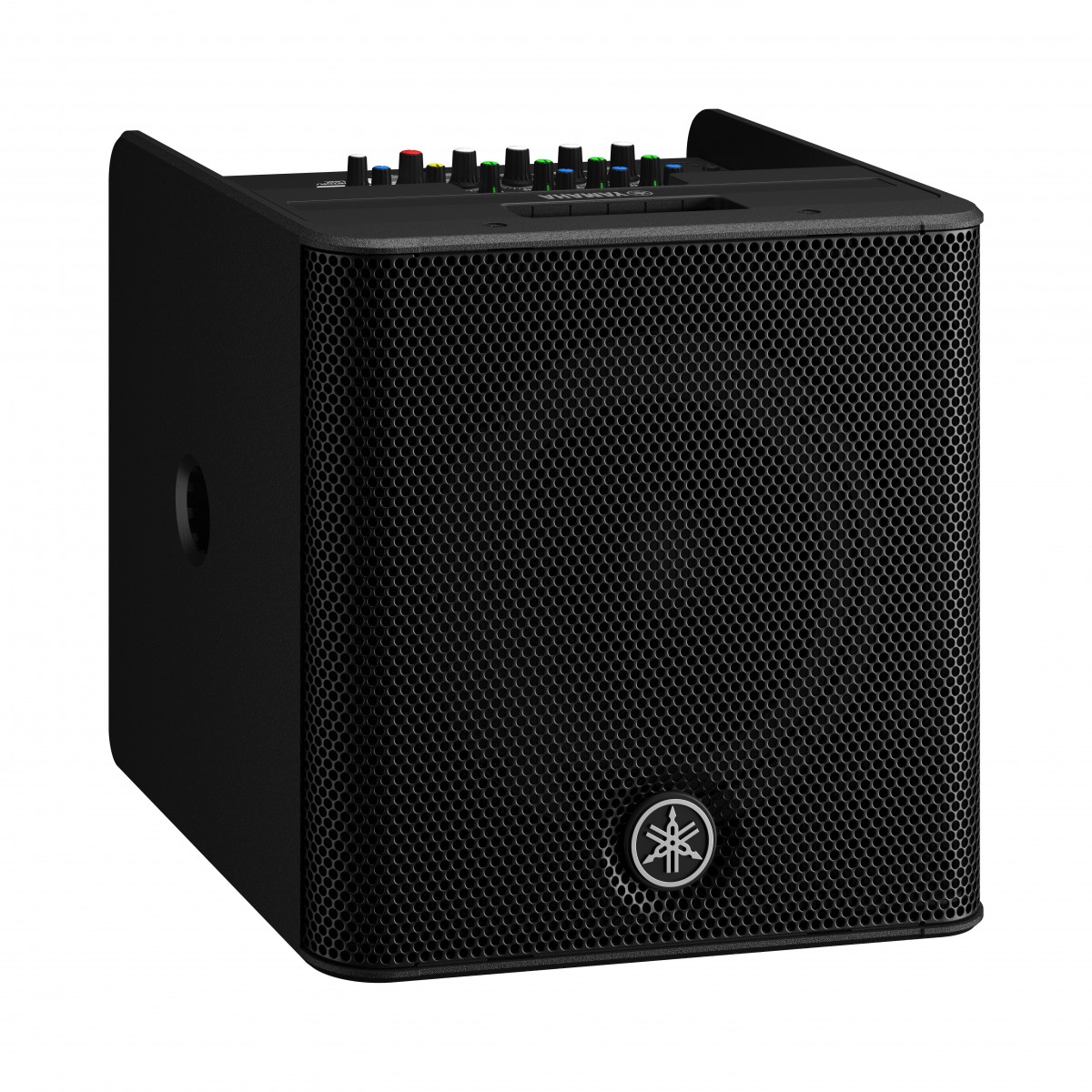

Yamaha Stagepas 200BTR Battery Powered Portable PA System

The Yamaha Stagepas 200BTR Battery-Powered Portable PA System is a compact, portable and battery-powered PA speaker. The first ever battery-powered PA system from Yamaha, the Stagepas 200 delivers a sound output that far outclasses its size, perfect for touring musicians, buskers, DJs, and entertainers. This speaker is well-suited to playing outdoors or in cafes, bars, schools, houses of worship, weddings, or even in use as monitor wedges on-stage.

The Stagepas 200’s coaxial driver features an 8-inch woofer and a compact but clear 1.4-inch tweeter, delivering a punchy sound output of up to 125 dB SPL. This speaker’s digital mixer features five channels with adjustable gain, for controlled and comprehensive connectivity. Three mono channels offer combi jacks for compatibility with both microphone or line-level sources. And the stereo channel provides a stereo line input or Bluetooth streaming for playing backing tracks or music to keep an audience entertained during events.

To further control your sounds, Yamaha has included a morphing EQ on all channels, with settings for microphones and line-level sources that you can blend to your taste. Effects like adjustable reverb, delay, chorus, and combinations of these, add depth and space to your sounds, while feedback suppression helps keep performances clean and clear. Multiband compression on the output mode dial, means music, speeches or DJ sets can come through clear, punchy, and well-defined. Yamaha have also made the Stagepas 200 wirelessly controllable via mobile app, so you can mix it on your smartphone or tablet, with the addition of a bonus 4-band parametric EQ.

The Stagepas 200 features the same great sound and quality build of its larger siblings, while adding the additional portability and flexibility offered by the the included rechargeable battery for up to 10 hours of use without the need for mains power. Extensively tested to ensure the reliability of its metal chassis and the internal circuitry and soldering, this portable PA speaker will stick by your side for a long time to come.

The Stagepas 200 may be compact, but its sound is anything but. Everything from its incredible 125 dB SPL sound output to the effects used to shape your sounds is designed to give you an excellent mix at an inviting price. The morphing EQ can blend in a vocal setting that cuts unwanted low-end and adds presence boost for a classic microphone sound, or an expertly-sculpted guitar EQ that makes space for the vocals while still delivering clarity and detail. Meanwhile, custom effects per channel can be set to reverb, reverb and delay, reverb and chorus, or reverb, chorus and delay at once, with adjustable reverb modes and decay times. Dial in everything from wide spacious halls, classic metallic plates, subtle rooms, or echo to achieve the mix you want.

In addition to its main inputs, the Stagepas 200 offers a monitor or link output that makes it great for covering wider outdoor spaces or to act as a monitor wedge for live music performances. The mixer and output sections even feature marked gain controls to achieve the ideal input and output levels for chaining units, making it easy to expand your speaker.

Yamaha Stagepas 200BTR Battery Powered Portable PA System Features:

• Compact portable PA speaker with battery compatibility
• Durable metal enclosure provides reliability

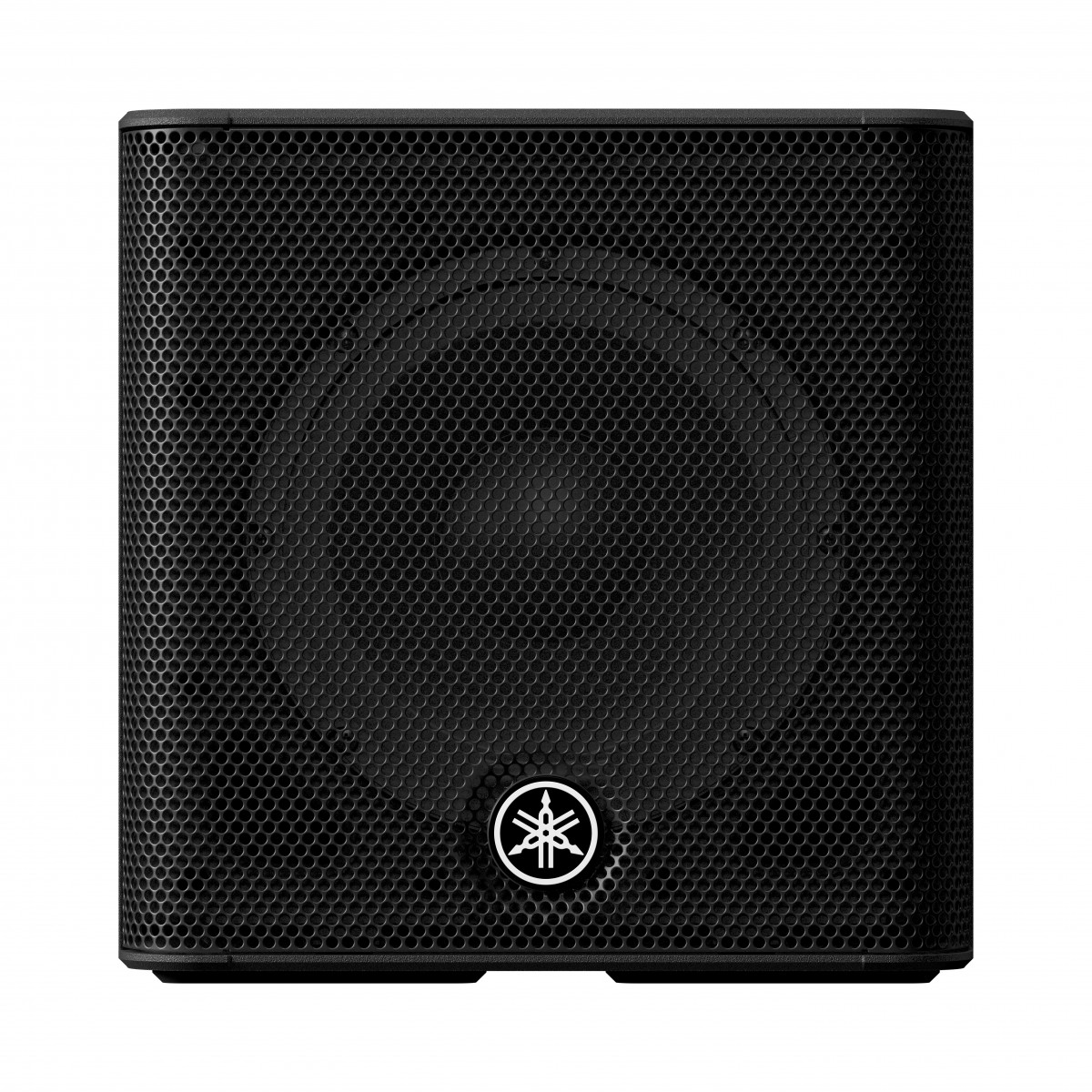

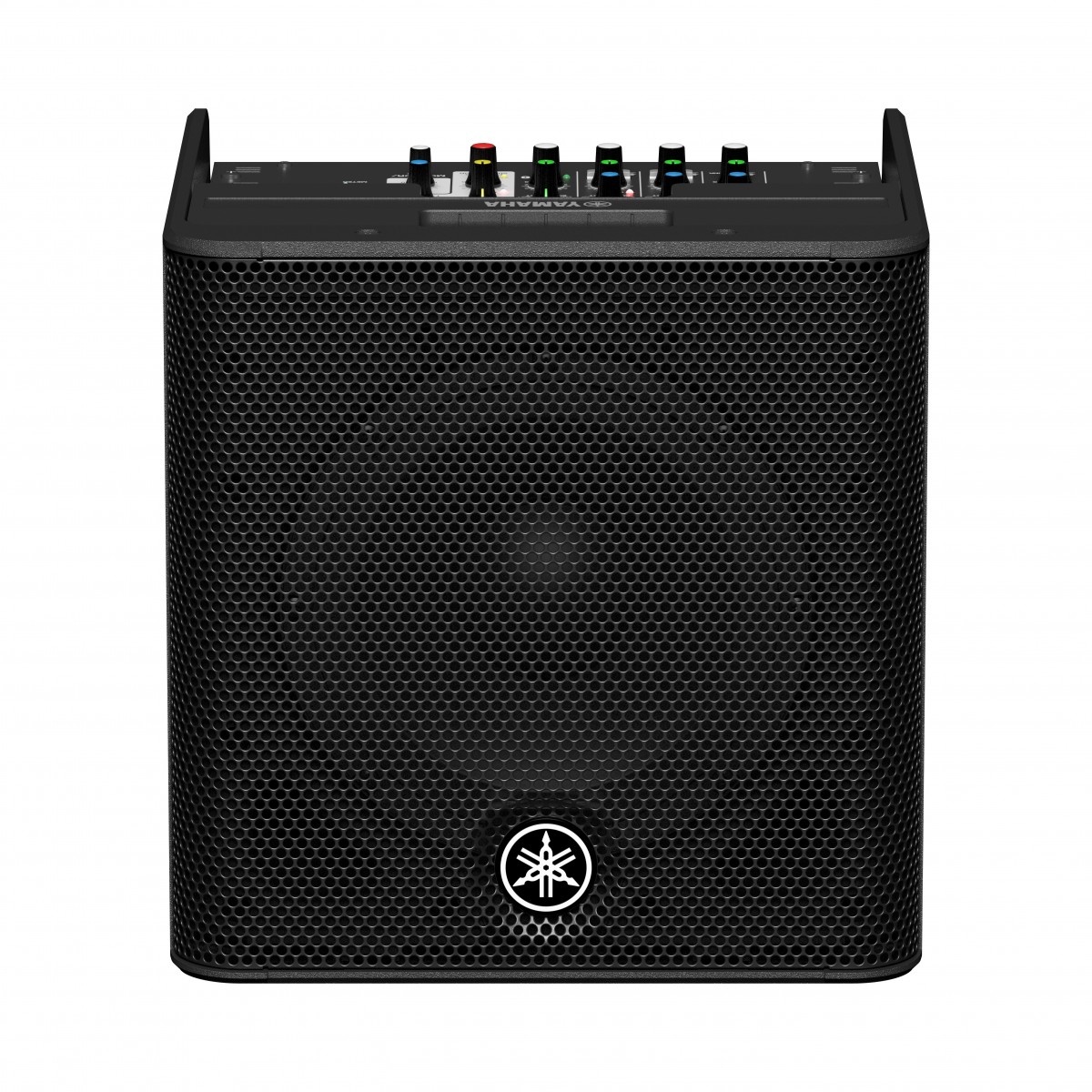

• Sturdy metal grille protects drivers
• Lightweight and portable yet tough
• Excellent build quality and extensive testing ensures internal circuitry stays functional
• Suitable for DJs, buskers, singer-songwriters, and venue owners
• Ideal for outdoor use or sound in smaller spaces like cafés, bars, schools, and houses of worship
• Dual coaxial driver provides 8-inch woofer and 1.4-inch tweeter while saving space
• Efficient 180 W Class D amplification offers lighter weight and reliable performance
• High sound output of up to 125 dB SPL leads the class in speakers of its size

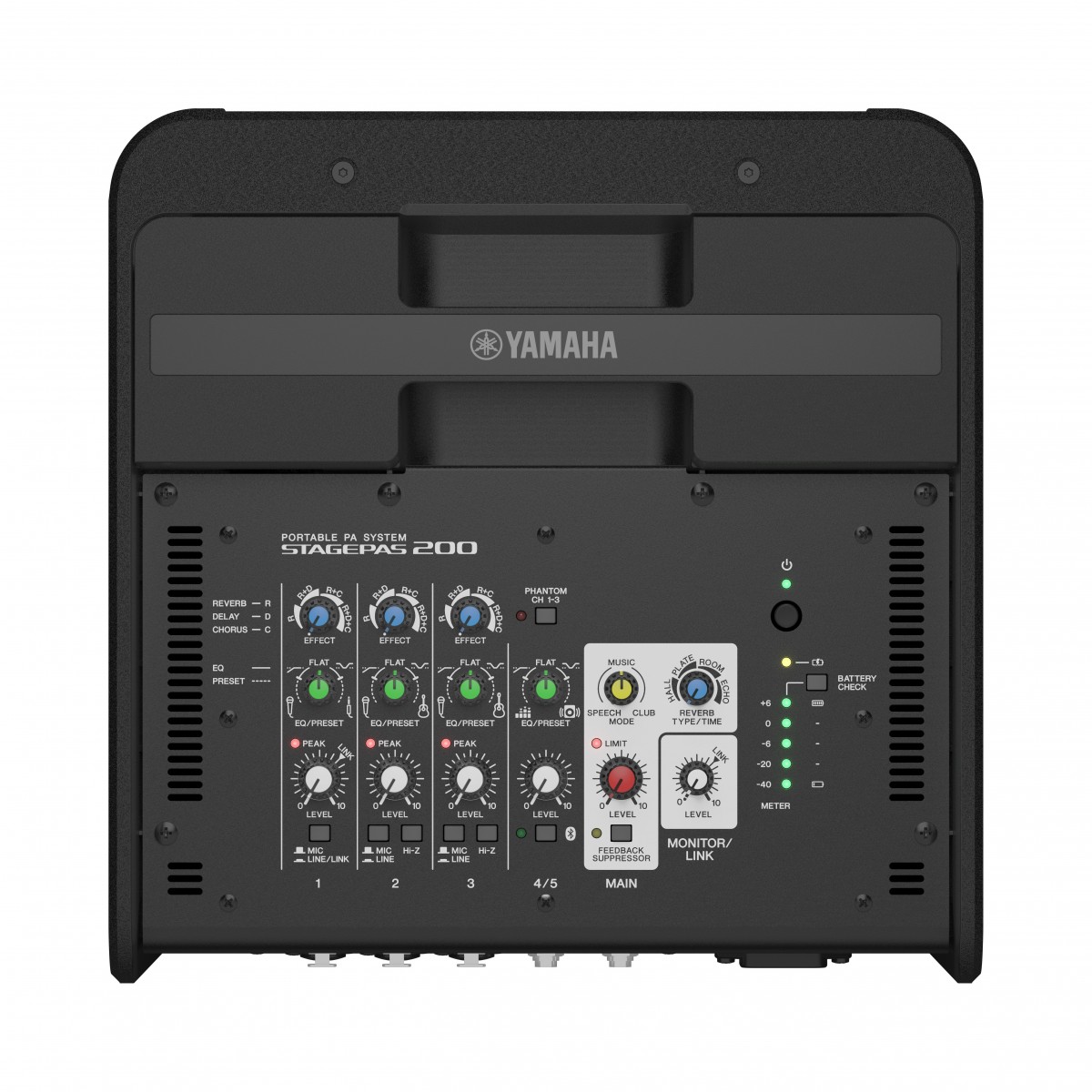

• Five-channel digital mixer provides three combi-jack inputs
• Hi-Z inputs on channels 2 and 3 compatible with electric guitars
• Switchable phantom power on channels 1 – 3 for use with condenser microphones
• Mic/Line switch on channels 1 – 3 for ideal input levels
• Stereo channels 4 and 5 for stereo line inputs
• Channels 4 and 5 also accept Bluetooth audio streaming on backing tracks or music playback
• Adjustable gain per channel for easy custom mixing
• Morphing EQ delivers switching between custom voicings for microphones, guitar, or line inputs
• Individual effects on each channel helps add space and depth to taste for every instrument
• Effects section offers multi-mode reverb to combine with delay and chorus effects in four different chains
• Reverb modes include hall, plate, room and echo for varying character and adjustable decay time
• Output mode multiband compression adds punch and presence with three modes: speech, music, and club
• Feedback suppression ensures clean and clear sound quality throughout events
• Link input on channel 1 for connecting multiple Stagepas 200 units for stage monitors
• Monitor/link output for further expandability
• Marked link sections on input and output gain controls display ideal levels when chaining
• Easy LED metering section shows volume output and battery status
• IEC mains input for easy powering when not in use with battery
• Rechargeable lithium-ion battery (sold separately) offers 10 hours of life and can be retrofitted to unit at any time
• Wireless app control offers full adjustment of on-board parameters as well as additional 4-band parametric EQ

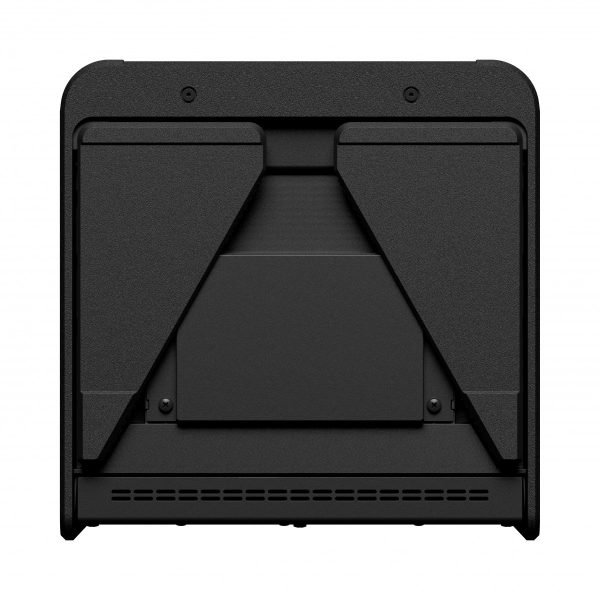

• Rubber feet built into bottom of unit either protect floors or allow angled setup for improved coverage

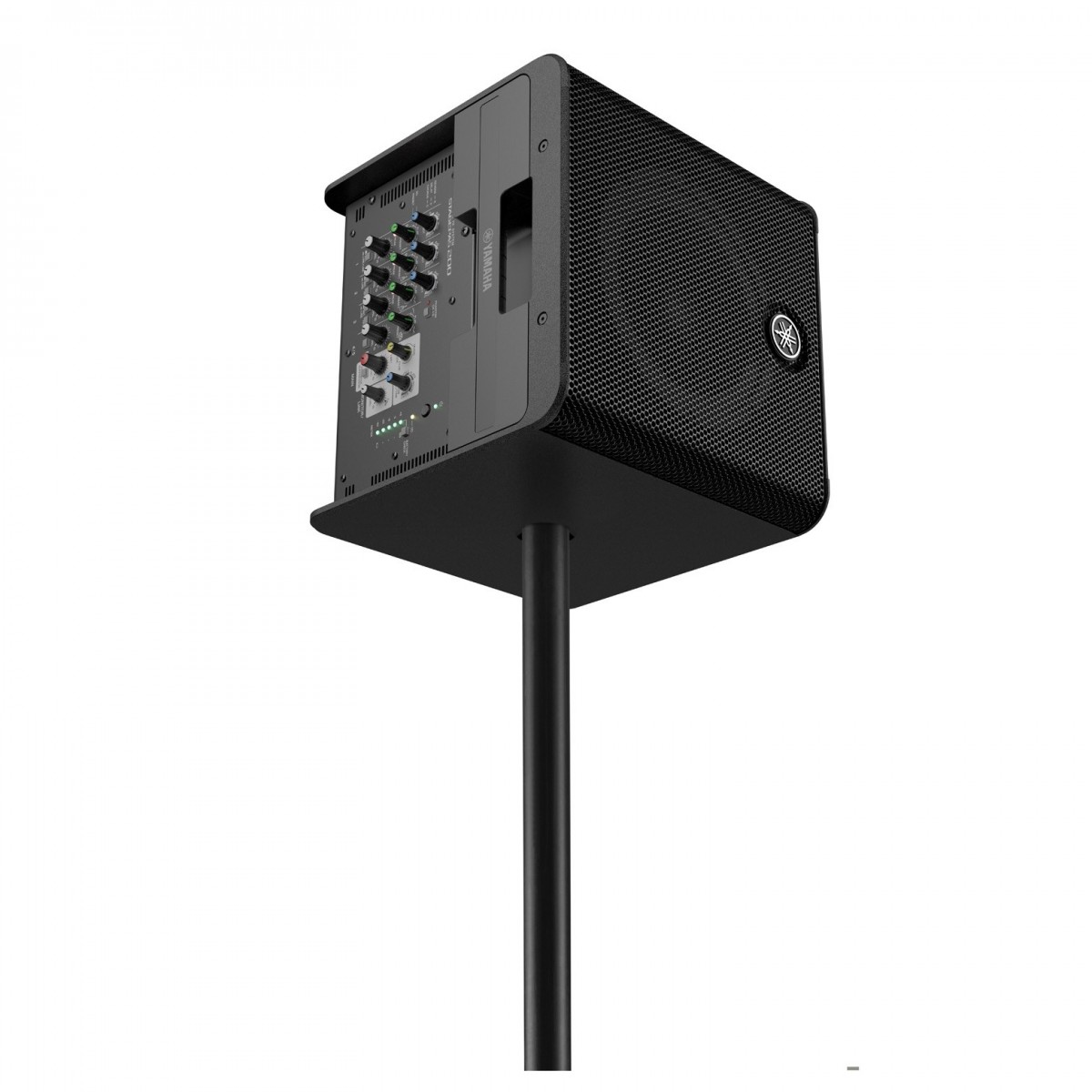

• Side-based pole mount saves space while offering compatibility with speaker stands

Yamaha Stagepas 200BTR Battery Powered Portable PA System Specifications:

• System Type: 2-way, bi-amplified powered speaker + mixer
• Frequency Range (-10 dB): 60 Hz – 20 kHz
• Coverage Angle (Horizontal x Vertical): 90° x 90°
• Crossover: 2.0 kHz, 24 dB/Oct slope
• Measured Maximum SPL (Peak): 125 dB SPL, IEC noise @ 1 m
• Power Requirements: 100 V – 240 V, 50/60 Hz
• Power Consumption: 10 W (idle), 20 W (1/8 power)
• Dimensions (W x H x D): 300 x 307.5 x 301 mm
• Weight: 12.0 kg (main unit only)
• Speaker Unit Type: Coaxial speaker and compression driver
• LF Driver: 8″ cone, 2.0″ voice coil
• HF Driver: 1″ throat compression driver, 1.4″ voice coil
• Speaker Magnet: Ferrite (LF, HF)
• Body Material: ABS (black)

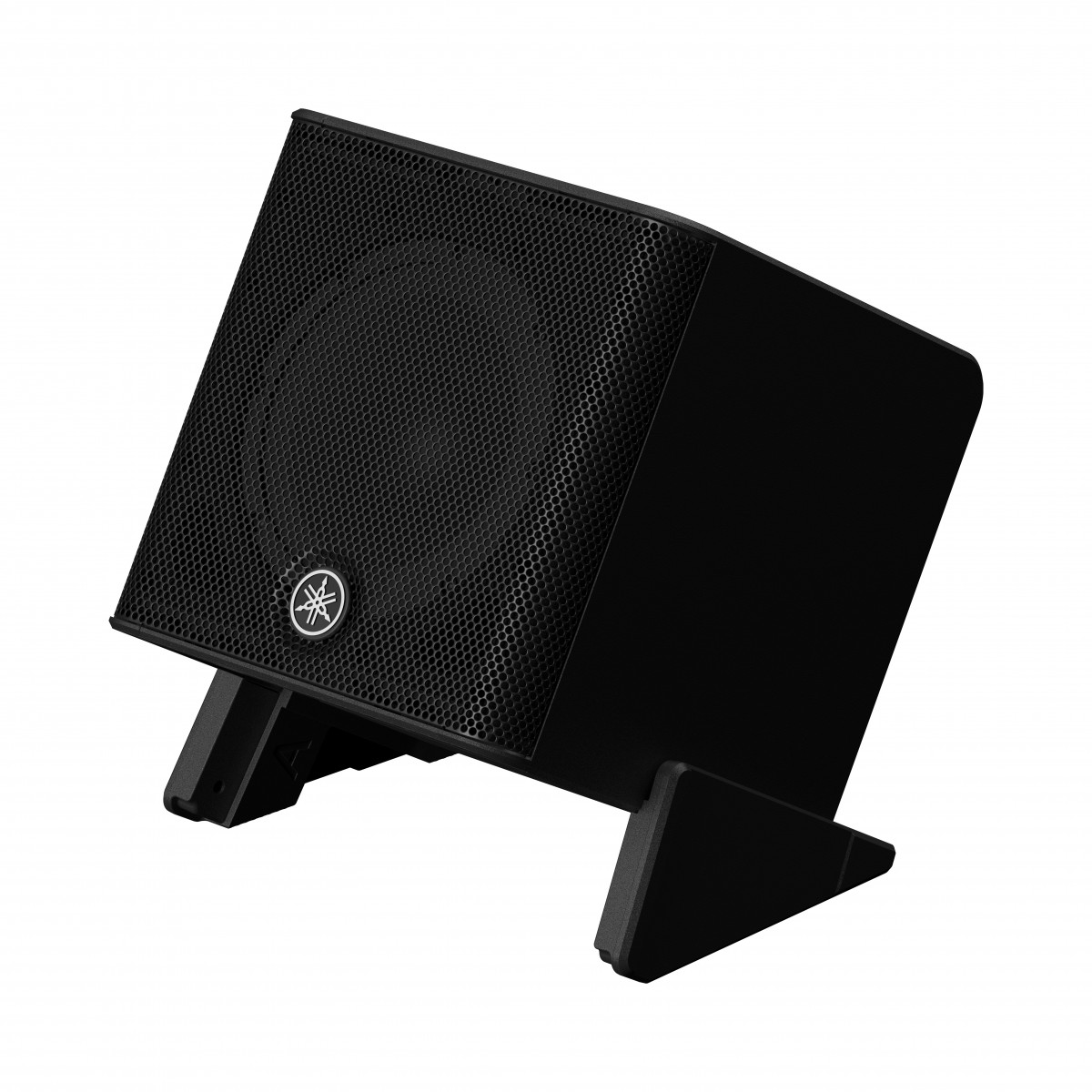

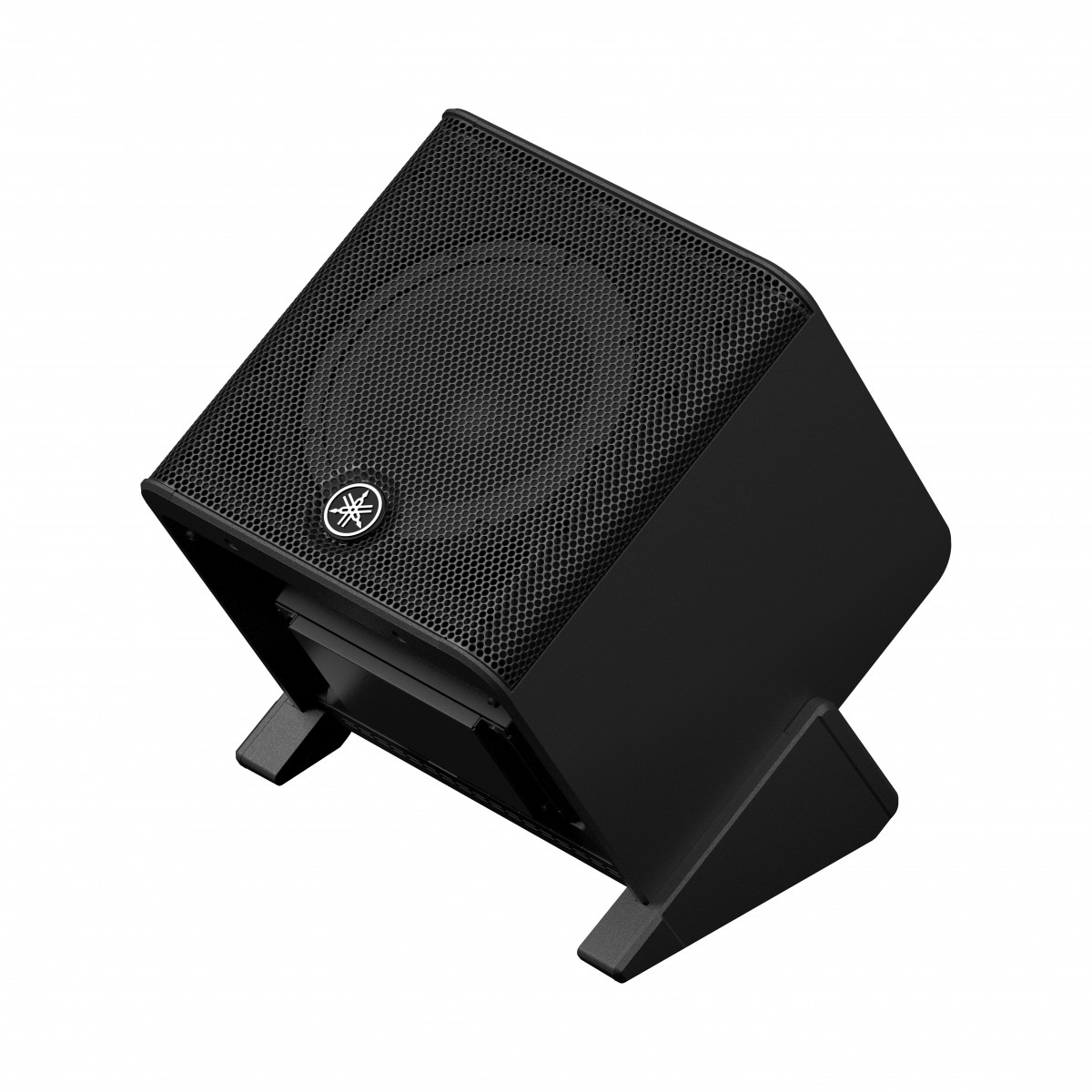

• Floor Monitor Angle: 30° or 60°
• Grille: Matte black powder-coated perforated steel grille
• Handle: 1 x top panel
• Mixing Channels: 5

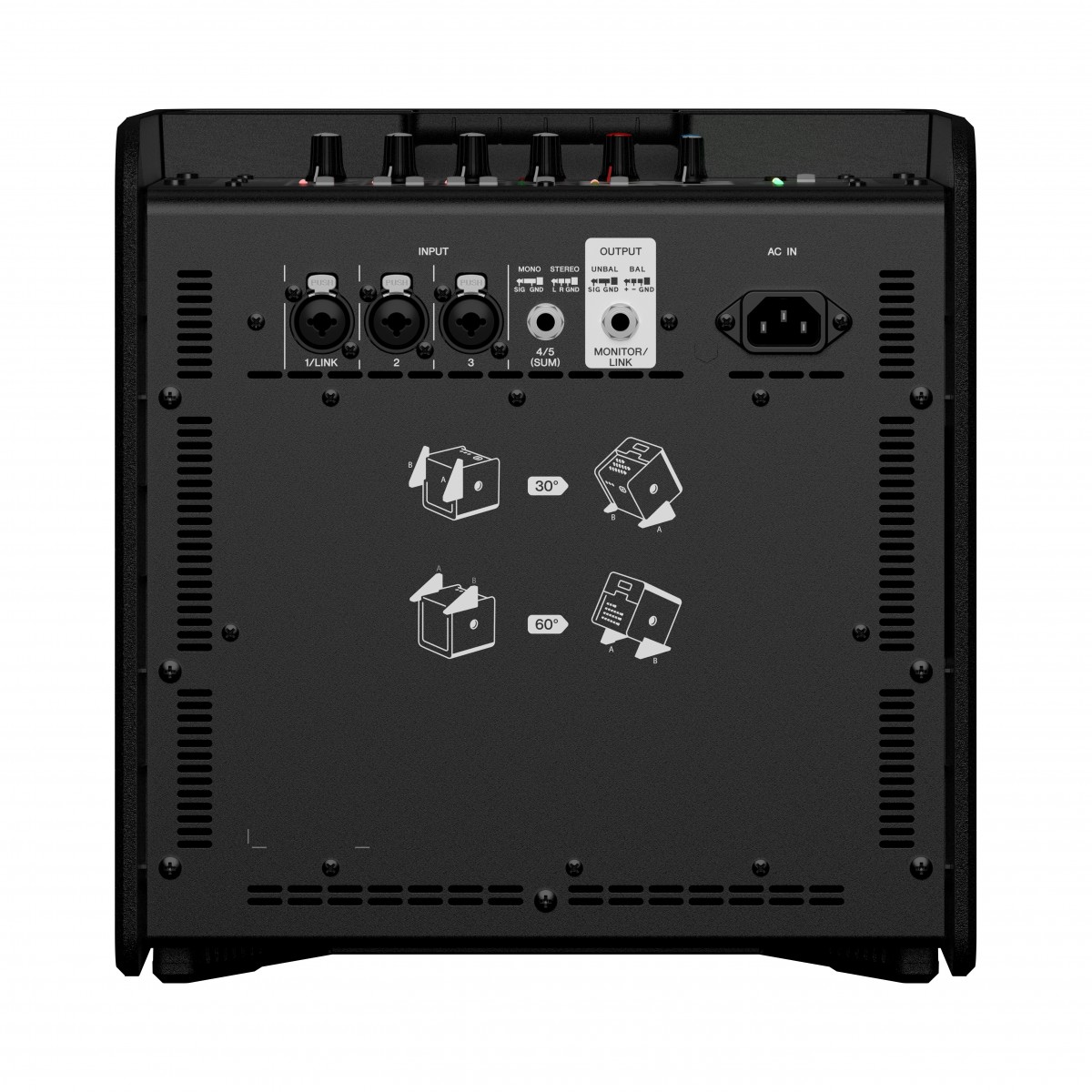

• Analog Inputs: 3 x Mono Mic/Line, 1 x Stereo Line
• Bluetooth Audio: A2DP (SBC, AAC), ver 5.0, Class 1
• Content Protection Method: SCMS-T
• Transmission Frequencies: 2,402 – 2,480 MHz
• Maximum Wireless Output Power (EIRP): 15 dB, (32 mW)
• Power Amplifier: Class D
• Power Rating (Dynamic): 180 W (LF: 150 W, HF: 30 W)
• Power Rating (Continuous): 100 W (LF: 90 W, HF: 10 W)
• Cooling Method: Natural convection (no cooling fan)
• AD/DA Conversion: 24-bit 48 kHz sampling

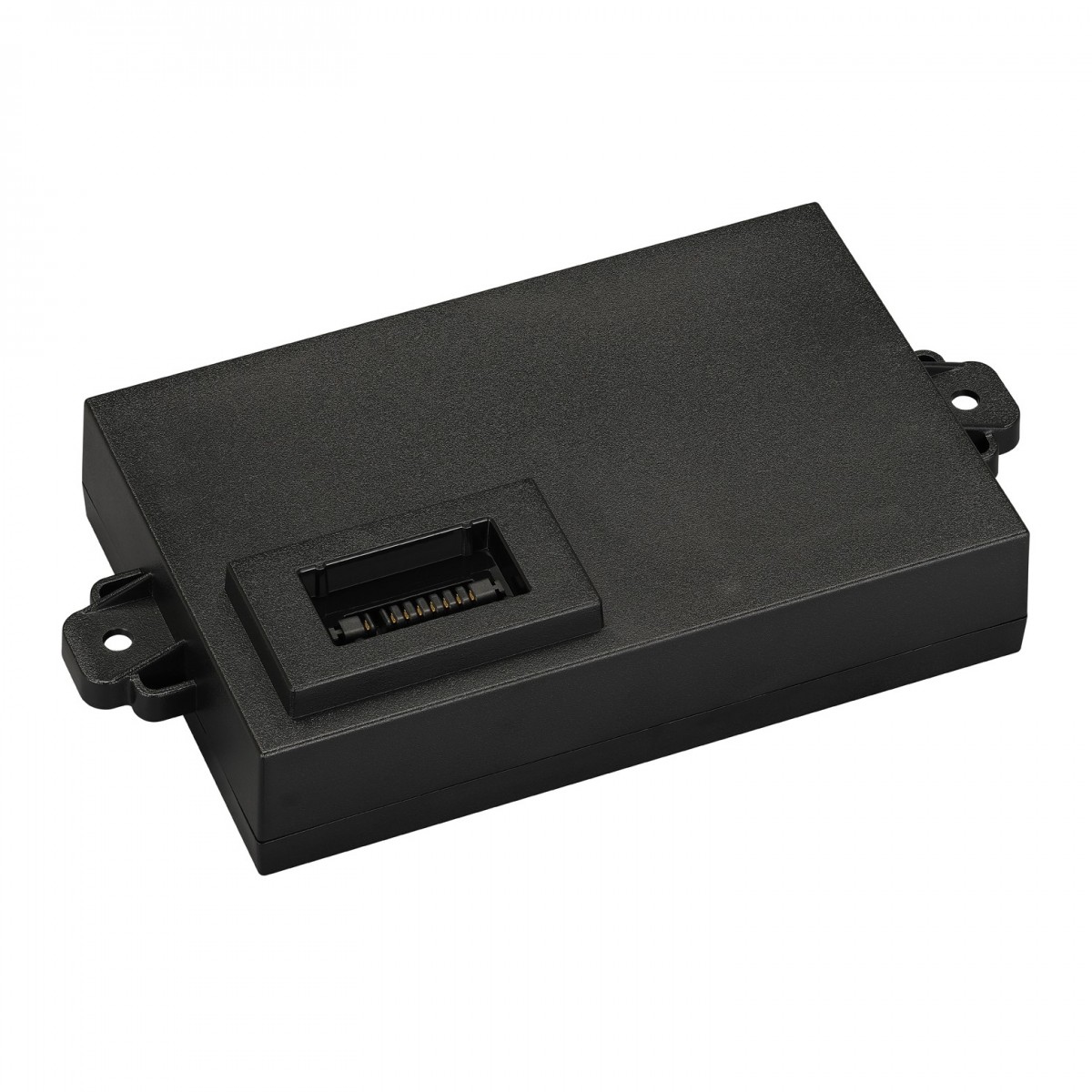

• Battery Type: Rechargeable lithium ion battery pack
• Battery Weight: 530 g (39 lbs)
• Battery Dimensions: 186 x 96 x 39 mm
• Battery Capacity: 79.92 Wh (2700 mAh, 29.6 V)
• Battery Operating Time: Maximum 10 hours, 1/16 power continuous 8 hours
• Battery Charging Time: Approx. 4 hours
• Battery Operating Temperature: 0 – 40°C
• Battery Charging Temperature: 5 – 40°C
