Description

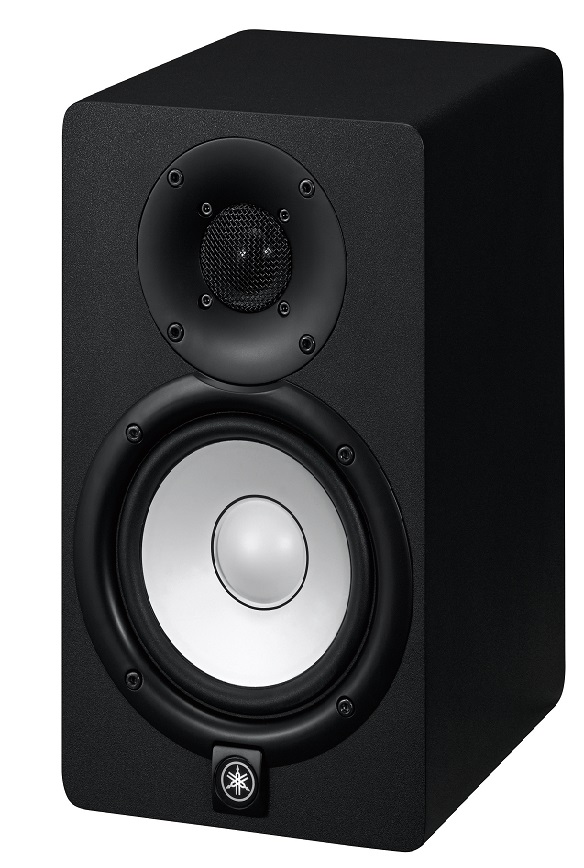

The Yamaha HS5 Monitor Speaker offers a compact solution where space is an issue, but clarity and precision monitoring are still a priority. Perfect for producers, musicians, media/movie composers through to educators and touring companies.

By combining acquired knowledge and expertise with state-of-the-art sound technologies, Yamaha’s speaker engineering team have examined, then optimized, every aspect that has contributed to making these monitors the most trusted in the business. The second generation Yamaha HS5 Monitor Speaker Series also adds to the lineup, bringing its exceptional accuracy to an even greater variety of recording environments.

High-performance drivers and mounting system

The drivers used in the HS series monitors deliver superb audio performance that is considerably enhanced by a sophisticated mounting system. A scientific arrangement of screws and a specially designed mounting ring eliminate unwanted vibration and resonance, letting the speaker realize its full sonic potential without distortion or coloration. Yamaha selects their magnets to optimize solid low-end response. Tweeter frames use an advanced smooth-contour design that minimizes losses, letting you hear high-frequency details with stunning accuracy. The extra-thick tweeter frame also diminishes resonance that can interfere with treble clarity. The bottom line? Smooth, accurate response throughout the audio spectrum. And that translates to better-sounding recordings for you.

Beefy magnets and an advanced magnetic circuit design

HS series monitors rock extra-large magnets. Why is this important? Glad you asked! In concert with the HS5’s advanced magnetic circuit design, these beefy magnets deliver a robust, uniform, and tightly controlled flux field that yields exceedingly smooth response and dynamic efficiency over a wider frequency range.

Optimum response in any room

HS series monitors deliver outstanding monitoring performance, enabling you to get your mixes just right. Even better, you can take your accurate monitoring on the road. The HS5 boasts Room Control and High Trim response controls that let you tailor your monitors to your room for optimal response. So whether you’re in a control room or in a cramped remote truck, you’ll always be able to trust your monitoring.

Yamaha HS5 Monitor Speaker Features:

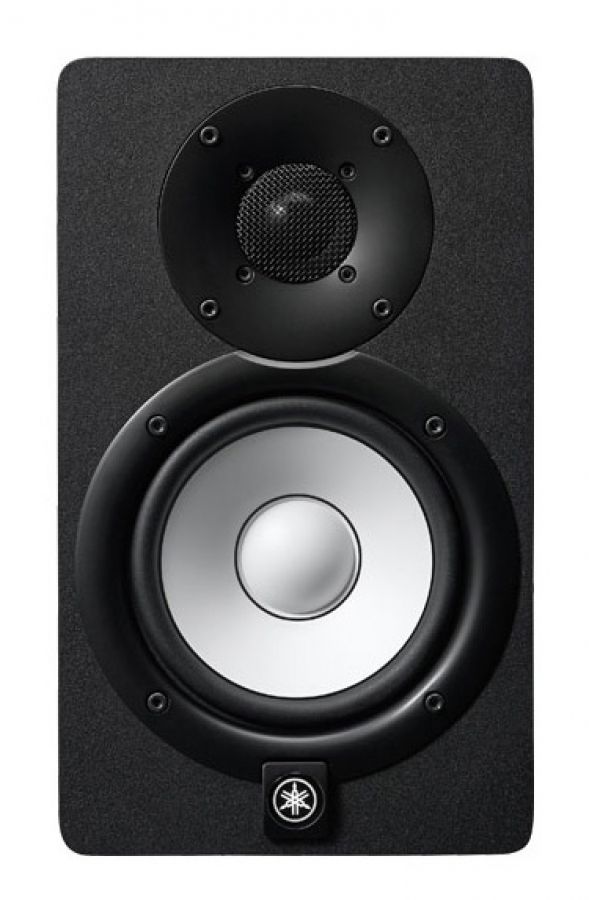

• 2-way bass-reflex bi-amplified nearfield studio monitor with 5″ cone woofer and 1″ dome tweeter
• 54Hz – 30kHz frequency response
• 45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
• ROOM CONTROL and HIGH TRIM response controls
• XLR and TRS phone jack inputs accept balanced or unbalanced signals

Yamaha HS5 Monitor Speaker Specifications:

• Speaker type 2-way bi-amp powered studio monitor
• Frequency range (-10dB) 54Hz – 30kHz
• Components
  LF 5″ cone
  HF 1″ dome
• Crossover 2kHz
• Output power 70W (LF:45W, HF:25W)
• I/O connectors XLR3-31 type (balanced), PHONE (balanced)
• Power consumption 45W
• Shape Bass-reflex typE
• Cabinet material MDF
• Dimensions
  W 170mm (6.7″)
  H 285mm (11.2″)
  D 222mm (8.7″)
• Net weight 5.3kg (11.7 lbs.)

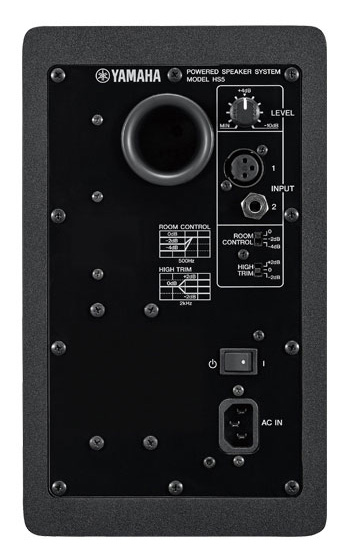

• Others LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)

Rishon Reid – “With a balanced, un-coloured sound, the Yamaha HS Monitor Speaker Range provides an excellent platform for accurate, high quality mixing at a price point to suit a variety of needs.”
