Description

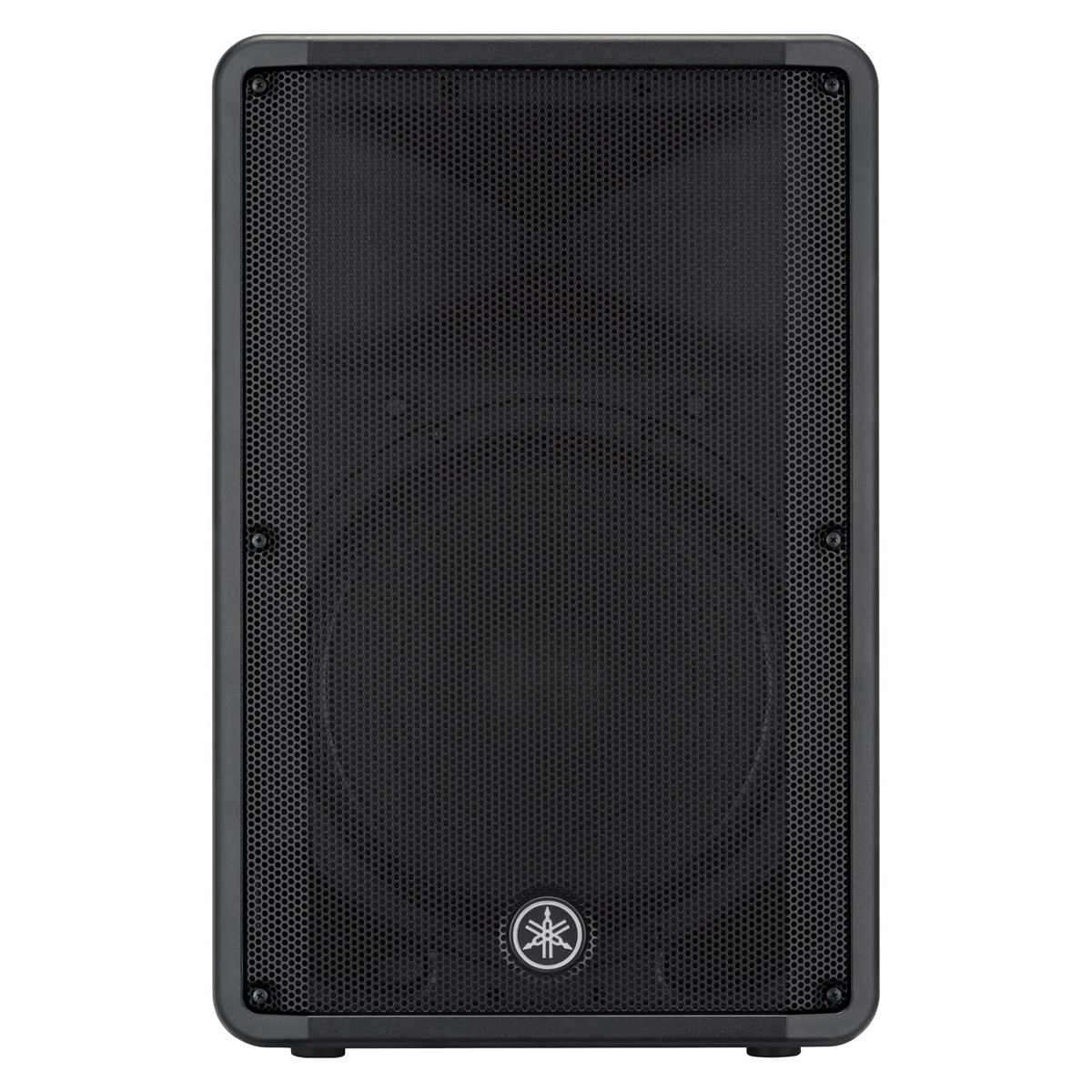

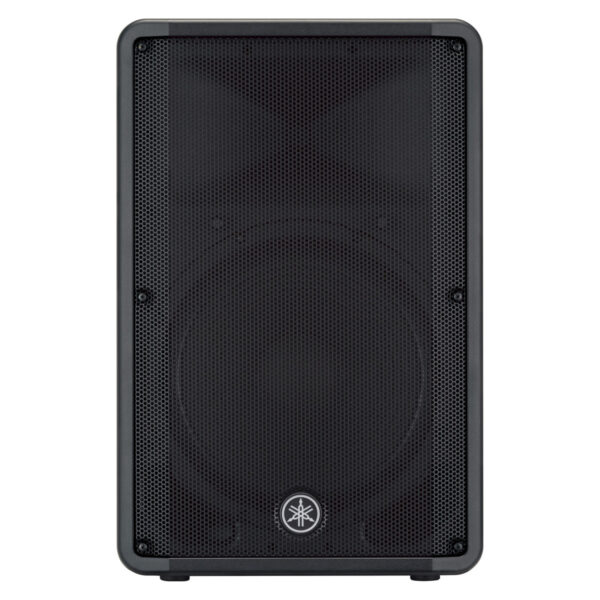

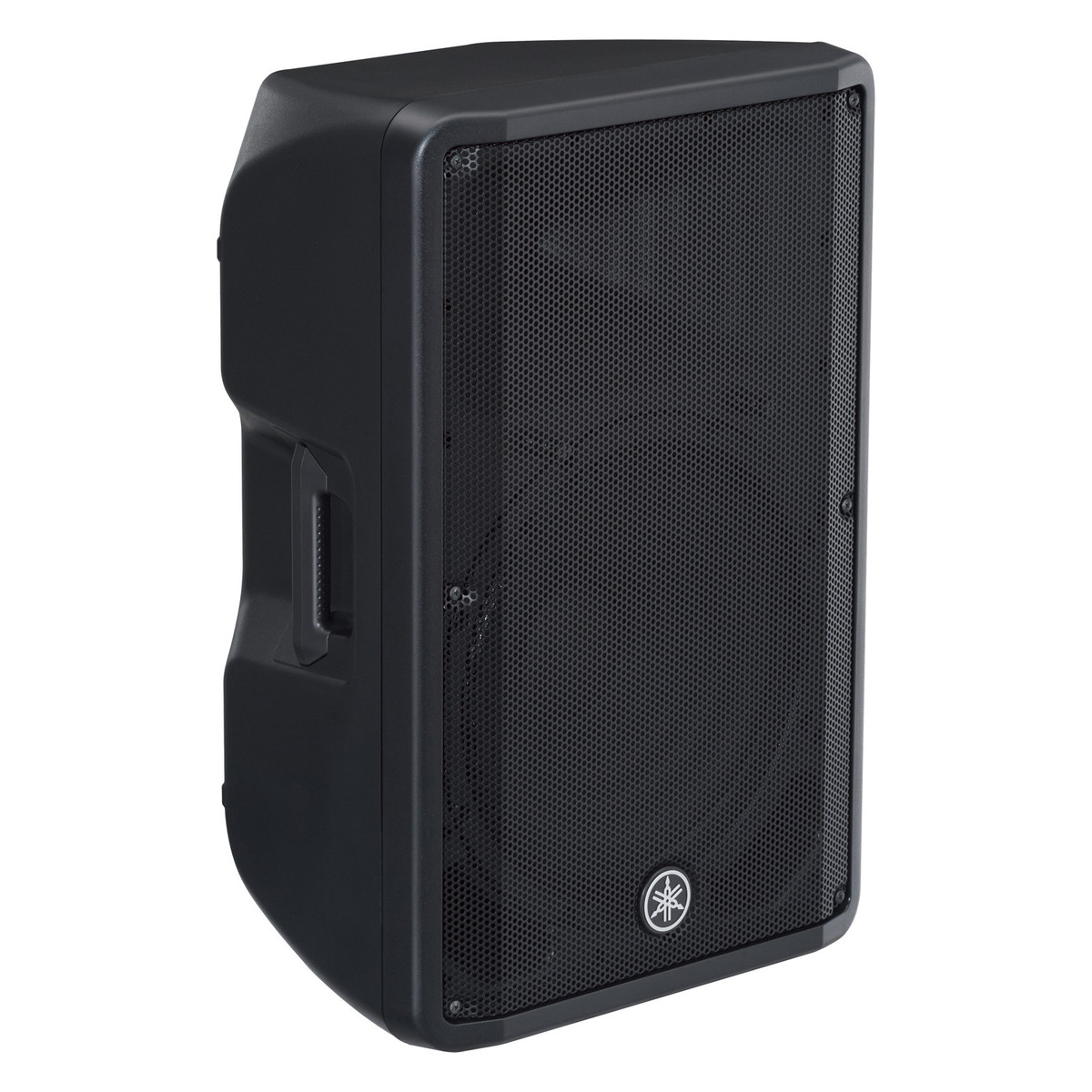

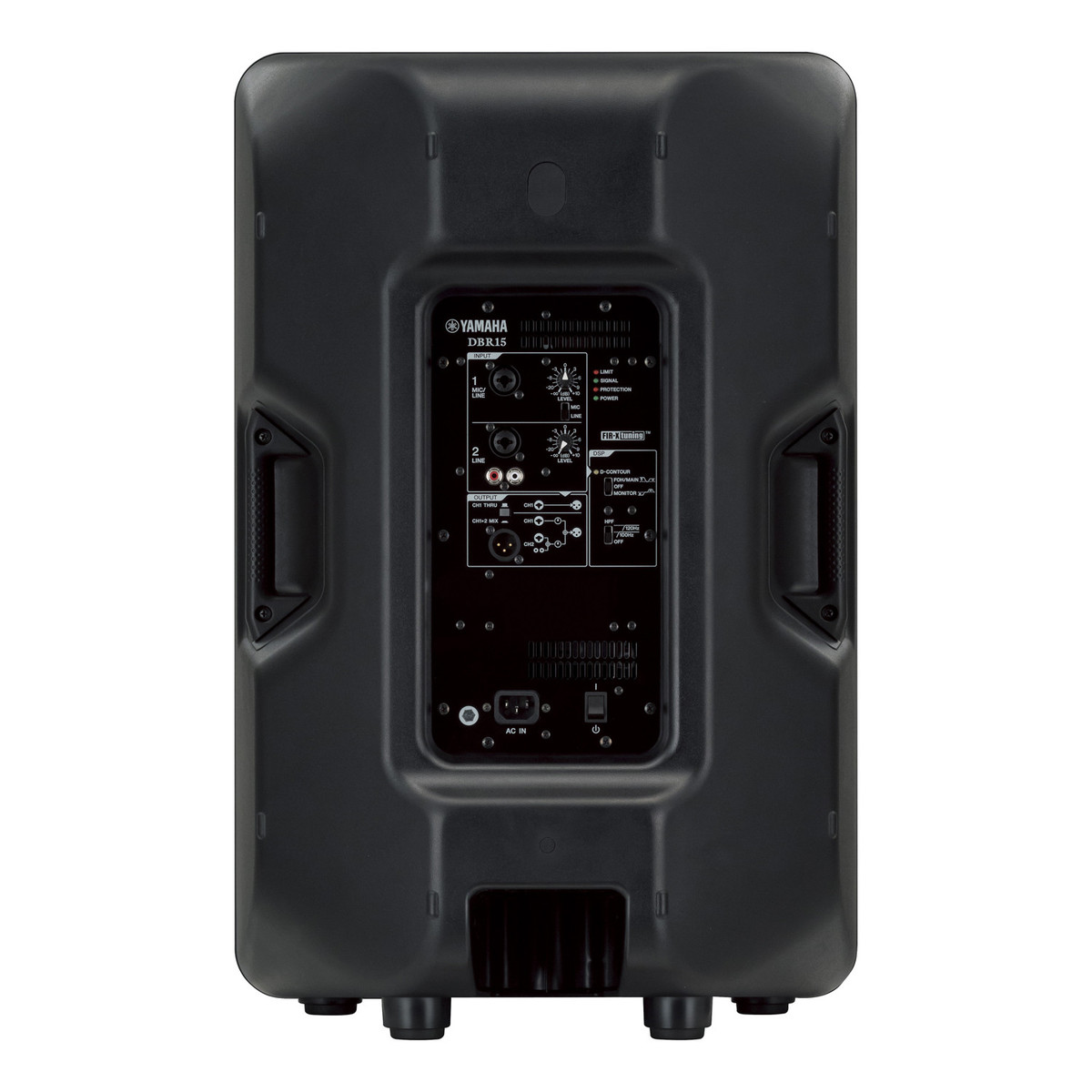

Yamaha DBR15 15″ Active PA Speaker

The Yamaha DBR15 15″ Active PA Speaker is perfect for musicians, DJs, and event MCs seeking reliable, high-quality audio performance. This model, the most compact in its series, boasts a maximum SPL of 132dB from its small frame, ensuring powerful sound across various settings. The integration of state-of-the-art DSP and amplifier technologies guarantees that audio is crisp and clear at all volumes. Its rugged, portable design with ergonomic handles makes transportation and setup a breeze. The onboard mixer offers flexible connectivity, catering to a multitude of audio sources.

The Yamaha DBR15 is equipped with a robust Class-D amplifier that pushes out 1000W of power, ensuring an impressive 132dB SPL without compromising clarity or sound quality. This high-efficiency setup is designed to handle demanding audio environments, offering crystal-clear sound that can fill any venue. Whether used for live music, public address, or dynamic DJ sets, the DBR15 delivers consistent, high-quality audio performance.

Featuring a specially designed transducer with a 1.4″ precision compression driver, the DBR15 produces detailed mid-range and high frequencies, while its powerful woofers ensure rich, deep bass with minimal distortion. This combination not only enhances overall sound clarity but also accurately reproduces the audio as intended, perfect for both music and vocal applications.

This speaker’s lightweight yet sturdy cabinet is constructed to withstand the rigors of the road while ensuring easy transport and setup, thanks to its newly designed ergonomic handles and a compact form factor. The durable plastic shell and steel grille protect the speaker from physical damage, making the DBR15 a reliable choice for touring musicians and event organizers.

The DBR15’s versatile design includes an onboard 2-channel mixer with multiple input options and the ability to mix or isolate channels, providing flexibility in handling various audio sources. Additionally, its symmetrical shape and optimized 50° wedge angle make it ideal for use as a floor monitor, offering excellent sound coverage in mirror-mode setups. Rigging points for mounted installations further enhance its adaptability, making it suitable for permanent setups or temporary events.

In addition to their standard two-year warranty, Yamaha are now offering an extension of an extra two years when you register your product with your Yamaha Music ID within six months of purchasing it.

Yamaha DBR15 15″ Active PA Speaker Features:

• Highly efficient 1000W lightweight Class-D amplifier
• High-performance design capable of producing an SPL of up to 132dB
• Custom-designed high-output 15” woofer for defined, powerful bass
• 1.4” precision compression driver delivers accurate mids and highs
• Remarkable clarity and dynamic characteristics
• Intuitive integrated 2-channel mixer with versatile connectivity
• Connect a wide variety of equipment and devices with ease
• Select between different channel output options on the fly
• Compact and durable lightweight plastic cabinet with metal grille

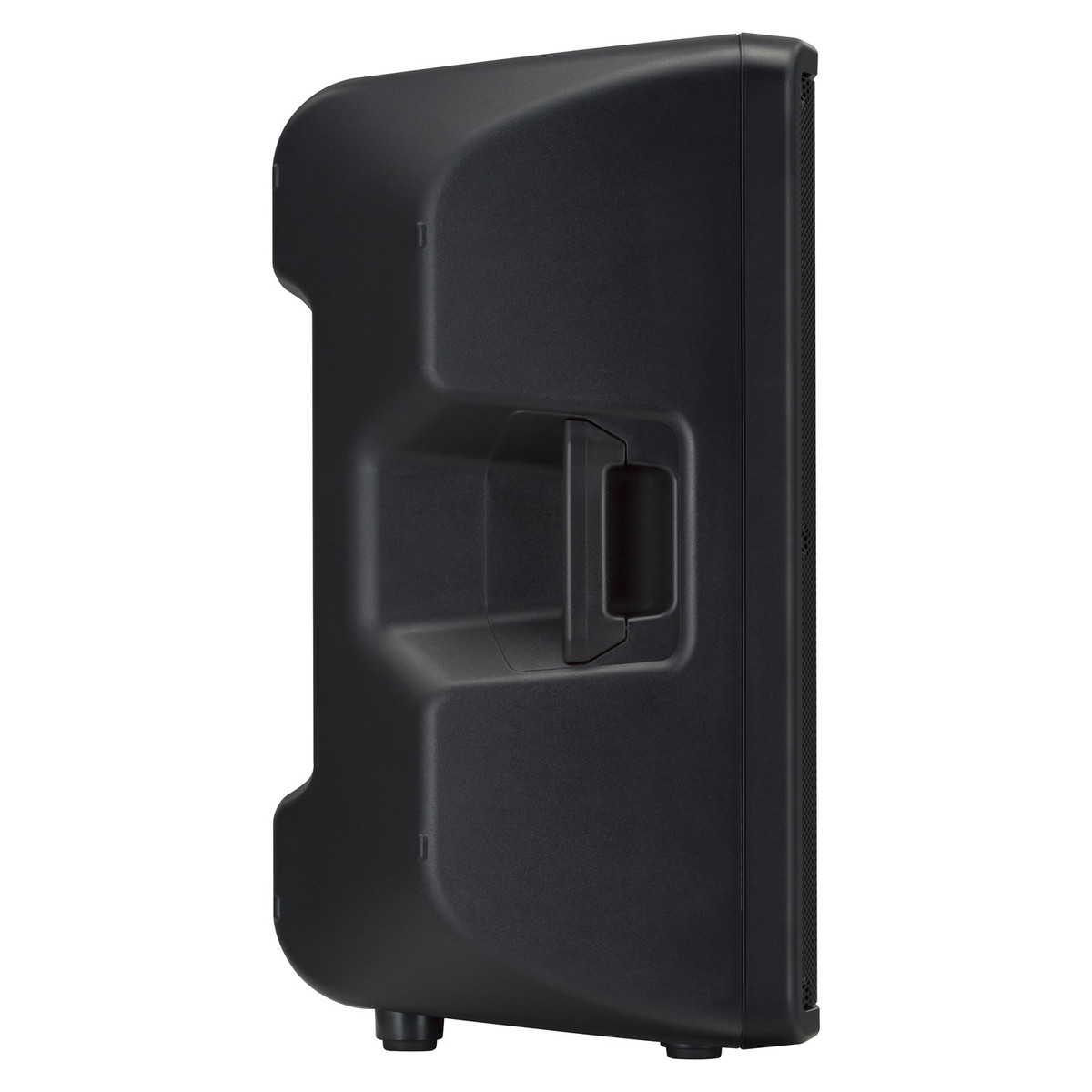

• Outstanding portability with newly designed ergonomic handles

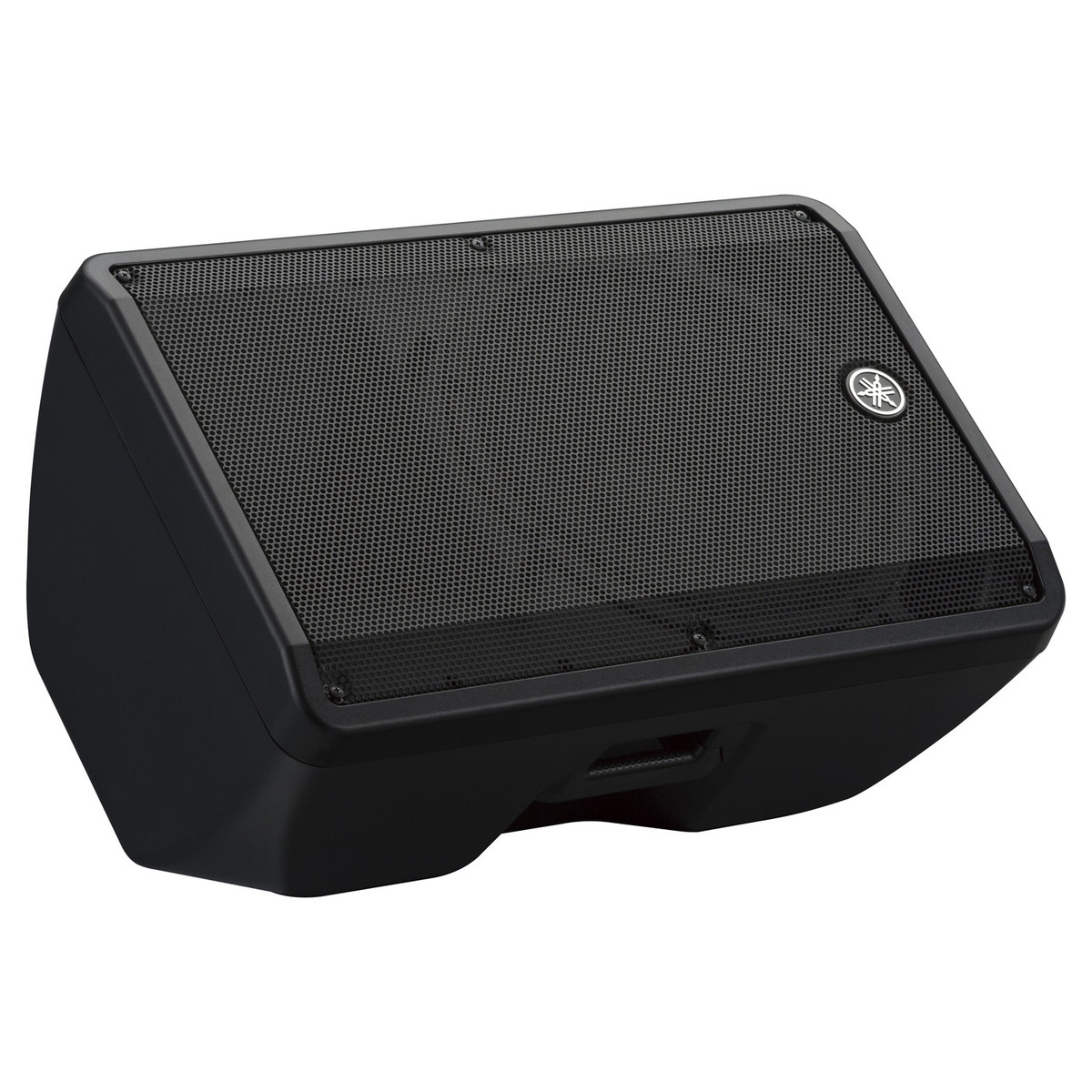

• Optimised 50° wedge angle for mirror-mode floor monitoring use
• Monitoring can be configured in either symmetrical or stereo sound field setups
• Equipped for M8 rigging points for hassle-free installation (Bolts not included)
• System Type: 2-way, bi-amp powered speaker, bass-reflex type
• LF Driver: 15” cone, 2.5” voice coil, Ferrite Magnet
• HF Driver: 1.4” compression driver, 1” throat, Ferrite Magnet
• Coverage Angle: 90° x 60° constant directivity horn (H x V)
• Frequency Range: 50Hz – 20kHz (-10dB)
• Maximum SPL: 132dB SPL (1m, on axis)
• Output Power:
  • Dynamic: 1000W (LF: 800W, HF: 200W)
  • Continuous: 465W (LF: 400W, HF: 65W)
• Crossover Type: FIR-X Tuning™ (Linear phase FIR filter)
• Crossover Frequency: 2.1kHz
• Processing: D-CONTOUR
  • FOH/MAIN
  • MONITOR
  • OFF

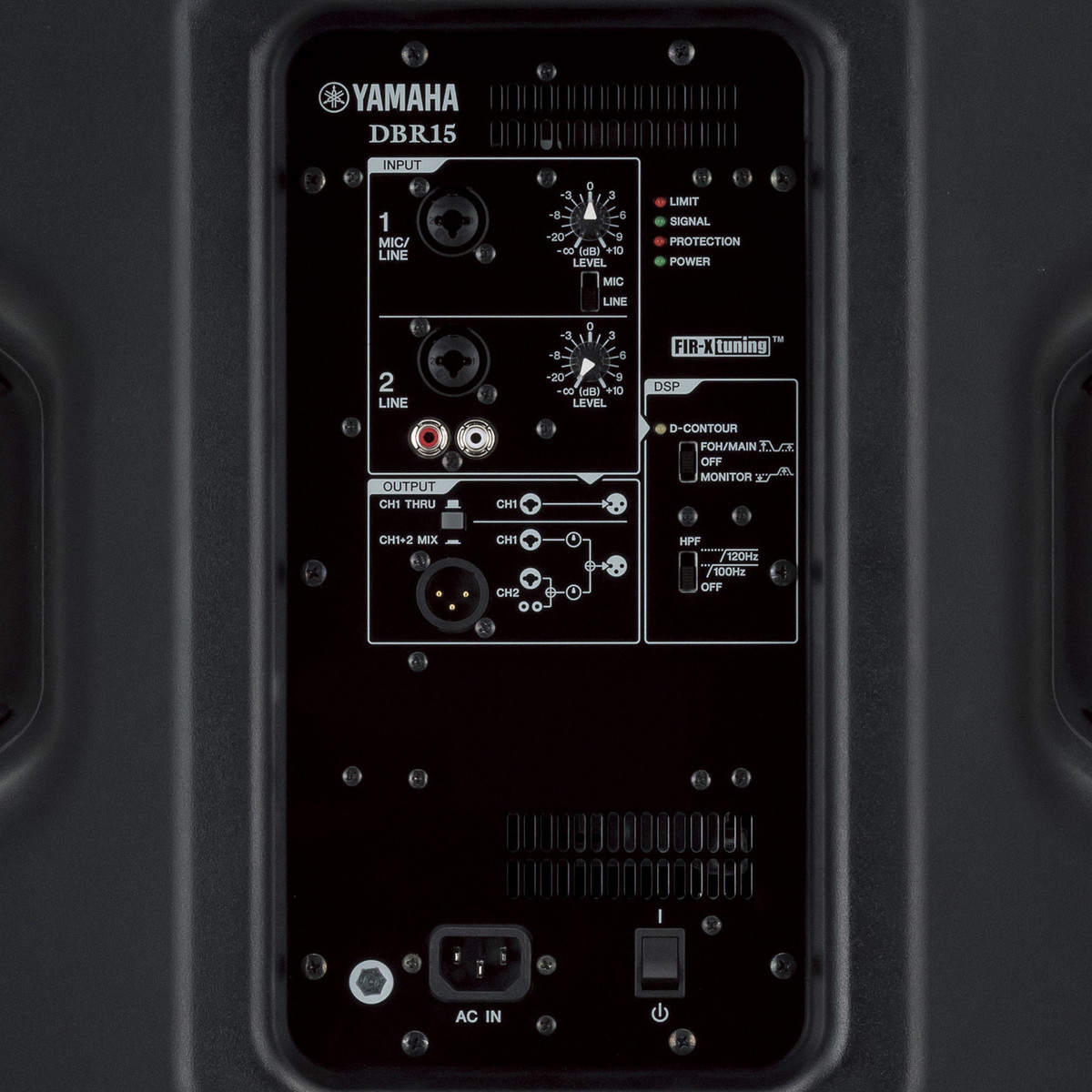

• Controls:
  • Level (x 2)
  • Line / Mic
  • HPF
  • D-CONTOUR
  • THRU/MIX
  • Power
• Input Connectors:
  • Input 1: Combo x 1
  • Input 2: Combo x 1, RCA x 2 (unbalanced)
• Output Connectors: XLR3-32 x 1 (CH1 Parallel Through or CH1 + CH2 Mix)
• Input Impedance:
  • Input 1: 3 k Ohms (XLR, TRS)
  • Input 2: 10 k Ohms (XLR, TRS, RCA)
• Input Sensitivity: Level – Maximum
  • Input 1 – Line: 0dBu
  • Input 1 – Mic: -32dBu
  • Input 2: 0dBu
• Input Sensitivity: Level – Centre
  • Input 1 – Line: +10dBu
  • Input 1 – Mic: -22dBu
  • Input 2: +10dBu
• Maximum Input Level:
  • Input 1 – Line: +24dBu
  • Input 1 – Mic: -8dBu
  • Input 2: +24dBu
• Floor Monitor Angle: 50° Symmetrical
• Cabinet:
  • Material: Plastic
  • Finish: Black
  • Pole Socket: 35mm (bottom x 1)
  • Handle: Side x 2
  • Rigging Points: Bottom x 2, Rear x 1 (fits M8 x 15mm eyebolts)
• Cooling: Fan cooling, 4 speeds
• Power Requirements: 220-240V, 50Hz/60Hz
• 1/8 Power Consumption: 74W
• Dimensions: 455mm x 700mm x 378mm / 17.9” x 27.6” x 14.9” (W x H x D) (with rubber feet)
• Weight: 19.3kg / 42.6lbs
