Description

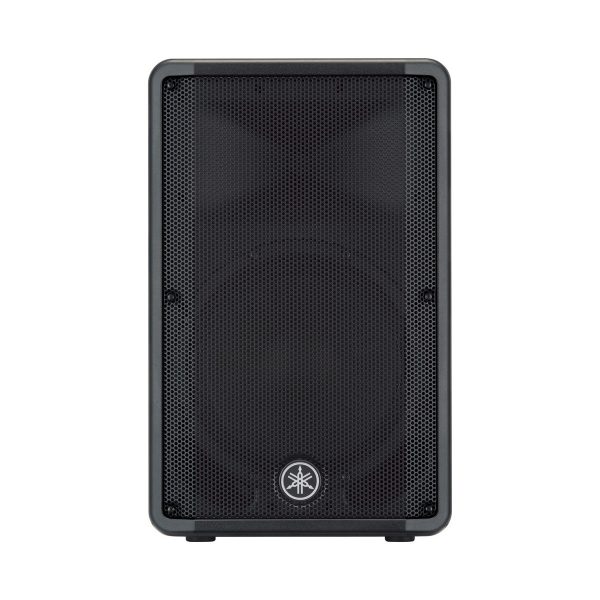

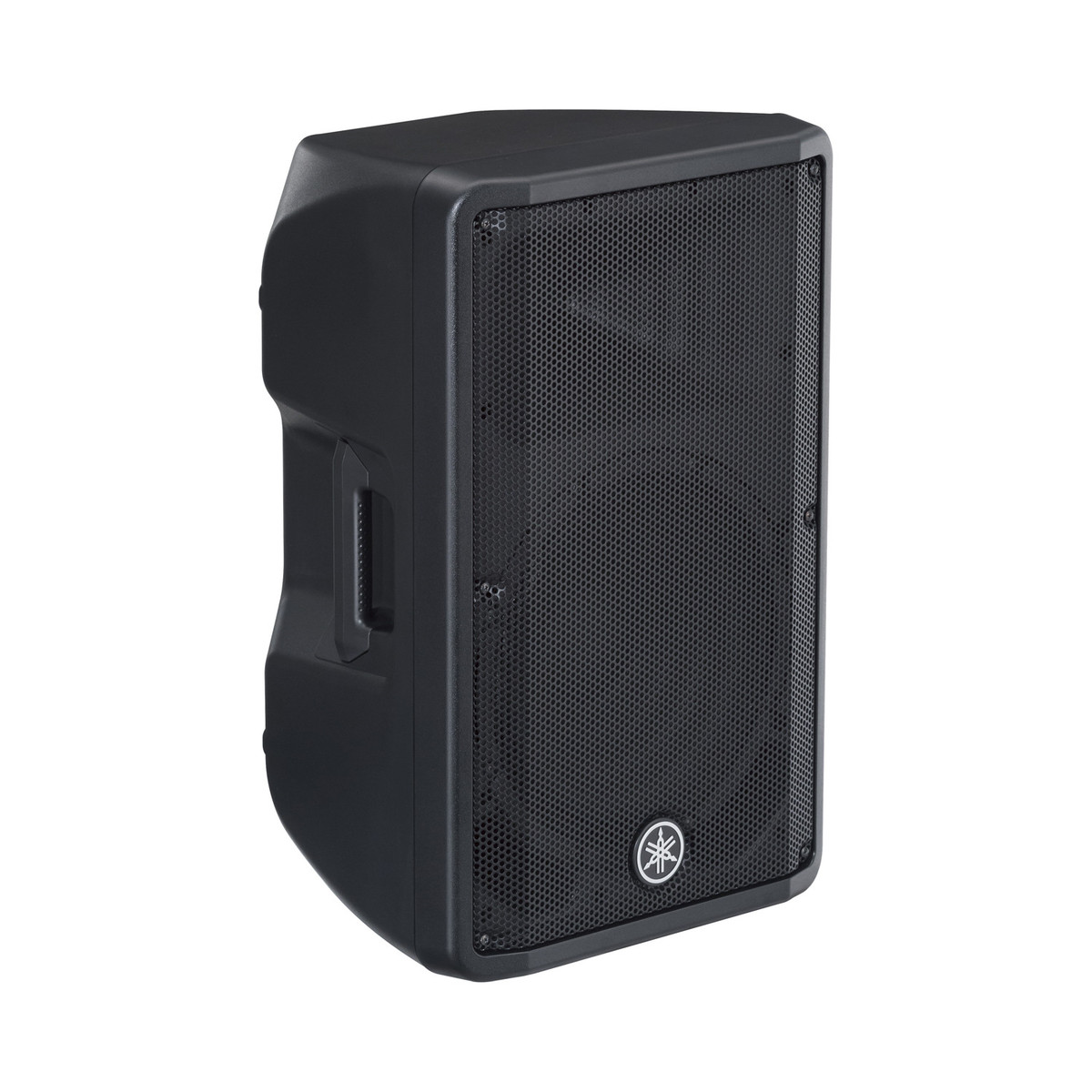

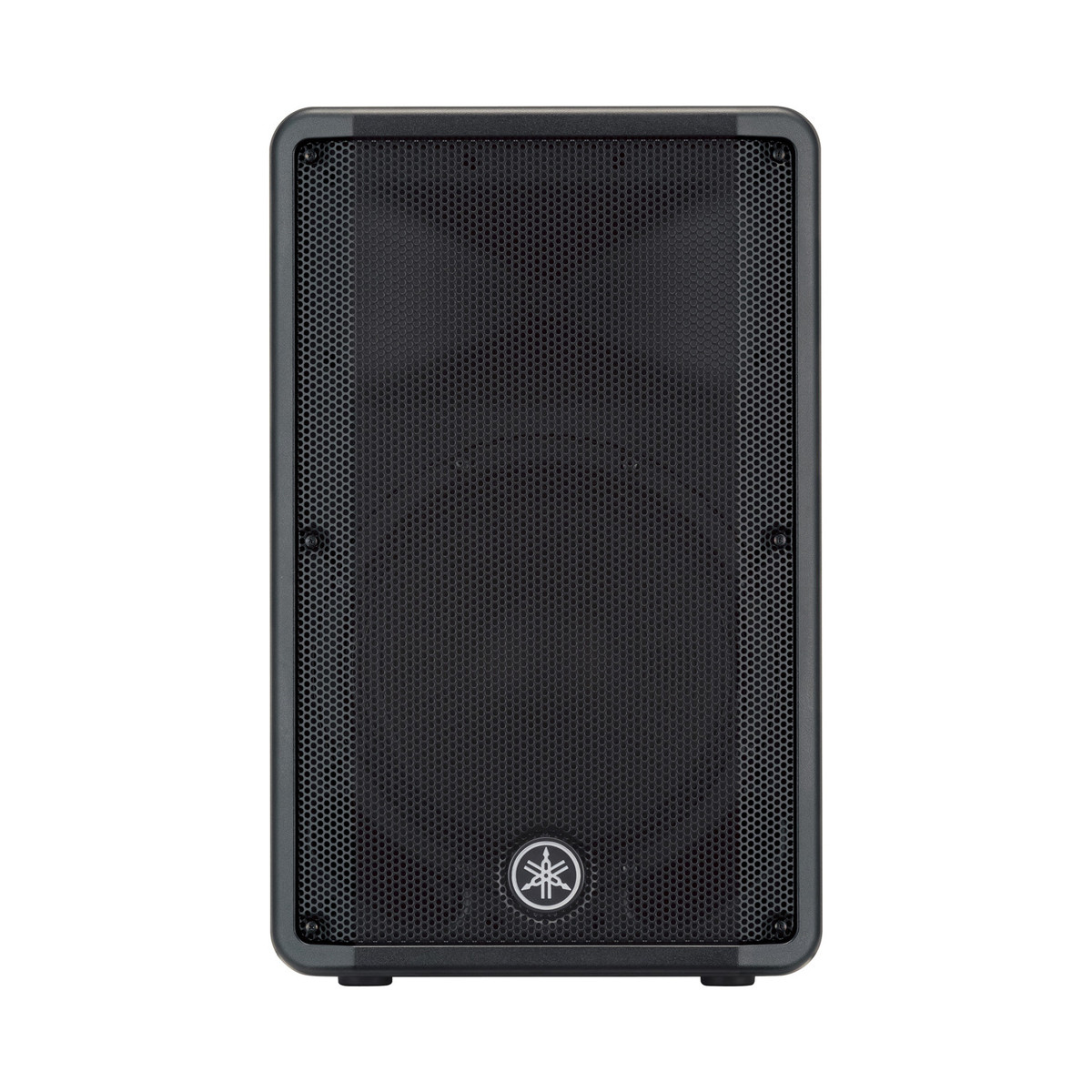

Yamaha DBR12 Active PA Speaker

The Yamaha DBR12 Active PA Speaker delivers a powerful performance with an incredibly clear Class-D amplifier capable of up to 1000W of peak power. The sound provided by the powered speakers is full of clarity due to an impressive 132dB sound pressure level. With a 12 inch low frequency driver, distortion is minimal and bass is consistent whilst a 1.4 inch compression driver delivers accurate mid-range and high frequencies. Each component of the Yamaha DBR12 Active PA Speaker is protected in a robust, lightweight housing that is both portable and durable.

Highly Efficient Performance

The Yamaha DBR12 Active PA Speaker is equipped with Class-D amplifiers capable of delivering up to 1000W of peak power, allowing it to achieve an impressive maximum sound pressure level of up to 131 dB with consistently high audio quality, performance and reliability. Carefully selected speaker drivers have been customized to perfectly match the built in amplifier’s properties to deliver high output power with minimal distortion.

The DBR 12 also features Yamaha’s extremely accurate wide dispersion constant-directivity horn that evenly projects clear midrange and accurate high frequencies to the outer-most edges of a very wide coverage area.

Durable, Portable Construction

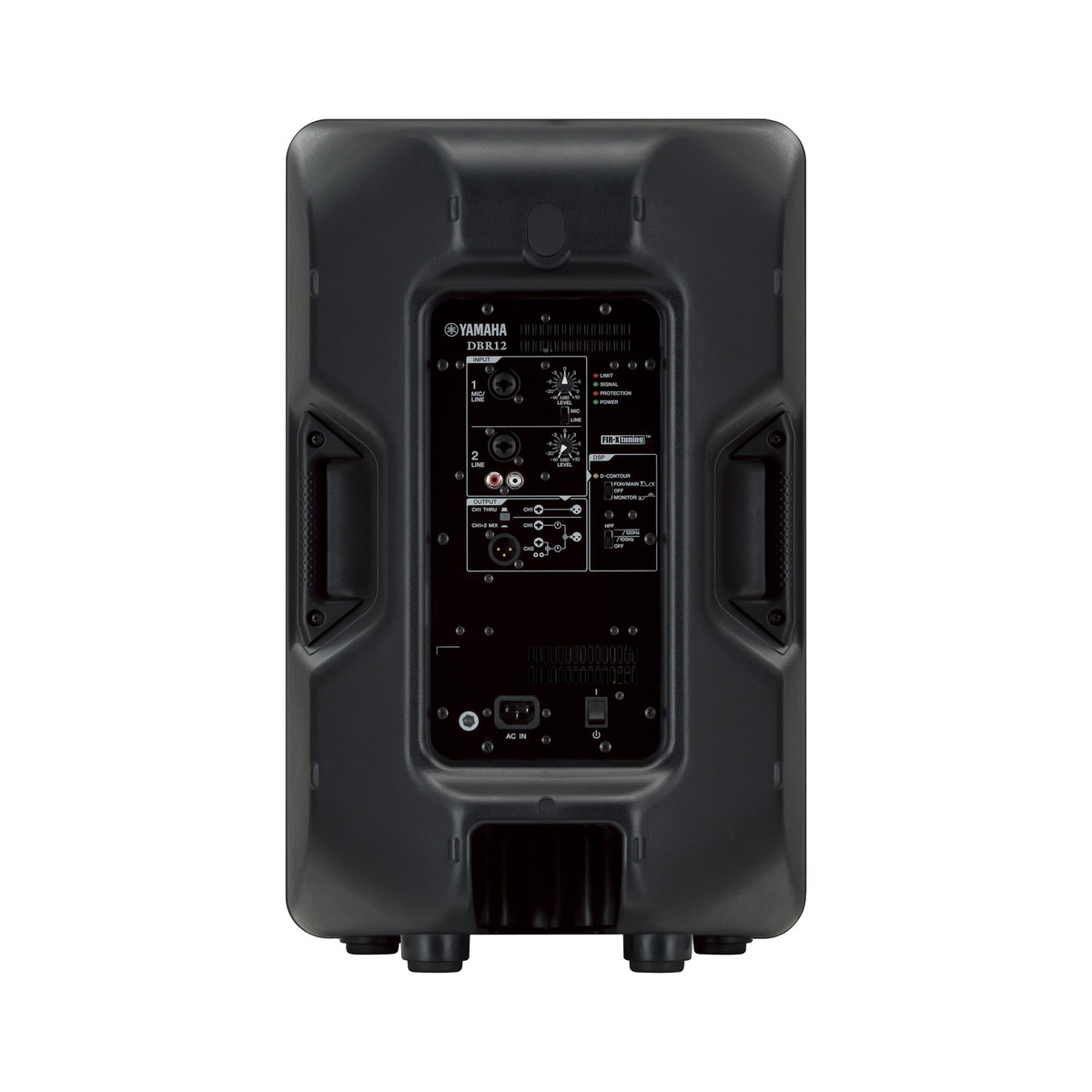

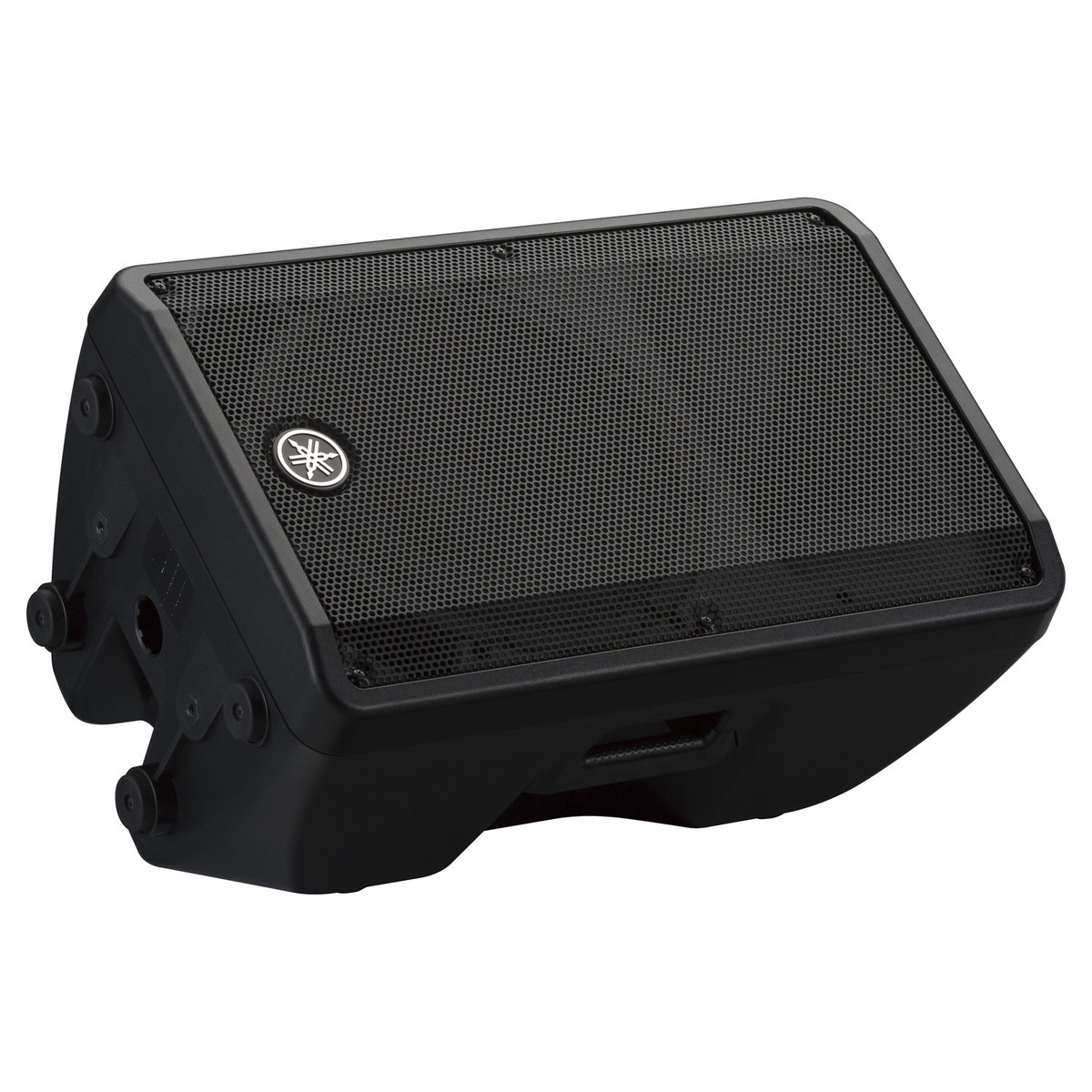

Portability and versatility factored heavily into the design, with a rugged, compact and light-weight plastic enclosure. A sleek steel grille and ergonomic carry handles allowing for fast, safe and easy transportation. The DBR features an optimized 50 degree wedge angle for floor monitoring use, while the symmetrical cabinet shape allows them to be placed in a “mirror-mode” configuration to avoid high frequency ‘hot-spots’ and is equipped with rigging points compatible with optional speaker brackets and eyebolts for installed applications.

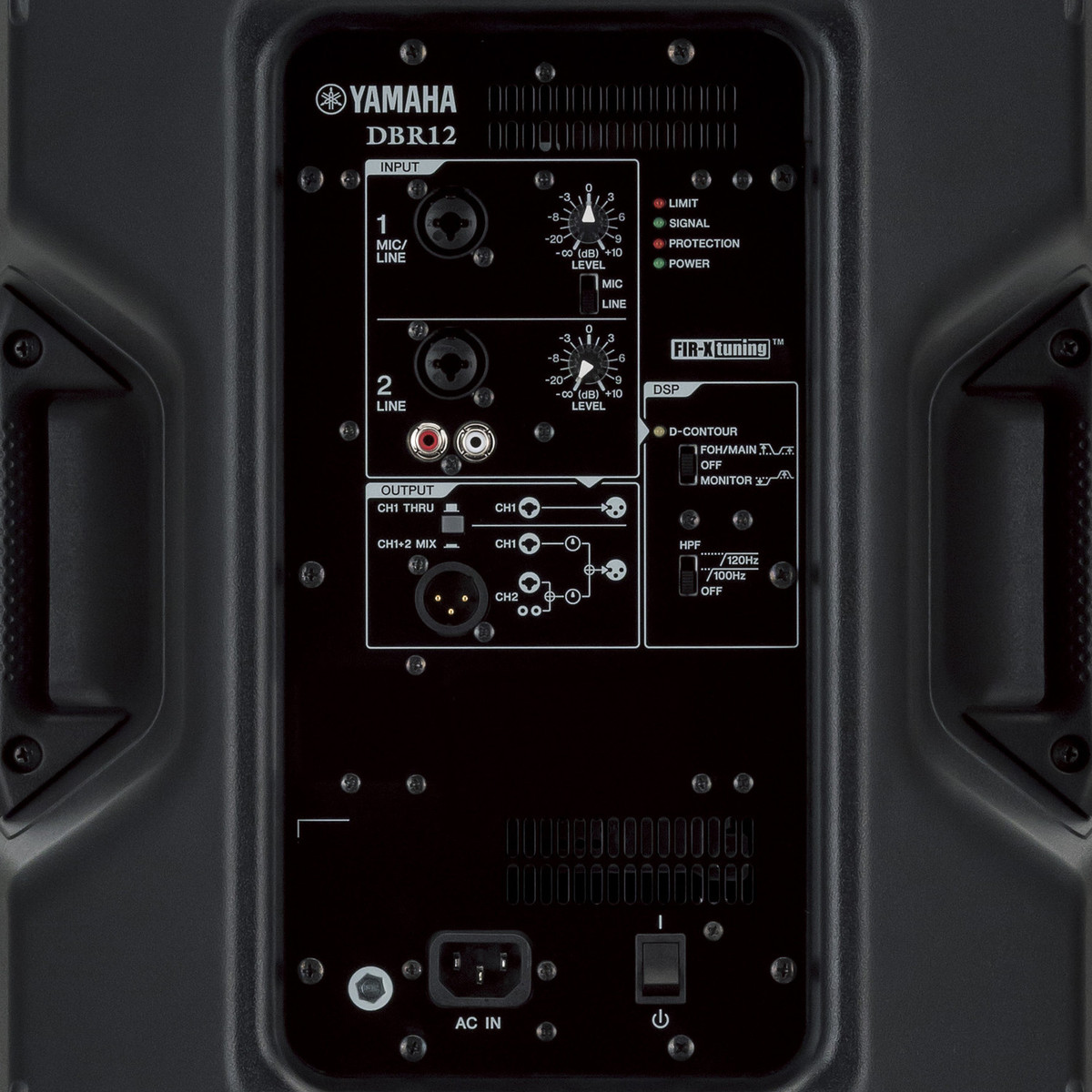

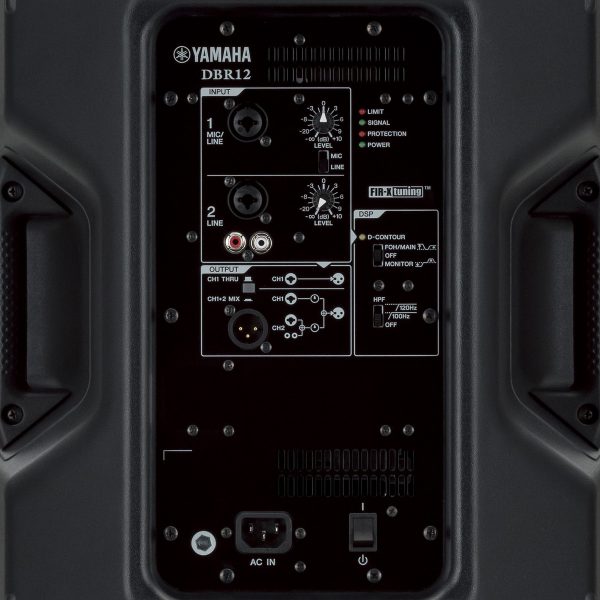

Integrated Mixer & Controls

Each DBR model also features an easy-to-use 2-channel onboard mixer. CH1 has a combo jack that accepts both XLR and TRS Phone, allowing for either Mic or Line level inputs. CH2 also features a combo jack, as well as an RCA pin jack for input from CD players or stereo line-level sources. The mixer allows you to select either CH1+2 MIX, or CH1 THRU to pass the signal from CH1 only.

Features

• Custom designed transducers and wide-dispersion constant directivity horn
• DSP Features of DSR-Series
• FIR-X tuning simultaneously optimizes frequency and phase response
• Multiband dynamic processor for consistent clarity at any output Level
• Extensive DSP protection functions for maximum output level
• 2-channel mixer with XLR, TRS Phone and RCA inputs
• 50°degree wedge angle & symmetrical mirror-mode floor monitoring
• 3x M8 Rigging Points for standard eye-bolts

Specifications

• Speaker Type: 2-Way, Bi-Amp Powered Speaker, Bass-Reflex Type
• Frequency Range: 52Hz – 20kHz
• Nominal Coverage
  • H: 90°
  • V: 60°
• Components
  • LF: 12″ Cone, 2″ Voice Coil, Ferrite Magnet
  • HF: 1.4″ Diaphragm, 1″ Throat Compression Driver, Ferrite Magnet
• Crossover: 2.1kHz FIR-X Tuning
• Output Power
  • Dynamic: 1000W (LF: 800W, HF: 200W)
  • Continuous: 465W (Lf: 400W, 65W)
• Maximum Output Level: 131dB SPL
• Connectors
  • Input 1: Combo x 1
  • Input 2: Combo x 1 + RCA Pin x 2
  • Output: XLR3-32 x 1
• Processors: D-Contour: FOH/Main, Monitor, Off
• Heat Dissipation: Fan Cooling, 4 Speeds
• Power Requirements: 100V, 100-120V, 220-240V, 110/127/220V (Brazil), 50/60Hz
• Power Consumption: 74W (1/8 Power Consumption), 18W (Idle)
• Cabinet Material: Plastic
• Finish: Black
• Handle: Side x 2
• Flying & Mounting Hardware: Bottom x 2, Rear x 1
• Pole Socket: 35mm
• Weight: 15.8 kg
• Dimensions
  • Height: 601 mm
  • Width: 376 mm
  • Depth: 348 mm
