Adastra LP8V 8” 100V Low Profile Ceiling Speaker

The Adastra LP8V 8” 100V Low Profile Ceiling Speaker is an ideal choice for installations where aesthetics are a priority. With the ability to paint the low-profile magnetic frameless grille, you can match the LP8V to suit the decor in your chosen environment. And with the integrated dog-ear mounts, fitting is simple and unobtrusive with no visible screws or mounting hardware. The LP8V boasts a 2-way design with a main driver and a concentric directional tweeter. Providing accurate sound reproduction from 60Hz to 20kHz, this high-performance ceiling speaker gives listeners a powerful listening experience with excellent clarity. Plus, you can use the rotary control on the rear of the speaker to select different 100V line tappings or 8 Ohm operation, making system configuration quick and easy.

Adastra LP8V 8” 100V Low Profile Ceiling Speaker Features:

• 2-way low-profile ceiling speaker with a flared baffle

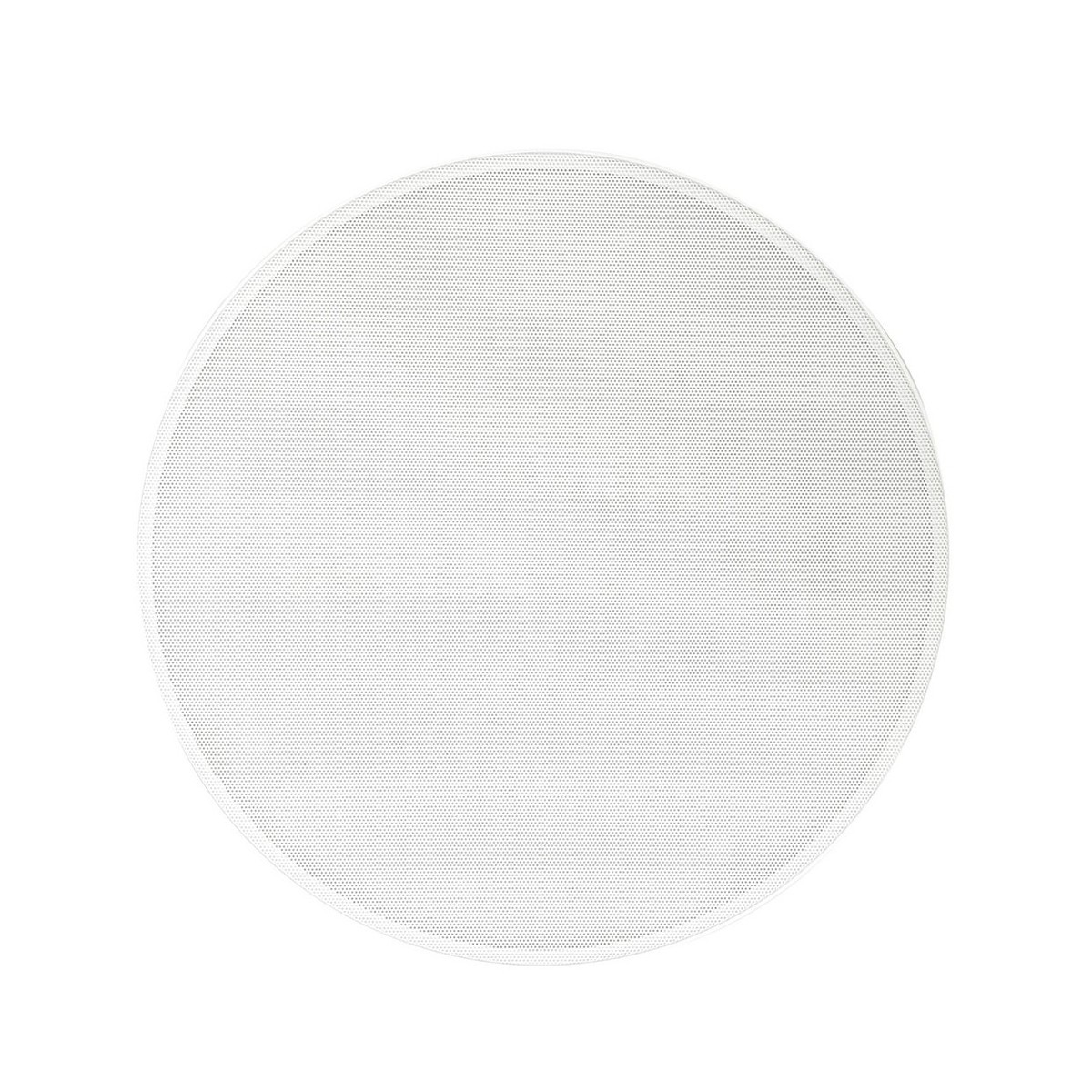

• Fitted with a low profile magnetic frameless grille
• Main driver with concentric directional tweeter

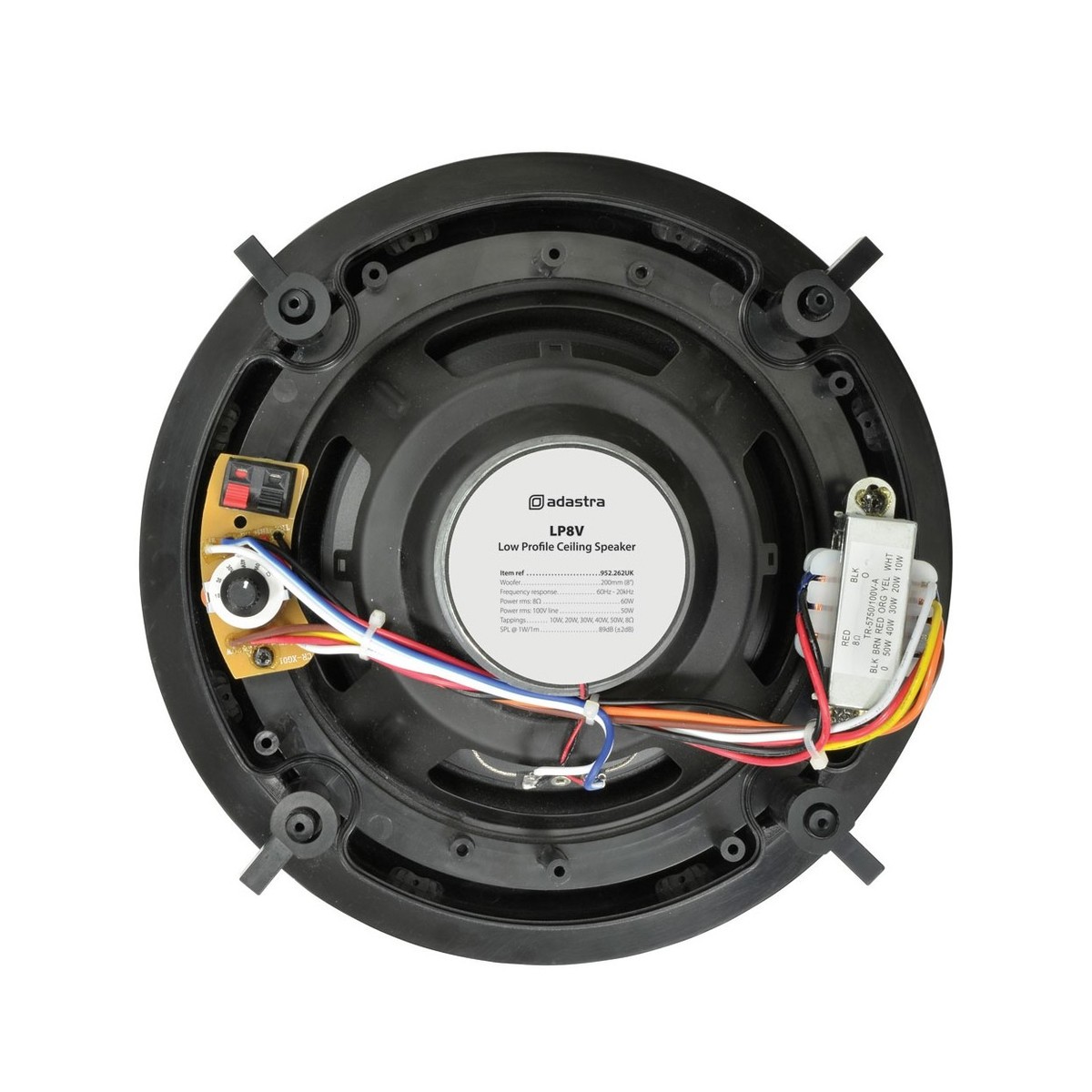

• Rotary control with 5 x 100V volume tappings plus 8 Ohm option
• Designed for mounting to suspended or false ceilings with 4 ‘dog-ear’ mounts
• The grille can be painted to match the look of your room
• Discrete high-quality sound installation option

Adastra LP8V 8” 100V Low Profile Ceiling Speaker Specifications:

• Transducers:
  • Woofer: 8” (200mm)
  • Tweeter: 1.75” (44mm)
• Dispersion Angle: 160°
• Frequency Response: 60Hz – 20kHz
• Power:
  • Maximum at 8 Ohms:120W
  • RMS at 8 Ohms: 60W
  • RMS at 100V Line: 50W
• Cutout: 245mm
• Mounting Depth: 104mm
• SPL: 89dB (+/-2dB) at 1W/1m
• Tappings:
  • 10W
  • 20W
  • 30W
  • 40W
  • 50W
  • 8 Ohms
• Dimensions: 108mm x 281mm
• Weight: 1.98kg
