Description

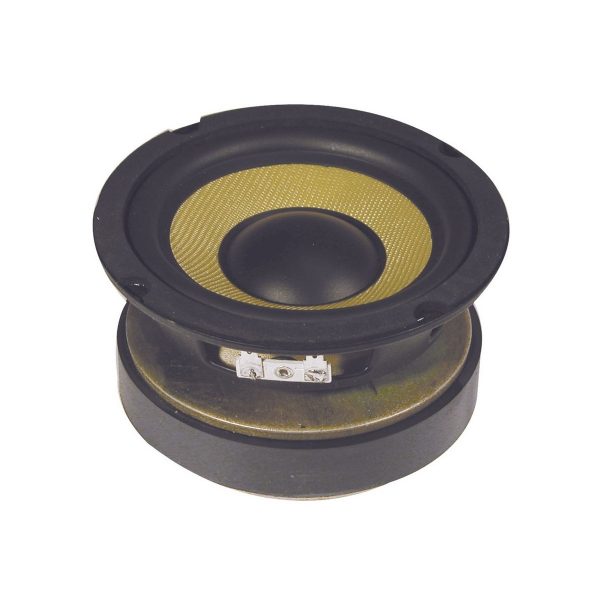

QTX QXW5 5.25” Woofer with Aramid Fibre Cone

High powered and reinforced. The QTX QXW5 Woofer boasts a rugged design with an aramid fibre cone, ensuring excellent performance with outstanding reliability. Combined with a rubber surround, a vented magnet, and a heat-resistant 4-layer voice coil, this high-performance woofer is able to handle power peaks with ease.

It’s not just about durability though. The robust design of the QXW5 also delivers a smooth sound that is perfect for Hi-Fi applications. Capable of reproducing sound to a high quality from 40Hz to 10kHz, the QXW5 is the perfect choice for building a full-range Hi-Fi speaker or monitor. And thanks to the integrated spade terminals, hooking the woofer up is quick and easy.

Features

• 5.25” woofer with a reinforced aramid fibre cone
• Rubber surround
• Vented magnet
• Heat-resistant 4-layer voice coil
• Easily handles power peaks
• Produces a smooth sound for Hi-Fi applications
• Black metal chassis
• Spade terminals

Specifications

• Impedance: 8 Ohms
• Voice Coil: 4-layer
• Power:
  • Maximum: 200W
  • RMS: 100W
• Overall Depth: 80mm
• Magnet Diameter: 100mm
• Magnet Weight: 600g / 20oz.
• SPL: 84.8dB at 1W/1m
• Mounting Centres: 122mm diameter
• Frequency Response: 40Hz – 10kHz
• Diameter: 5.25” / 130mm
• Weight: 1.27kg
