Description

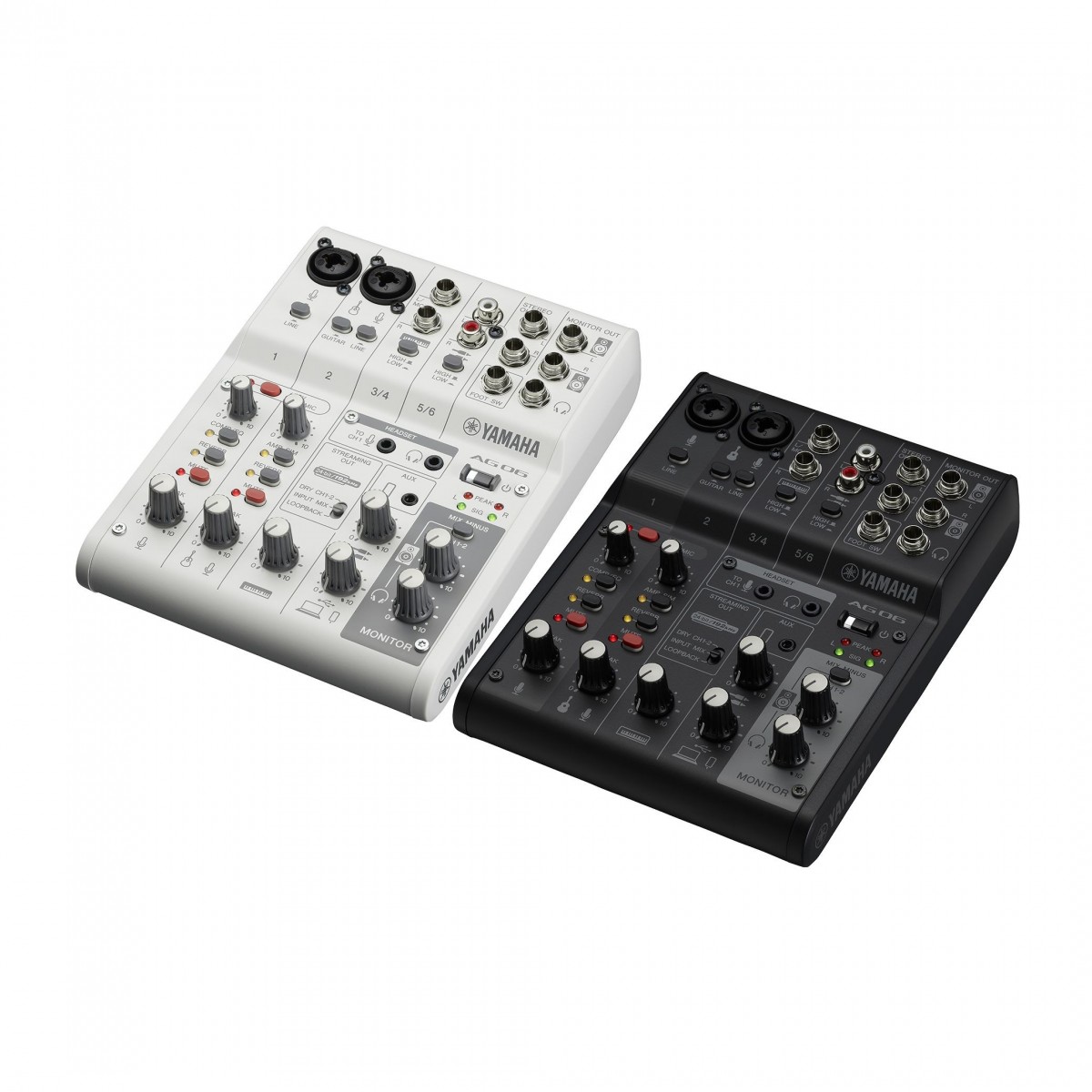

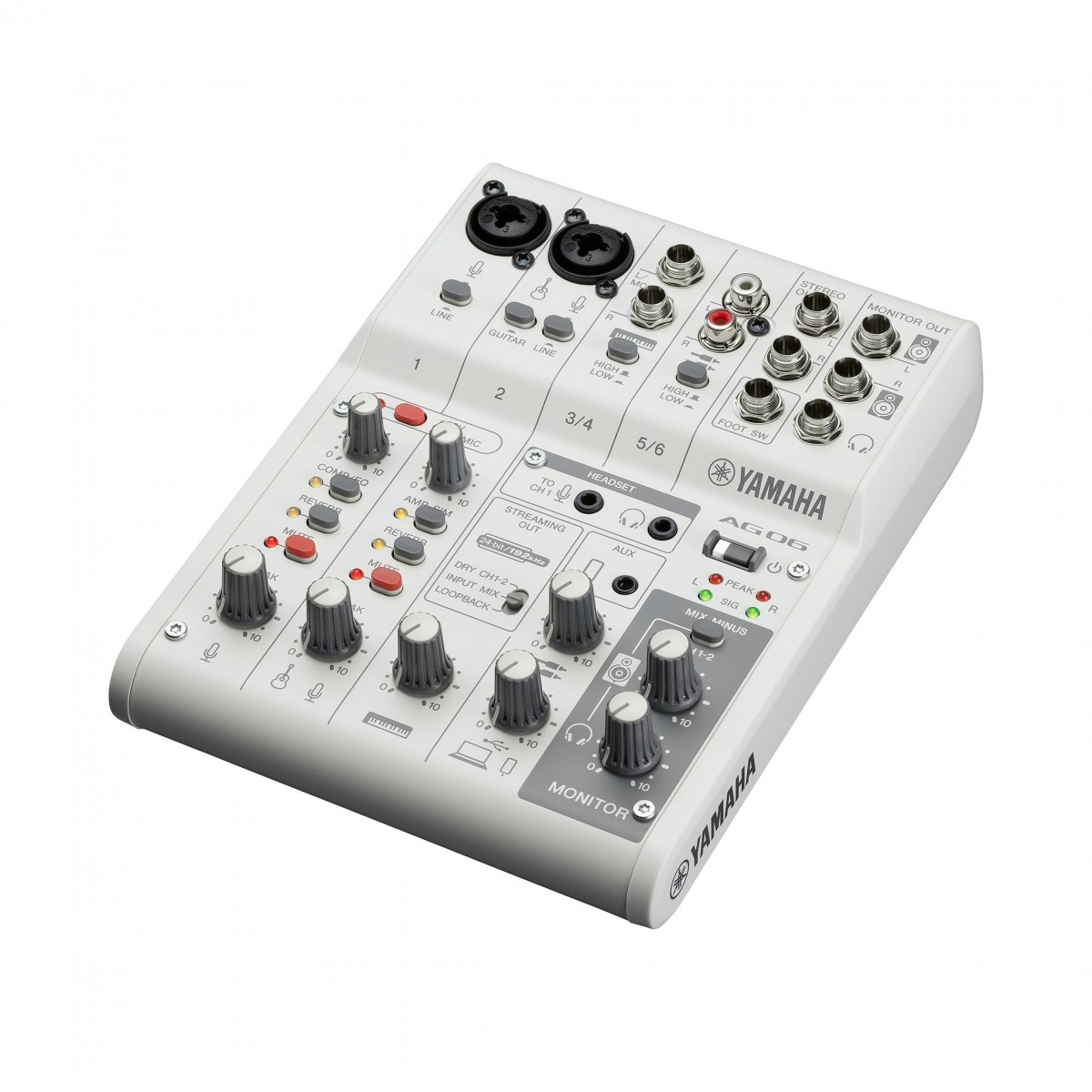

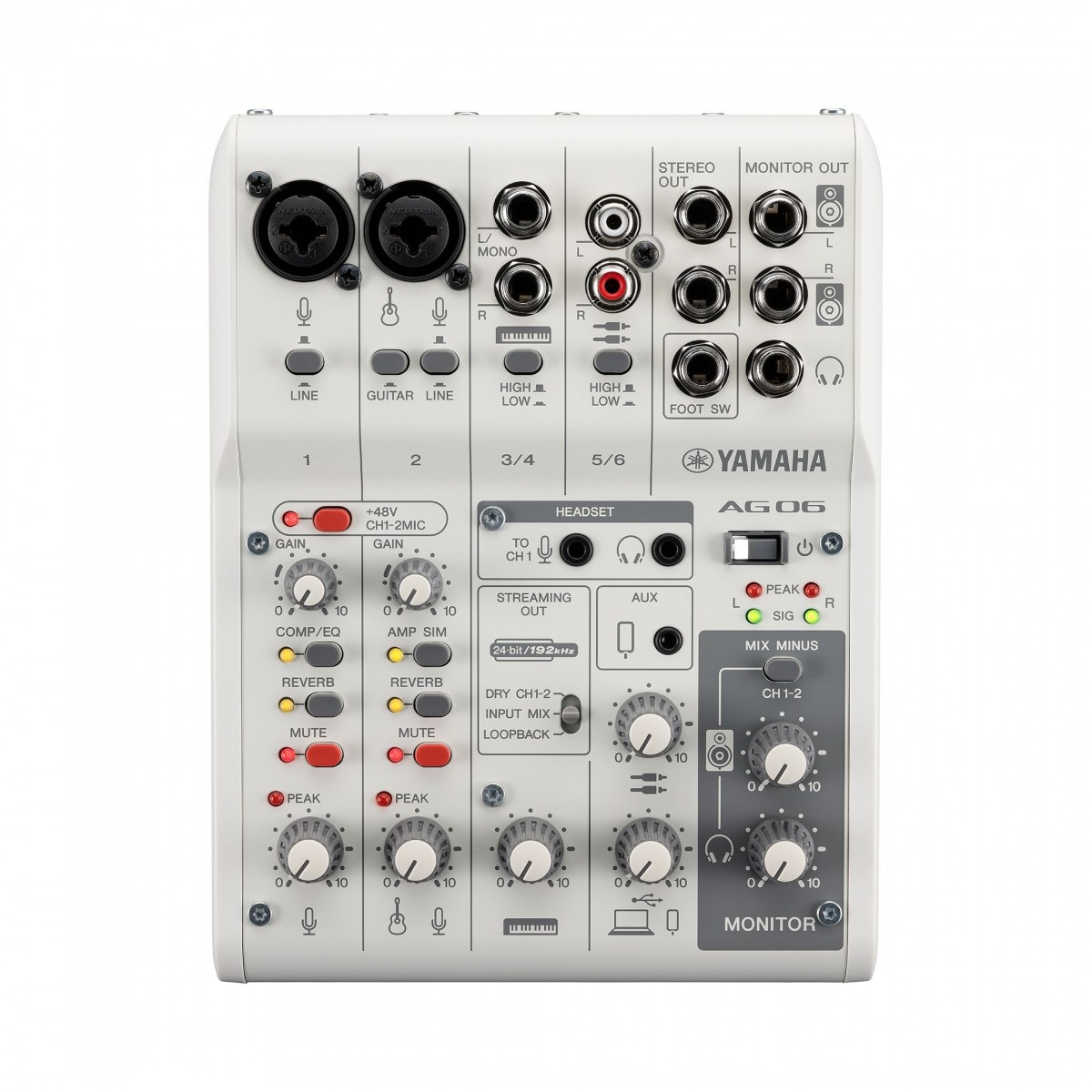

Yamaha AG06 MK2 6 Channel Mixer with USB Interface White

The Yamaha AG06 MK2 6 Channel Mixer with USB Interface White is a flexible and compact six-channel mixer that’s ideal for live streaming, video content creators, and podcasters. The AG06 MK2 contains two phantom powered mono channels with combo jacks, ideal for connecting condenser microphones, but also capable of handling instruments like guitars. Then, two additional stereo line inputs allow you to connect other external instruments or audio devices to the AG06, from keyboards to guitars, whatever your show needs.

The AG06 MK2 also provides the popular loopback function, letting you connect a phone, tablet or PC via USB and use its audio to include in your main output. Whether you need sound effects, background music, a backing track for a musical performance, or game audio, the AG06 will let you set it up in seconds. The AG06’s outputs for headsets, headphones and phones also allow you to monitor your audio accurately and get the perfect blend of sounds.

The AG06 MK2 doesn’t stop there, with a mini-jack output, you can easily connect a second streaming device, like a phone or tablet, and mirror your stream. Rounding out this mixer is an effects section with fantastic sounding one-touch effects, you can add depth and polish to your sounds with reverb, compression, and EQ, or add punch to your guitar with an amp simulation effect, all at the push of a button!

Drawing inspiration from professional mixing consoles, Yamaha have ensured that the AG06 MK2 is intuitive to use and offers high-grade sound to ensure your content stands out from the crowd. Broad routing possibilities allow you to be as creative as you need to get your sound exactly the way you need it, whether you switch things up a lot or just need a straightforward, great sound for your streams. Yamaha have also improved the internal circuitry of the AG06 MK2 to provide fantastic sound quality that’ll set you apart from the rest.

Having flexible control over your effects, and them being easy to use is extremely important for live mixing, and streaming is no different. Being able to activate your effects at the press of a button (or even an optional footswitch) makes it incredibly easy to shape and add depth to your sounds. And the included AG Controller software gives you either simple and intuitive, or deep and detailed customisation over your effects to dial in the sounds you want, no matter your level of audio production experience.

No matter what kind of content you make, or what your streaming setup is, the AG06 is designed to change according to your needs. Its compact build makes it at home on just about any flat surface, while an optional adaptor allows you to install it on a microphone stand. Plus, connection to an external USB power bank allows you to make the AG06 portable, for streaming on-location.

This mixer comes bundled with software packages from Steinberg to get your sounds polished and professional. Including Cubase AI for music production, as well as WaveLab Cast for audio production and editing ideal for podcasting. Whatever content you make, the included software can help you improve your sound.

Yamaha AG06 MK2 6 Channel Mixer with USB Interface White Features:

• Six-channel mixer with integrated USB audio interface designed for live streaming, podcast and video content creation
• +48 V phantom power on each of the two microphone input channels for connecting condenser microphones or DI boxes
• Channel 2 includes Hi-Z input for guitars
• High resolution audio recording and playback (24-bit, 192 kHz) gives your sound a crisp, professional edge
• 4-pole mini-jack input/output allows for wider streaming functionality with smartphones or tablets
• Loopback function allows you to include audio from external USB devices like computers, phones or tablets as an input for your mix
• Mute button for instant control over microphone inputs
• Polished sound from one-touch effects to add depth and character to your sounds
• Compression, EQ, Reverb and Amp Simulator effects with single-button activation
• AG Controller software offers simple or deep customisation of effects parameters to make the sounds yours
• Windows and Mac support via USB-C connection
• iOS connectivity via Apple Camera Adapter makes it easy to stream to your phone (requires external USB power supply)
• Android phone connectivity via 4-pole mini-jack input/output (TRRS)
• USB-C power input for easily portable audio setups (5 V DC, 900 mA)
• Included Steinberg software for additional audio editing and music production

Yamaha AG06 MK2 6 Channel Mixer with USB Interface White Specifications:

• Input Channels:
  • Mono (Mic/Line):
    • Channel 1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8″) stereo mini (Headset mic, Plug-in power) (CH1 input and Headset mic cannot be used simultaneously)
    • Channel 2: Combo (Mic, +48 V phantom power / Guitar input / Line)
  • Stereo (Line): 1 x Phone, 1 x RCA
  • Smartphone: 1 x Phones/Headset Phones (Cannot be used simultaneously)
  • USB: 1
• Output Channels:
  • Phones: 1 x Phones, 1 x Headset Phones (Cannot be used simultaneously)
  • Smartphone: 1 x 4-pole mini input/output (TRRS)
  • Monitor Out: 1
  • Stereo Out: 1
  • USB: 1
• Bus: 1, Stereo
• Functions: MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
• On-Board DSP: COMP/EQ, REVERB (SPX Reverb), AMP SIM (Parameters adjustable via AG Controller software)
• USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C

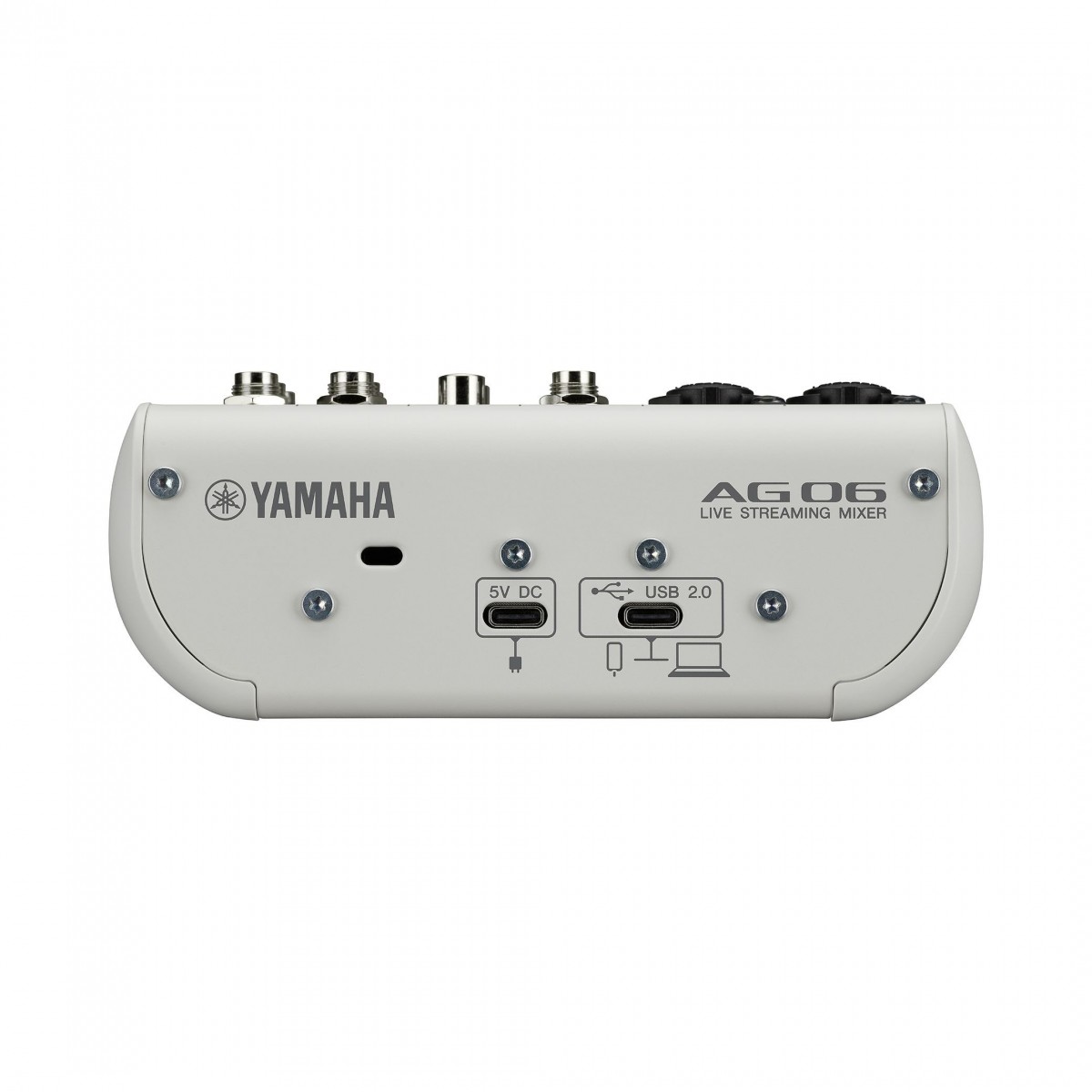

• USB DC Power Input: Type-C, 5 V DC, 900 mA
• Power Requirements: 5 V DC, 900 mA
• Power Consumption: Max. 4.5 W
• Dimensions:
  • Width: 152 mm (6.0″)
  • Height: 63 mm (2.5″)
  • Depth: 201 mm (7.9″)
• Net Weight: 0.9 kg (2.0 lbs)
• Included Accessories: USB 2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
• Operating Temperature: 0 – +40°C
• Product Code: AG06MK2-WH
