Description

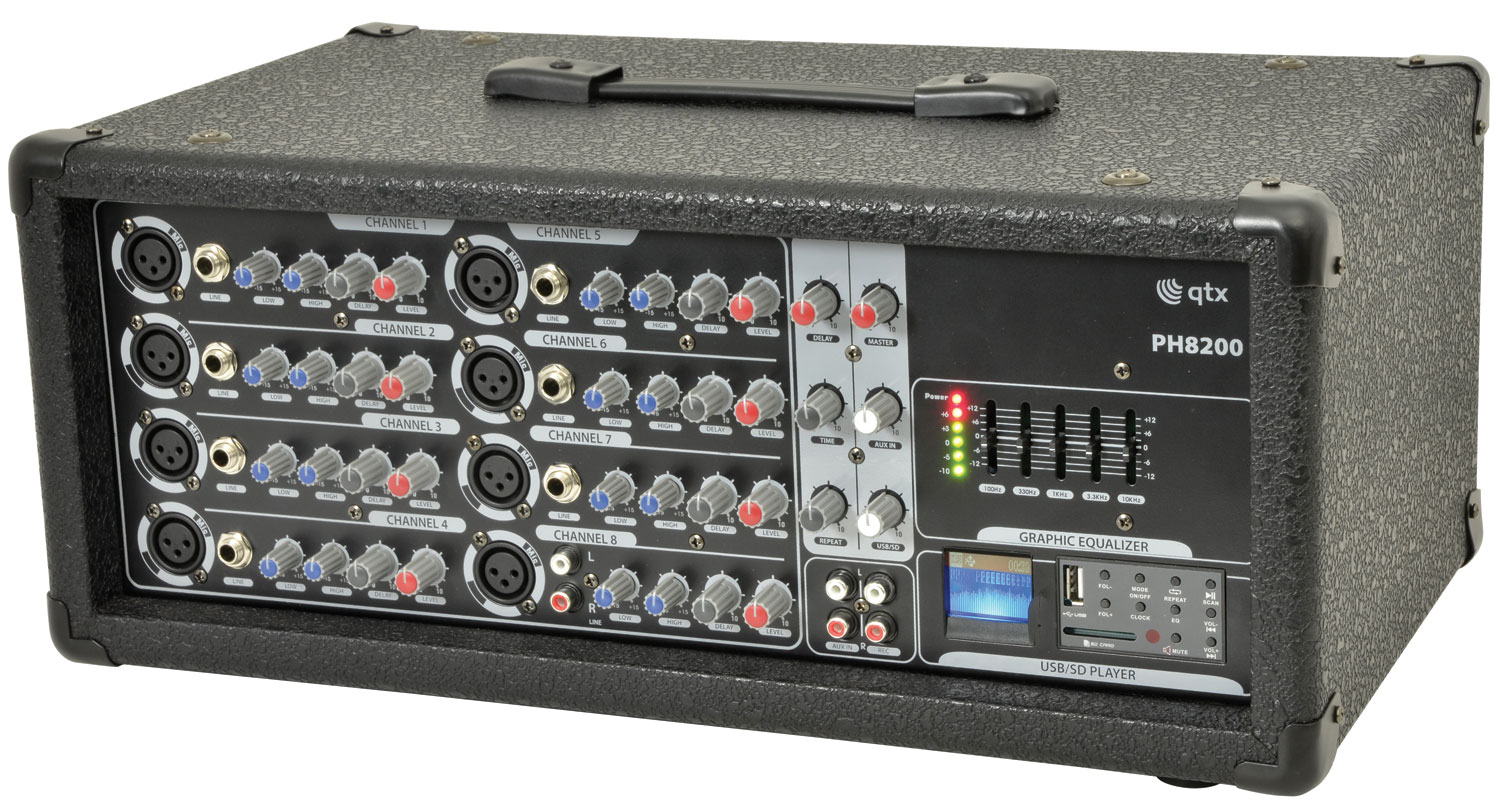

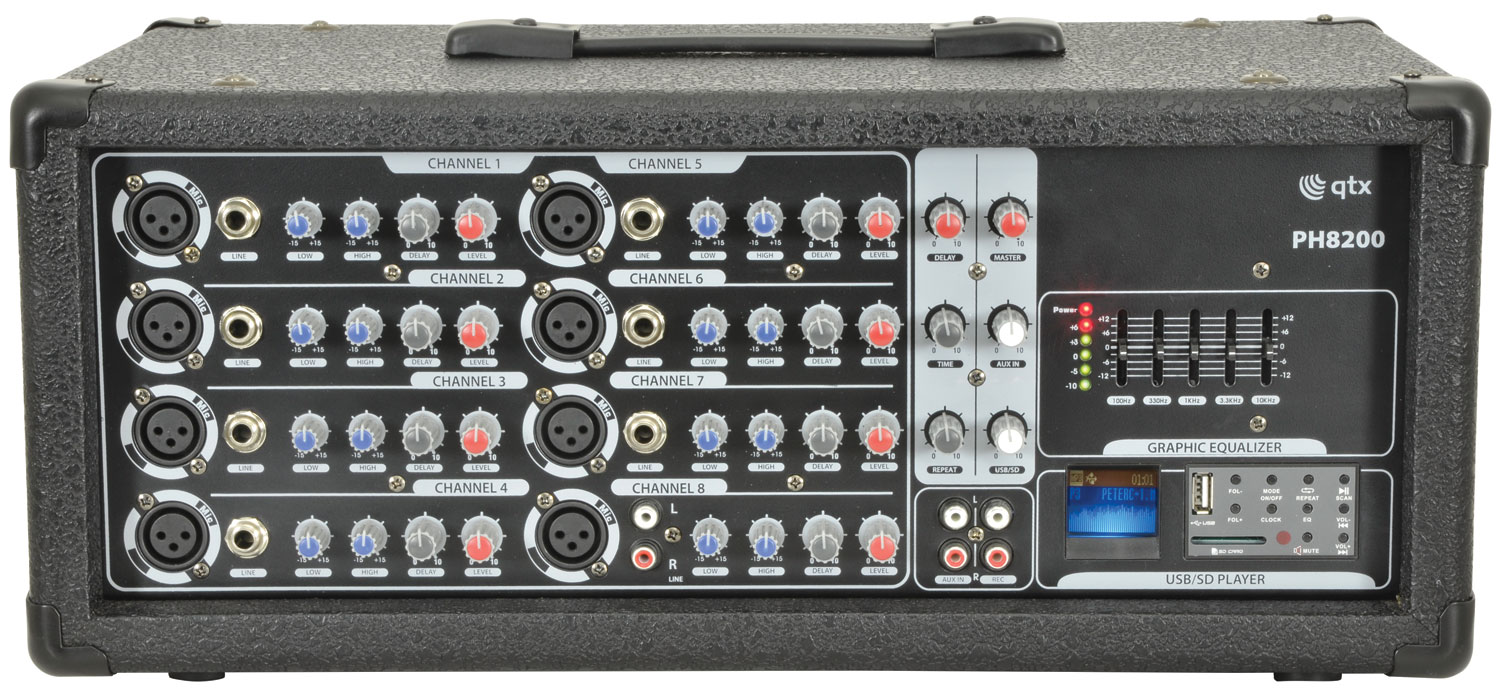

QTX PH8200 PA Head 8 Channel 200W
Powered mixer unit with 8 balanced mic or line inputs and integral 200W power amplifier. Each channel has 2-band EQ and a master 5-band graphic EQ governs overall tone shaping. A built-in digital delay unit can be used to add vocal or special effects and a USB/SD audio player can provide playback of pre-recorded material. Comprehensive PA head units in a convenient and portable format.

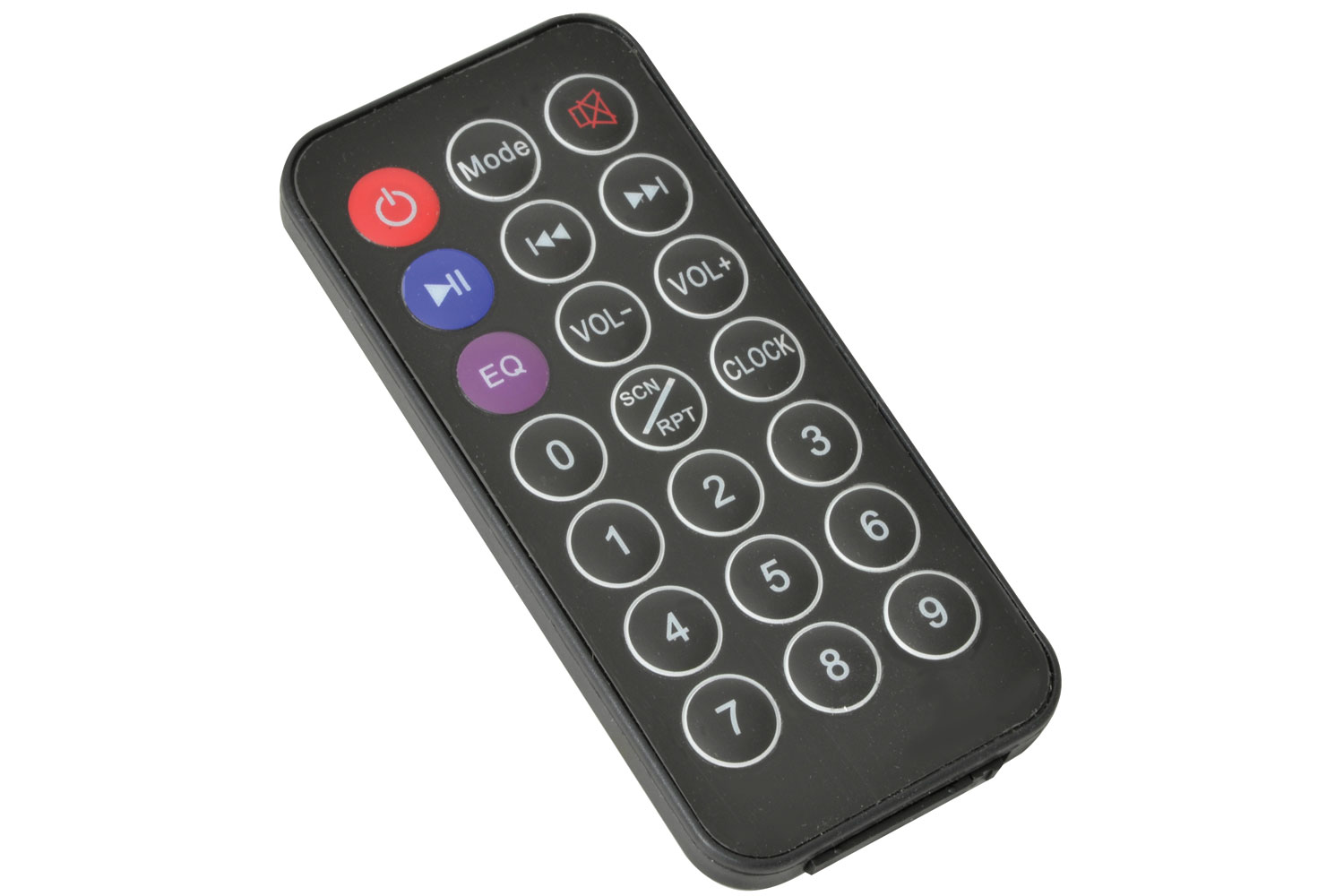

- USB/SD audio player with IR remote
- Master 5-band graphic EQ
- Vocal delay effect
Specification

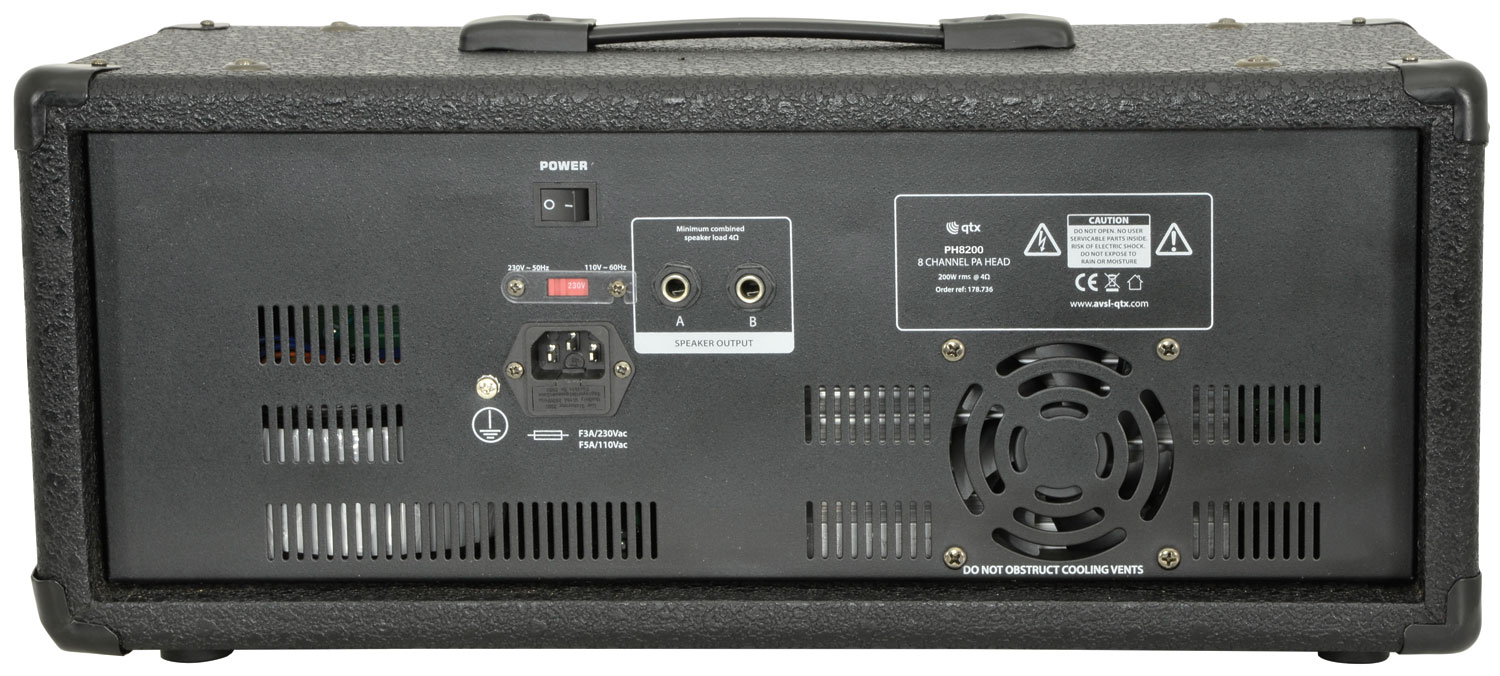

- Power supply – 110/230Vac, 50/60Hz (IEC)
- Channel controls – Low EQ, High EQ, Delay, Level
- Master controls – 5-band EQ, USB/SD, AUX, Master
- Digital audio player – USB or SD input with IR remote & LCD display
- Speaker outputs – 2 x 6.3mm jack (mono pair), 4 Ohms min.
- RCA connectors – Aux input, Rec output
- Channel inputs – 8 x balanced mic/unbalanced line
- Output power rms @ 4 Ohms – 200W
- Output power rms @ 8 Ohms – 130W
- Dimensions – 485 x 210 x 270mm
- Weight – 11.5kg
