Description

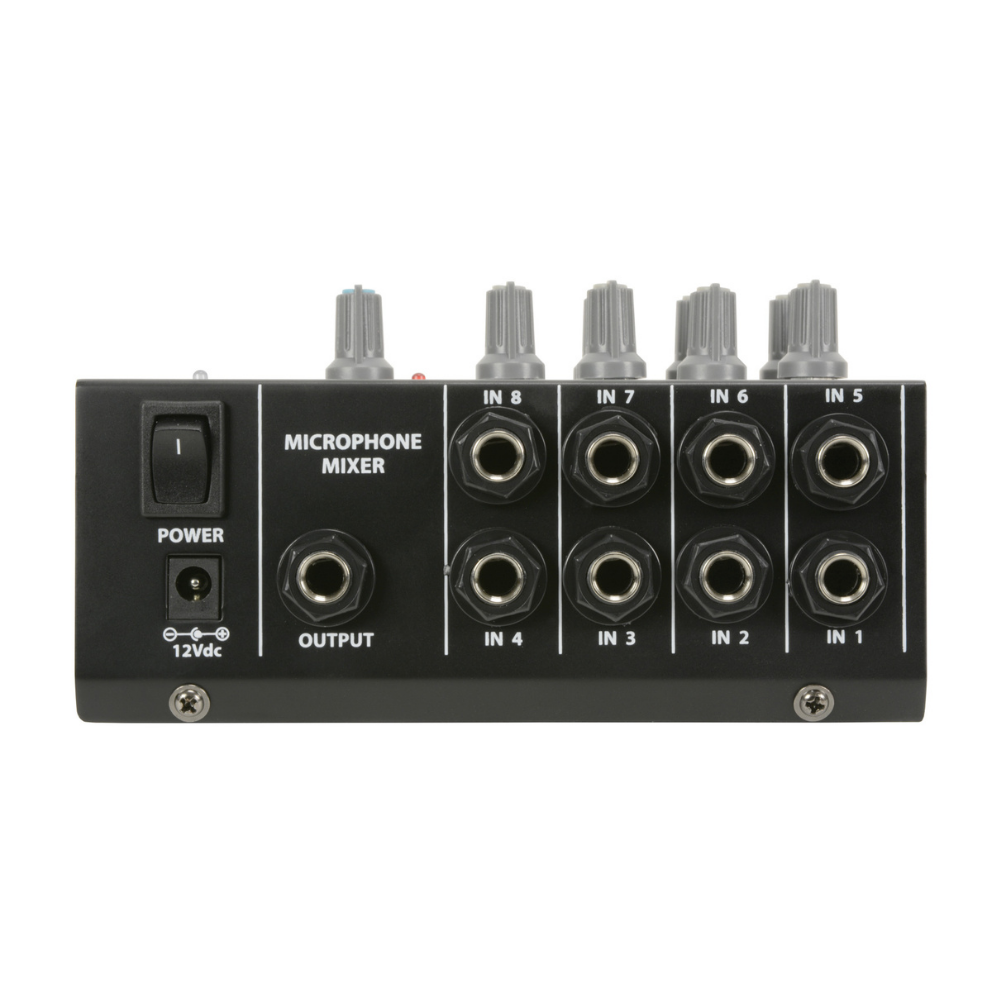

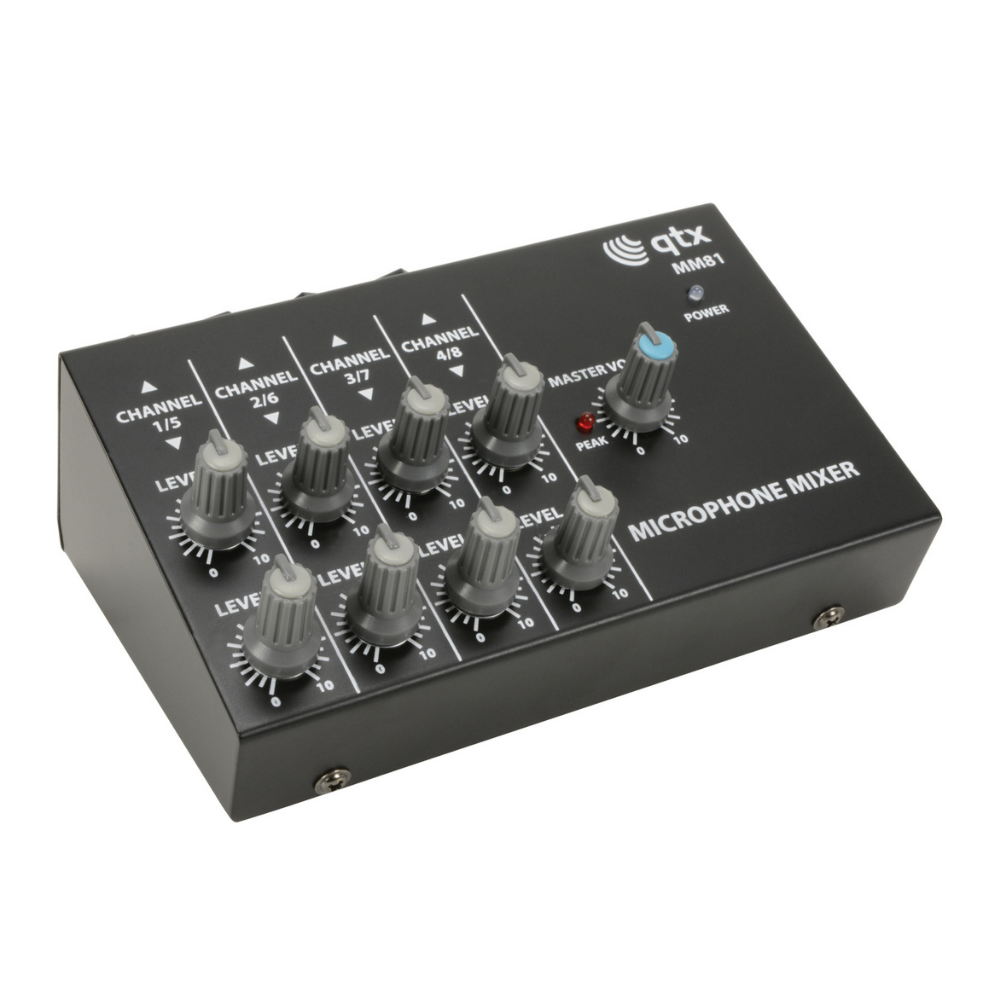

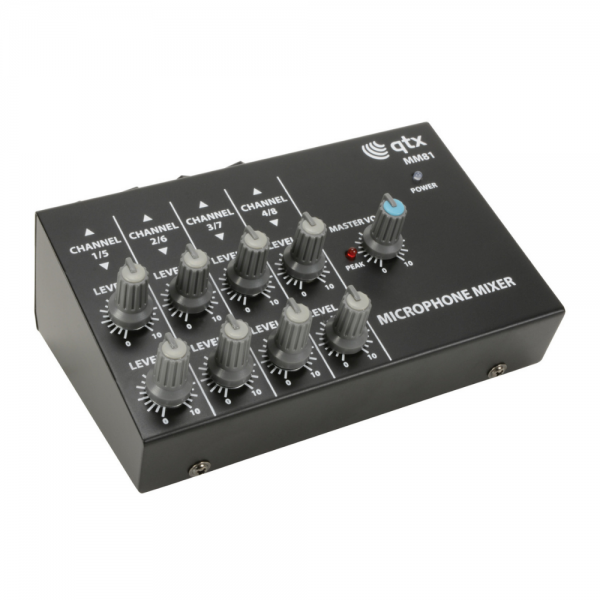

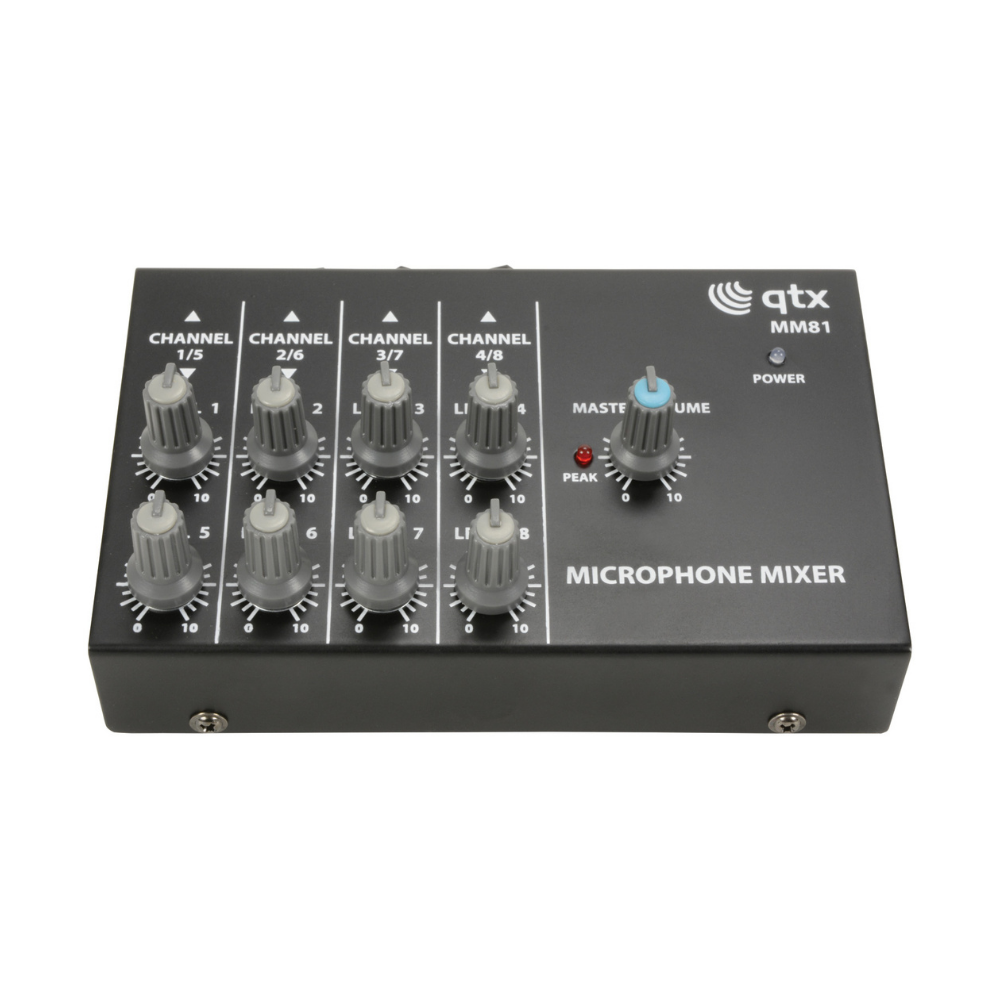

QTX MM81 Mini Microphone Mixer

The QTX MM81 Mini Microphone Mixer is a compact mono microphone mixers with 8 low impedance jack inputs, mixing to a single master jack output. Onboard separate volume controls for each microphone and the master output. Powered by 1 x 9V battery or optional 12Vdc adaptor (not included).

QTX MM81 Mini Microphone Mixer Features:

• Available in 4 or 8 channel versions
• Compact format
• Battery or power adaptor operation
• Can expand existing microphone inputs
• Optional 12Vdc power input (not included).
• Supplied with 9V battery
• Battery: 9V battery (PP3 supplied)
• Power adaptor: 12Vdc, 200mA (optional)
• Input impedance: 3.3k Ohms
• Output impedance: 600 Ohms
• Output : master: 1 x 6.3mm jack
• Dimensions: 150 x 108 x 64
