Description

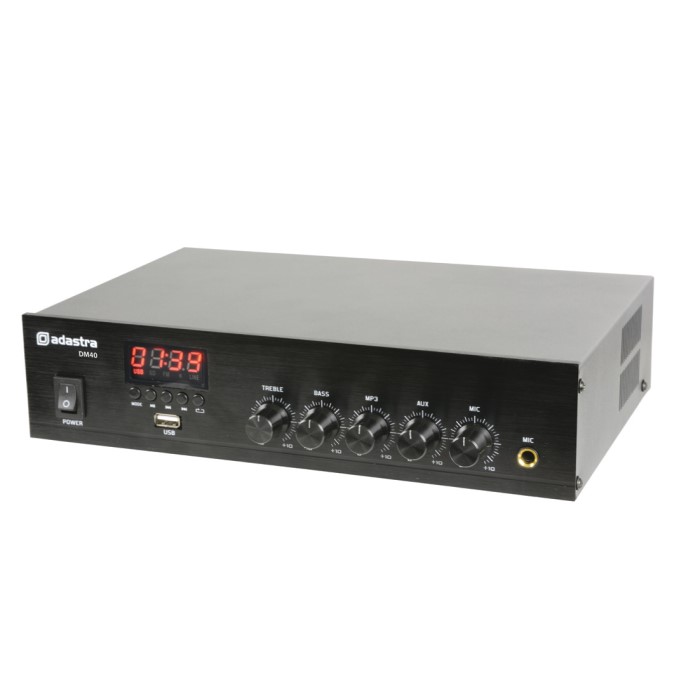

QTX DM40 Mixer Amplifier with USB/FM/Bluetooth
The QTX DM40 Mixer Amplifier with USB/FM/Bluetooth is a 100V line mixer-amp with digital amplifier in a compact housing. Onboard audio player accepts USB media for digital audio or can be tuned to FM radio stations. In Bluetooth mode, a smart phone or tablet may be paired with the DM25 for wireless audio playback. Mono output to either 100V line or 4-16 ohms speaker load is connected via spring terminals on the rear panel. All-in-one solution for small sound installations.
QTX DM40 Mixer Amplifier with USB/FM/Bluetooth Features:
- Bluetooth connectivity
- Integral USB player and FM tuner
- 100V line or 4-16 Ohms operation
- Note: USB port is not for charging smart phones
QTX DM40 Mixer Amplifier with USB/FM/Bluetooth Specifications:
- Power supply: 230Vac, 50Hz (IEC)
- Audio source: USB player, FM tuner and Bluetooth receiver

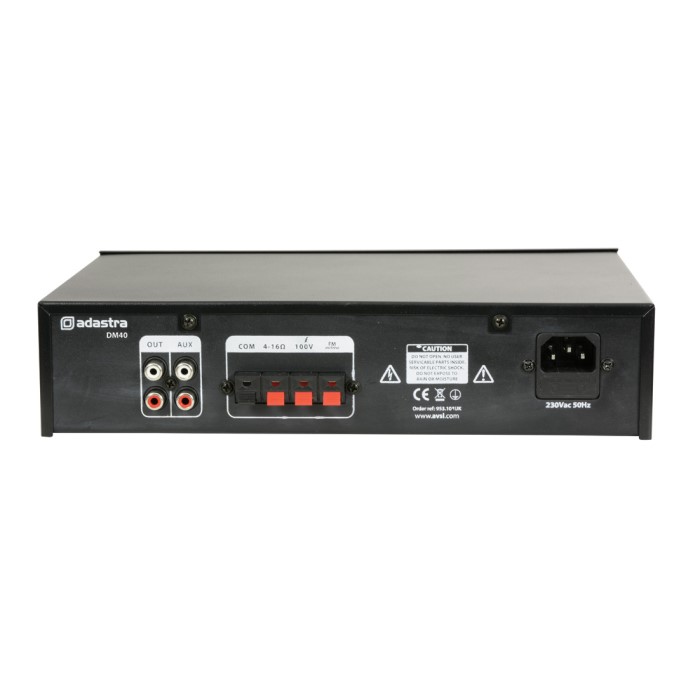

- Speaker : outputs: COM, 100V and 4-16 Ohms (spring terminals)

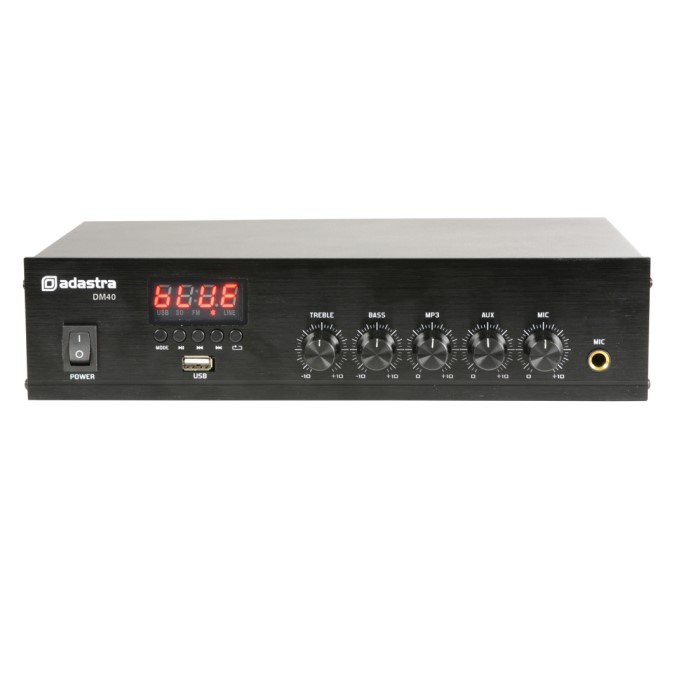

- Controls: Treble, Bass, MP3, Aux, Mic
- Fuse: T1AL
- USB version: USB 2.0 (FAT32, 128GB max.)
- Bluetooth version: 2.1
- Microphone : inputs: 6.3mm jack (unbalanced)
- Line input: 2 x RCA (summed to mono)
- Line output: 2 x RCA
- Antenna connection: Spring terminal
- Dimensions: 280 x 205 x 67mm
