Description

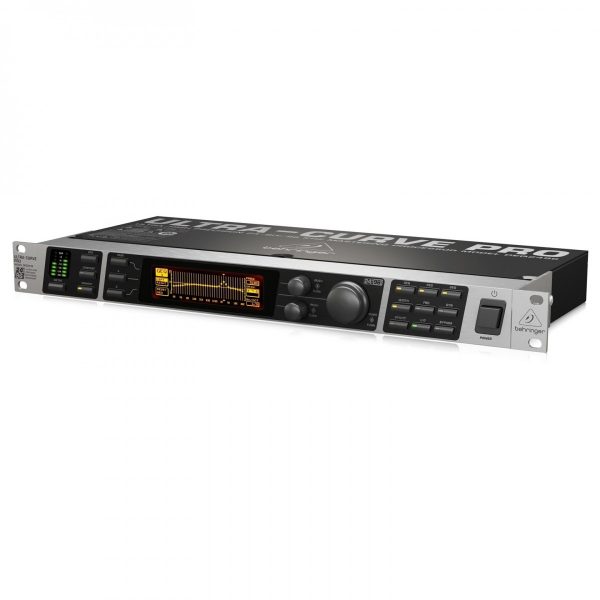

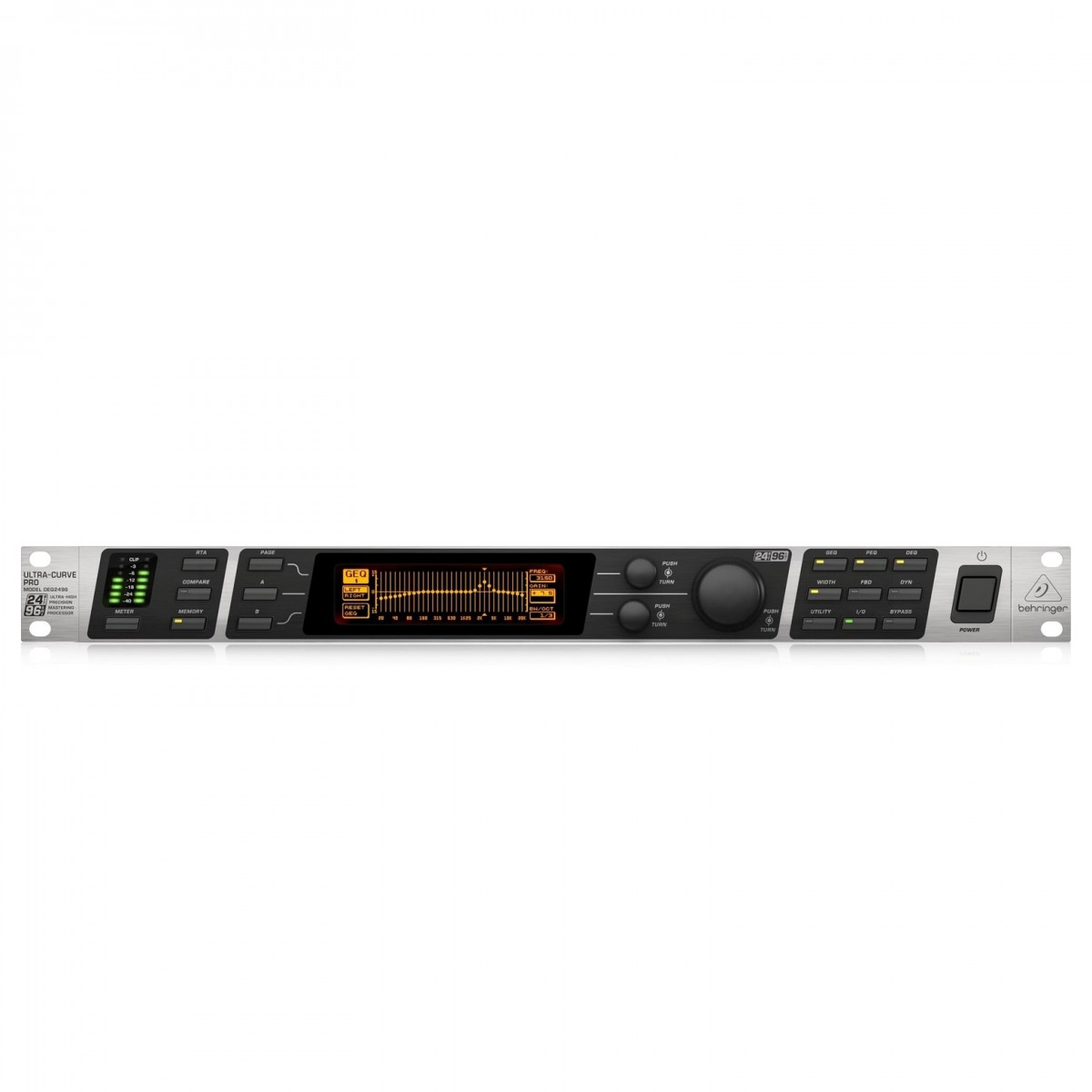

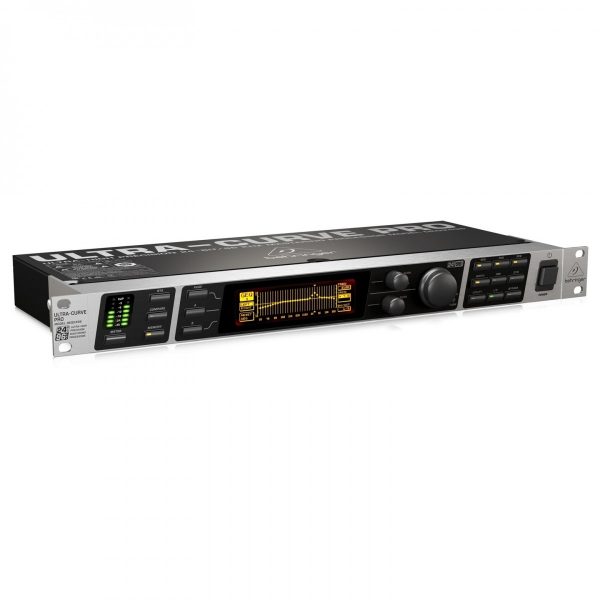

Behringer DEQ2496 Ultracurve Processor

The Behringer DEQ2496 Ultracurve Processor is an all in one solution to equalisation. Featuring a high precision 24-bit/96 kHz equalizer, analyser, feedback destroyer, and mastering processor, you’ve got everything you need to achieve flawless, polished audio.

The Behringer DEQ2496 Ultracurve Processor is the ultimate tool for audiophile quality mastering so you can optimise your sound quality. This compact unit features an array of flexible equalization, plus dynamic and time-correction solutions. You’ll get spacious audio full of nuance and detail. Discover pristine signal integrity from a wide range of balanced inputs and outputs, including XLR, AES/EBU, and S/PDIF. You’ll have everything you need to make your music stand out.

Your gateway to flawless audio

The Behringer DEQ2496 Ultracurve Processor is regarded as the “swiss-army knife” of the mastering world, with a whole array of different features to optimise your sound quality. Featuring a range of flexible equalization options, the DEQ2496 gives you optimal control over your sound, helping you achieve the perfect balance.

Take full control with the Dynamic EQ (DEQ). This function automatically increases or decreases a defined frequency range based on volume level. It’s comprised an equalizer and dynamic processor, this function is great for live performances, allowing you to control any wild frequencies that are likely to affect the sound.

The multiple filter types are also fully controllable, including a convenient bandpass mode for added versatility. You can recall any DEQ settings at any time from the processor or via MIDI.

Behringer DEQ2496 Ultracurve Processor Features:

• Full control of your inputs with 24-bit/96 kHz mastering processor
• Precise audio from 32/40-bit floating-point DSP technology
• Audiophile quality thanks to 24-bit/96 kHz A/D- and D/A converters
• Ultra-wide dynamic range offering 113dB
• Easy to use with four concurrently selectable EQ modules (31-band graphic EQ, 10-band parametric EQ, Feedback Destroyer, and 3 Dynamic EQs per stereo channel)
• Ultra-high resolution 61-band real-time FFT analyser
• Auto EQ function for room and loudspeaker equalization
• Comprehensive parametric control of graphic EQs with the Unique VPQ (Virtual Paragraphic EQ) option
• State-of-the-art compressor/expander with peak limiter per stereo channel
• Perfect for delay line applications with additional stereo imager and stereo delay
• Control your volumes with multi-functional level meters (peak/RMS, VU, and SPL meter with dBA/dBC weighting via RTA/Mic input)
• Plug in and play with 64 user memories for complete setups and/or individual module configurations
• Separate mic/line input with phantom power for RTA and Auto-EQ applications

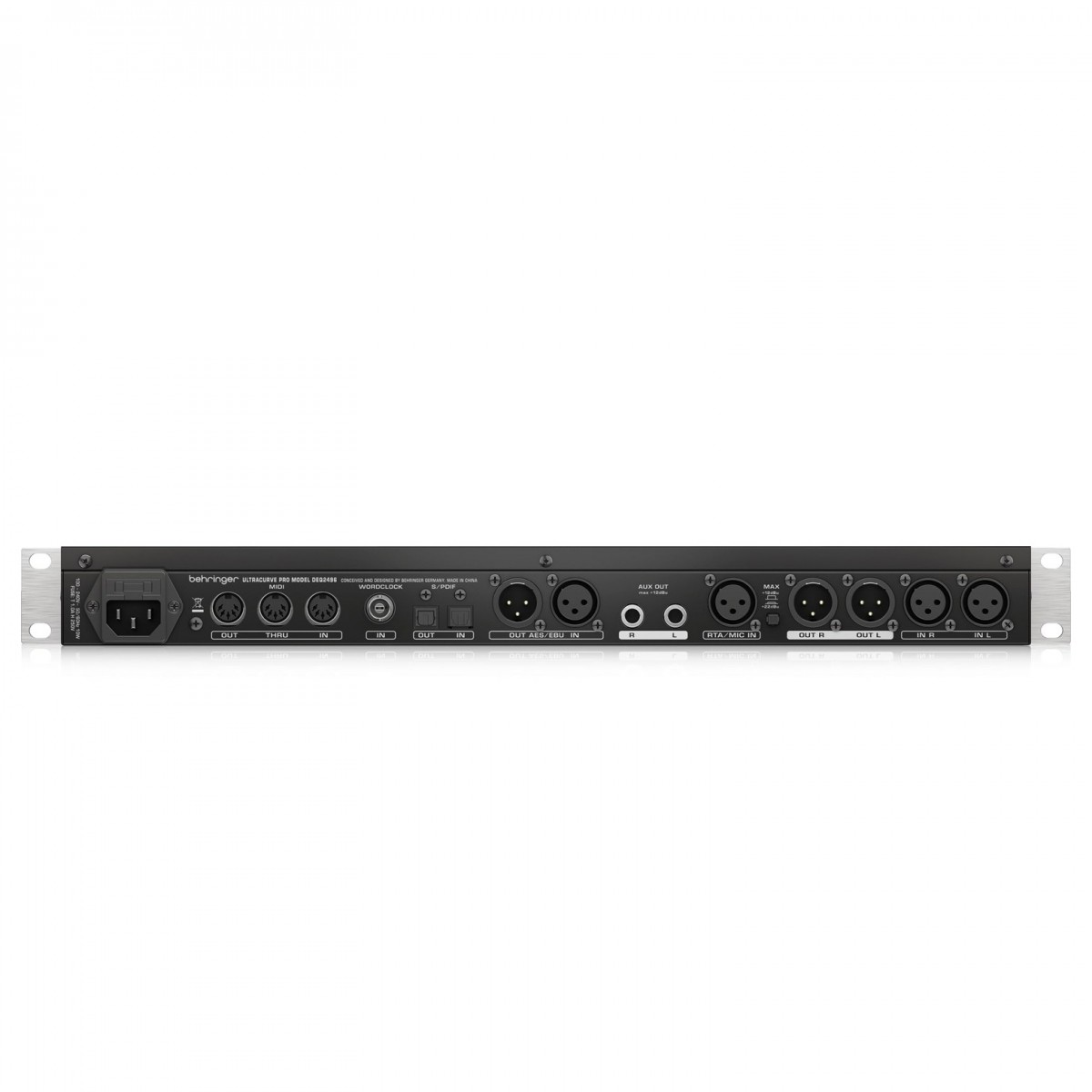

• Pristine signal integrity from balanced inputs and servo-balanced outputs with gold-plated XLR connectors
• Full remote control, preset dumps, and system updates via professional Wordclock input and MIDI connections
• Open architecture allowing future software updates via MIDI
• High-quality components and exceptionally rugged construction ensure long life

Behringer DEQ2496 Ultracurve Processor Specifications:

• Analog Inputs
  • Type: Electronically Balanced
  • Connector: XLR
  • Impedance: 22kΩ at 1kHz
  • Max Input Level: +12 or +22 dBu, Switchable
  • CMRR: 40 dB Typ
• Analog Outputs (Main)
  • Type: Servo-Balanced
  • Connector: XLR
  • Impedance: 100Ω at 1kHz
  • Max Output Level: +12 or +22 dBu, Switchable
• Analog Outputs (AUX)
  • Type: Servo-Balanced
  • Connector: 1/4″ Stereo Jack
  • Impedance: 100Ω at 1kHz
  • Max Output Level: +12 dBu
• Frequency Range: 10Hz – 35kHz (-1 db) @ 96kHz Sampling Rate
• Signal-To-Noise Ratio: > 113 dB Main Input/Output, > 107 dB AUX Output
• THD: 0.007 Percent Typ. @ +4 dBu, 1kHz, Unity Gain
• Crosstalk:
• Bypass: Relay, Hard-Bypass In Case Of Power Failure
• Measurement Microphone Input
  • Type: Electronically Balanced
  • Input Impedance: 2kΩ
  • Max Input Level (LINE): Variable From -14 dBu to +22 dBu
  • Max Input Level (MIC): Variable From -42 dBV/Pa to -6 dBV/Pa
  • Phantom Power: +15V Switchable
• Digital Input 1
  • Type: XLR Transformer-Balanced
  • Standard: AES/EBU or S/PDIF
  • Input Impedance: 110Ω
  • Nominal Input Level: 0.2 – 5V Peak-To-Peak
• Digital Input 2
  • Type: TOSLINK Optical
  • Standard: AES/EBU or S/PDIF
• Digital Output 1
  • Type: XLR Transformer-Balanced
  • Standard: AES/EBU or S/PDIF
  • Impedance: 110Ω
  • Output Level: 3.5 V Peak-To-Peak
• Digital Output 2
  • Type: TOSLINK Optical
  • Standard: AES/EBU or S/PDIF
  • Sync Input
  • Type: BNIC
  • Standard: Worldclock (1 x Sample Rate)
  • Input Impedance: 50kΩ
  • Nom Level: 2 – 6 V Peak-To-Peak
• MIDI Interface: 5-Pole DIN Jacks In/Out/Thru, cf. MIDI Implementation Chart
• Digital Processing
  • Converter: 24-Bit Delta-Sigma, 64/128 Oversampling
  • Sample Rate: 44.1, 48, 88.2, 96kHz
• Graphic Equaliser
  • Type: Digital 1/3-Oct EQ
  • Frequency Range: 20Hz – 20kHz, 31 1/3-oct Bands According to ISO Frequencies
  • Bandwidth: 1/3-oct
  • Control Range: +15 to -15dB
• Display
  • Type: 320 x 80 Dot-Matrix LC Display
  • Backlighting: LED, Orange
  • Contrast: Adjustable
• Memory: 64 Presets With 16-Character Names, Single Modules Can Be Recalled & Saved
• Power Supply: 85 – 250V, 50/60Hz
• Power Consumption: 10W
• Weight: 2.24 kg
• Dimensions
  • Height: 44.5 mm
  • Width: 215 mm
  • Depth: 482.6 mm
