Description

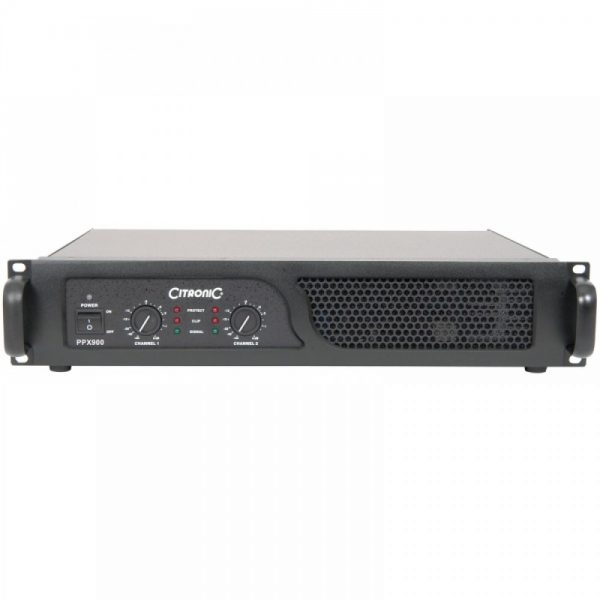

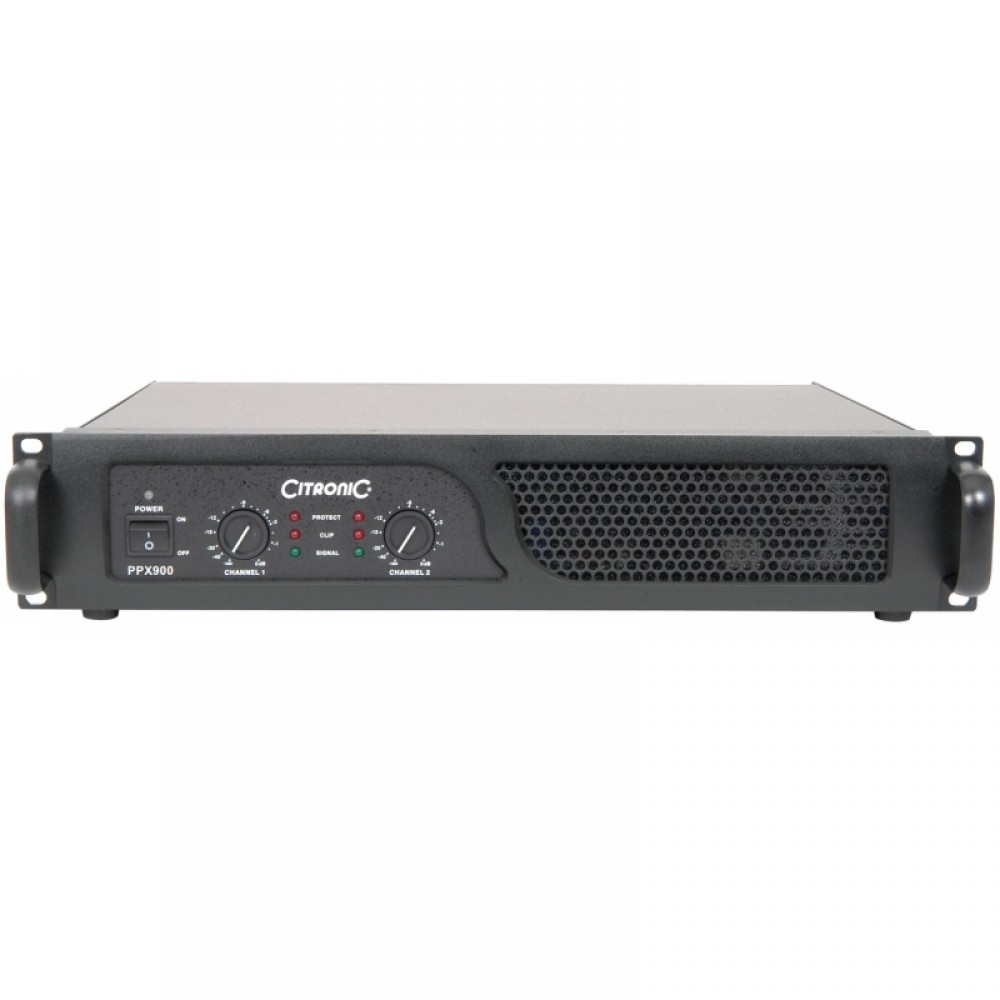

Citronic PPX900 900 Watt Power Amplifier
19″ rackmount 2U power amplifiers with fan cooling and output protection. Balanced inputs via 6.3mm jack or XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. Switchable ground …
- Bridge mode for high power mono operation
- Removable handles for low profile install
- Switchable clip limiter
Coming in a 19″ rack mount design, the Citronic PPX900 is loaded with active fan cooling to ensure a consistent airflow and cool operation. With protective circuitry around the output stages and onboard limiters the Citronic PPX is PA amplifier that gives you control over potential adversities in PA speaker operation.
The Citronic PPX900 offers 450 Watts RMS per channel output and switchable bridge mode operation with upto 900 Watts RMS in mono mode.
Convenient 6.3mm (1/4″) jack and XLR input connections mean the Citronic PPX600 will easily slot into any mobile DJ, PA or band speaker system while the binding post (bare-wire) and speakon output connections allow for connection of pretty much any PA speaker.
Specifications:
- Bridge mode for high power mono operation
- Removable handles for low profile install
- Switchable clip limiter
- Power supply 240Vac, 50Hz – IEC mains
- Controls Level channel 1, level channel 2, ground, mode, clip limiter
- Input impedance 20k ohms
- Frequency response 5Hz – 50kHz
- Total harmonic distortion 0.05%
- Slew rate 40V/us
- Damping factor >400
- Protection Short-circuit, overload, D.C. and thermal protect
- Output power 2 x 450Wrms
- Power RMS @ 4 ohms 450W + 450W
- Power RMS @ 8 ohms 300W + 300W
- Power RMS bridge @ 8 ohms 900W
- Dimensions 88 x 483 x 428mm
- Weight 13.8kg
