Description

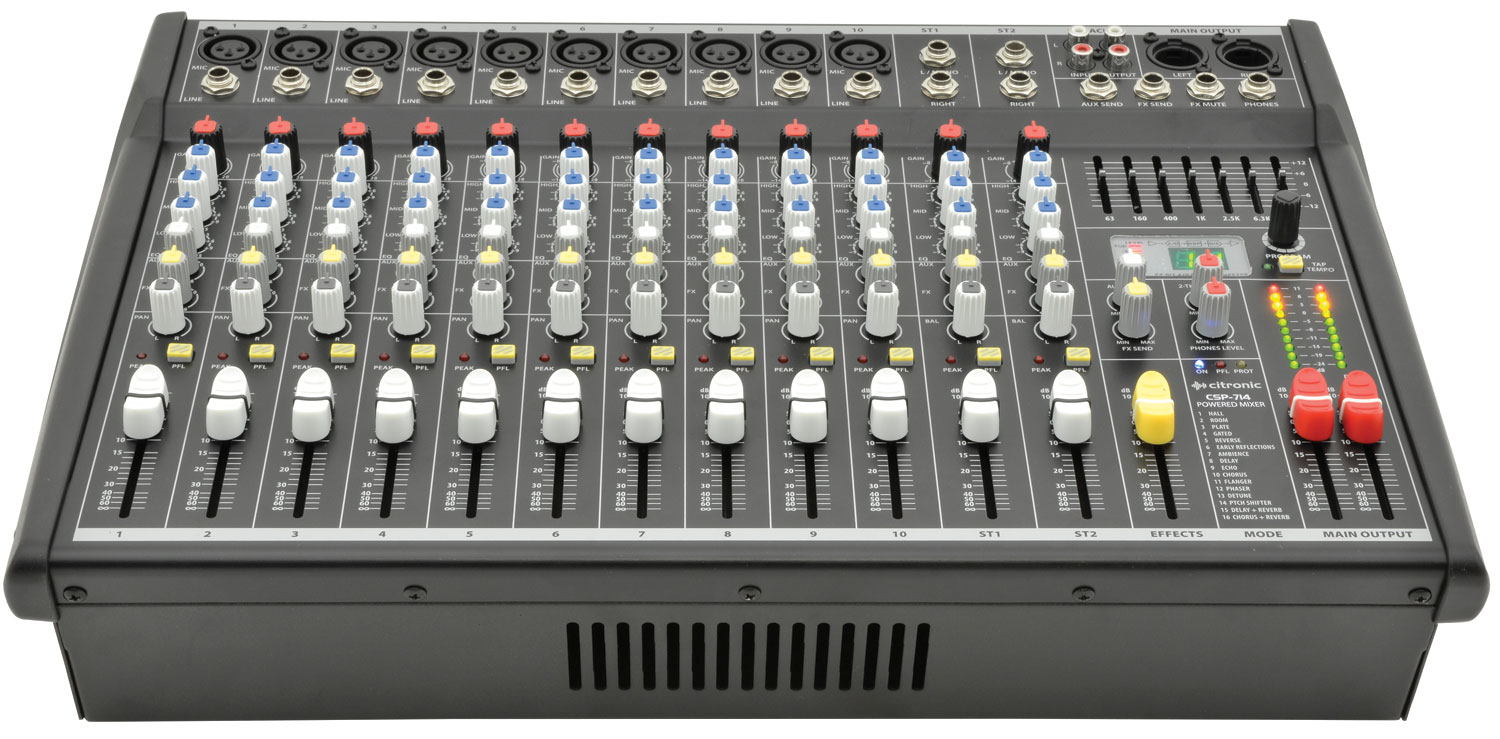

The Citronic CSP 714 Powered Mixer 700 Watt is a powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.
Citronic CSP 714 Powered Mixer 700 Watt Features:
- 24-bit 16 program DSP effects
- 48V phantom power for XLR inputs
- 3-band EQ per channel
- 7-band global graphic EQ
- Internal stereo power amplifier
- Balanced main outputs
Citronic CSP 714 Powered Mixer 700 Watt Specifications :
- Power supply:Â Â Â Â Â Â Â Â Â Â Â Â Â 230Vac 50Hz (IEC)
- Phantom power:Â Â Â Â Â Â Â Â Â Â +48V (XLR inputs)
- Input level:Â Â Â Â Â Â Â Â Â Â Â Â Â Â +24dBu
- Output level :            line +26dBu
- Frequency response:Â Â Â Â Â 20Hz-30kHz (0.5dB)
- CMRR:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â >74dB (mic 1kHz)
- THD +N:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â <0.01% (channel to main out)
- Crosstalk:Â Â Â Â Â Â Â Â Â Â Â Â Â Â >85dB (fader mute), >82dB (channel)
- Noise rms :Â Â Â Â Â Â Â Â Â Â Â Â Â 22Hz-22kHz-122dBu (EIN), -82dBu (mix)
- EQ:                    high  12kHz ±15dB shelving
- EQ:                    mid  2.5kHz ±15dB band pass
- EQ:                    low   80Hz ±15dB shelving
- Input impedance :Â Â Â Â Â Â Â mic (balanced)2k Ohms
- Input impedance :Â Â Â Â Â Â line (balanced)10k Ohms
- Sensitivity :Â Â Â Â Â Â Â Â Â Â Â Â mic-60 to +14dBu
- Sensitivity :Â Â Â Â Â Â Â Â Â Â Â Â line-40 to +14dBu
- 2-track:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 2 x RCA in & out (-2dBu)
- Effects:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 16 program DSP (24-bit sigma-delta, 40khz)
- Output impedance:Â Â Â Â Â <75 Ohms
- Headphone output:Â Â Â Â 6.3mm jack, 30-600 Ohms
- Speaker outputs:Â Â Â Â Â Â L+R SPK connectors
