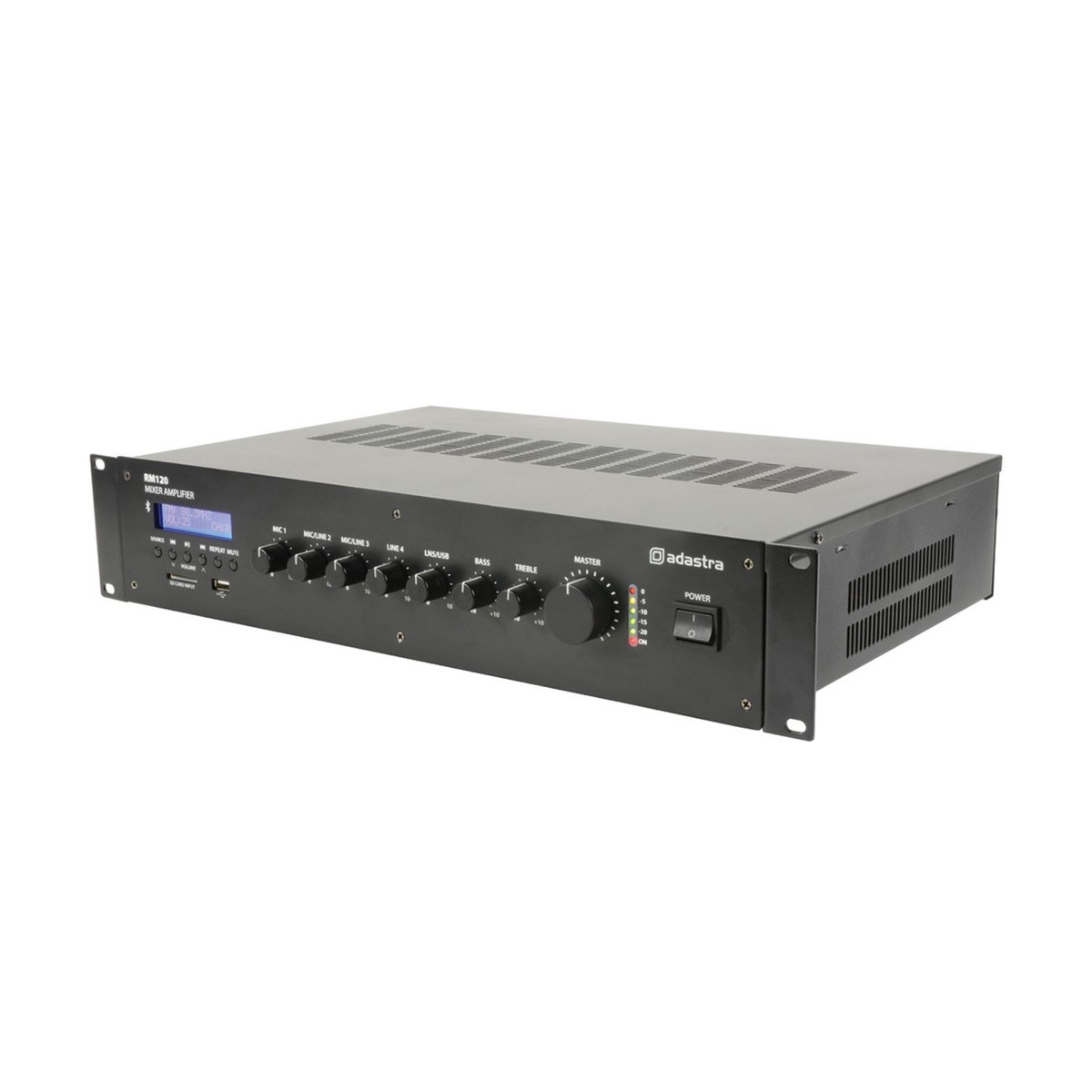

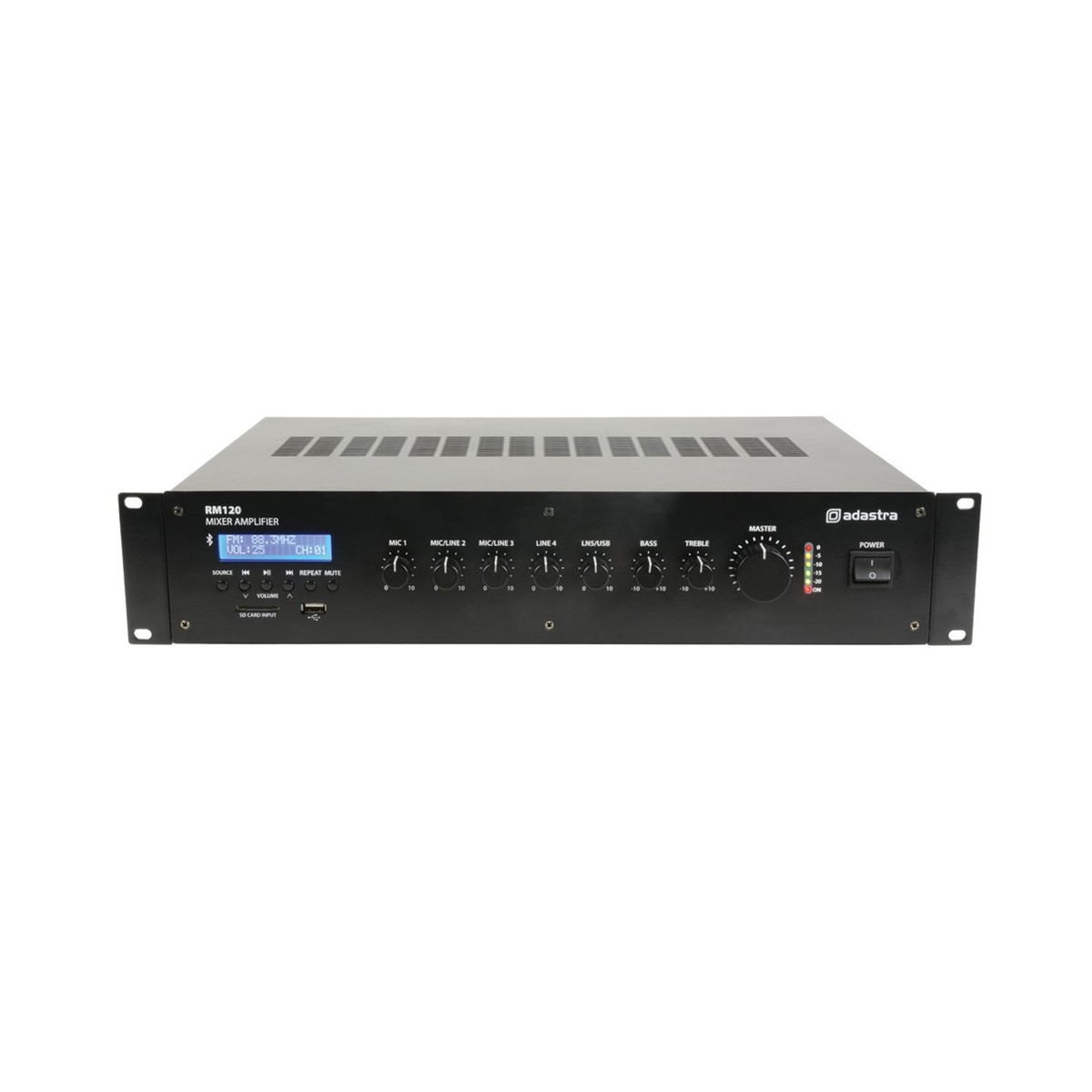

Adastra RM120 5 Channel 100V Mixer Amplifier
With the Adastra RM120 5-Channel 100V Mixer Amplifier you’ll have all the tools you need. XLR, 1/4″ Jack, and RCA inputs all feature on this versatile rack-mountable mixer amplifier. The RM120 boasts a wealth of playback options. From a built-in FM radio tuner, to easily accessible SD/USB ports. This mixer amplifier is sure to add a whole host of features to your PA system. Playback from any device. Complete with Bluetooth connectivity, the RM120 allows simple wireless input. Whether you’re facilitating live music or overseeing a presentation you’ll have no shortage of options with the Adastra RM120.
Versatile Mixer Amplifier
Easily integrate the Adastra RM120 into any existing PA system. This multifunctional mixer amplifier can be used as either a 100V line amplifier or a low-impedance amp. The RM120 features adjustable two-band EQ settings, perfect for those quick corrections needed in live situations.
Packed with Features
Featuring XLR (including switchable phantom power), 1/4” Jack, and RCA inputs, the RM120 gives you a wealth of options. While a built-in media player boasts an FM radio tuner and easily accessible front-mounted SD/USB ports. Meaning you’ll be ready to accommodate any type of media that comes your way.
With built-in ducking, this mixer amplifier is ideal for vocal use. The RM120’s ‘voiceover’ feature automatically lowers the level of any backing tracks when a signal is detected from the mic.
Bluetooth Connectivity
Play audio with ease direct from any Bluetooth-enabled device. Now you can be ready to offer backing tracks from any smartphone or tablet, making the Adastra RM120 perfect for live venues, schools, and houses of worship.
Adastra RM120 5 Channel 100V Mixer Amplifier Includes:
- 100V mixer-amplifier
- Rack-mounting ears and hardware
- IEC power lead
Adastra RM120 5 Channel 100V Mixer Amplifier Features:
- 2U 19” rack mountable (rack ears supplied)
- XLR input with switchable +20V phantom power
- 2 x mic/line inputs, 2 x RCA line inputs, and 1 x RCA line output
- Switchable ‘voiceover’ feature
- Inbuilt media player with SD, USB and Bluetooth inputs
- Integrated FM radio tuner
- 100V line or 4-16 ohm speaker output
- 24V emergency mute contacts
- Option for mains or 24Vdc power
- Editable Bluetooth ID for unique pairing
Adastra RM120 5 Channel 100V Mixer Amplifier Specifications:
- Mains Power: 110/240Vac, 50/60Hz (IEC)
- Power Output: 120Wrms

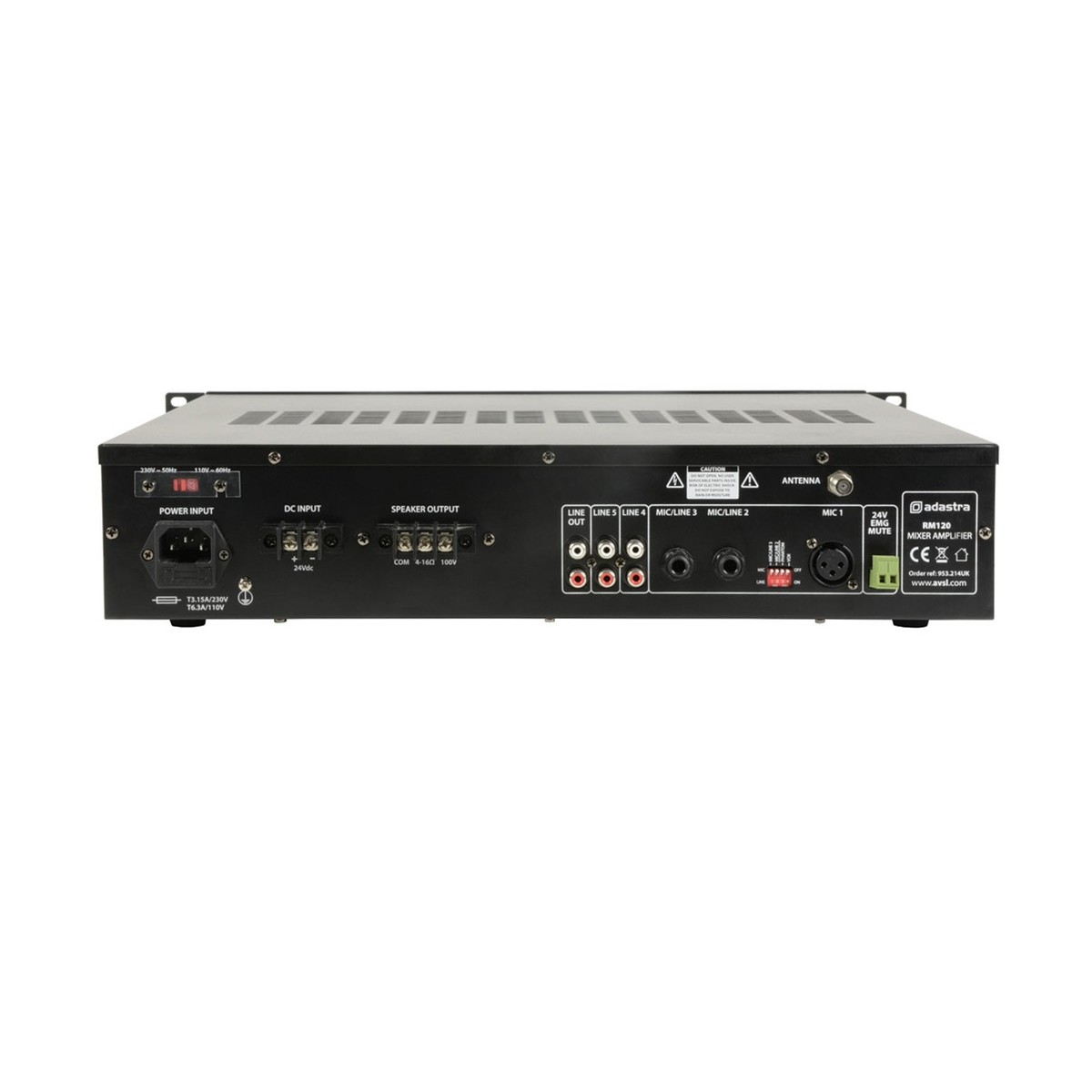

- Speaker Outputs: 100V zone / 8 Ohms / COM terminals
- DC Power: 24Vdc (screw terminals)
- Inputs: Mic XLR, 2 x mic/line jack, 2 x RCA line
- Input Sensitivity: Mic 1 (balanced): -53dBV; Line (unbalanced): -15dBV (-18.5dBV line 5)
- Input Impedance: Mic 1: 5k Ohms; Inputs 2-5: 1k Ohms
- Line Output: RCA
- Controls: Mic 1, Mic/Line 2+3, Line 4+5, Bass, Treble, Master Volume
- EQ (Bass): 100Hz ±10dB
- EQ (Treble): 10kHz ±10dB
- Rear Panel Switches: Phantom Power, Vox, Mic/Line (2+3)
- Phantom Power: +20V (Mic 1 input)
- Audio Source: USB/SD player, FM tuner, Bluetooth receiver
- Emergency Control: 24V contacts – mute all except Mic 1 when triggered
- Bluetooth Version: 2.0
- THD: <1.0
- Dimensions: 433 x 320 x 89 mm
- Weight: 8.36 kg
