Description

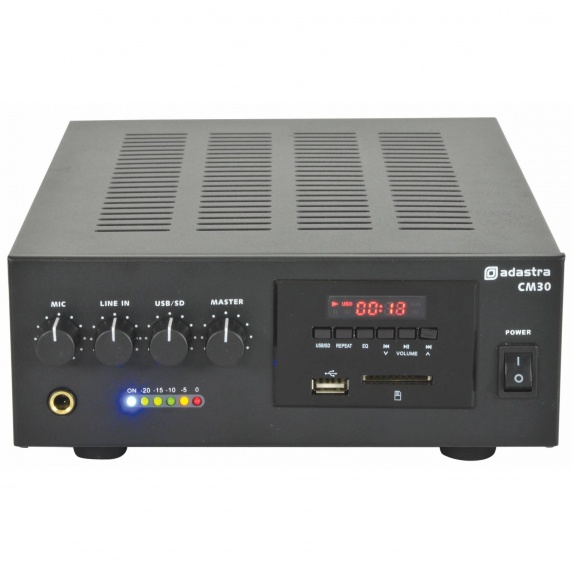

Adastra CM30 Compact 100V Line Mixer Amplifier
The Adastra CM30 Compact 100V Line Mixer Amplifier is a 100V line amplifier with an integral mixer and digital audio player in a half width 2U housing. Inputs for microphone, line input and USB/SD player are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 ohms speaker load is connected via screw terminals on the rear panel. Designed as a convenient solution for small to medium PA installations.
Adastra CM30 Compact 100V Line Mixer Amplifier Features:
- Microphone & line inputs
- Integral USB and SD card player
- 100V line or 8 ohms operation
Adastra CM30 Compact 100V Line Mixer Amplifier Specifications:
- Power Supply: 230Vac, 50Hz
- DC Power: 12Vdc option (Screw Terminals)
- Output: Signal: 2 x RCA
- Outputs: Speaker: 100V/ 8 ohms
- Inputs: Microphone (6.3mm Jack) & Line (RCA)
- Controls: Mic, Line, USB/SD, master volume
- Audio Source: Integral USB/SD Digital audio player
- THD: <1.0%
- Dimensions: 329 x 210 x 84mm
