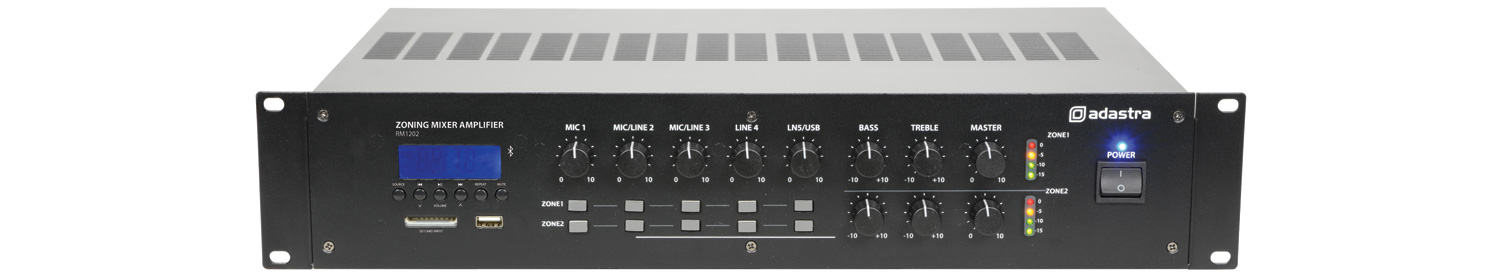

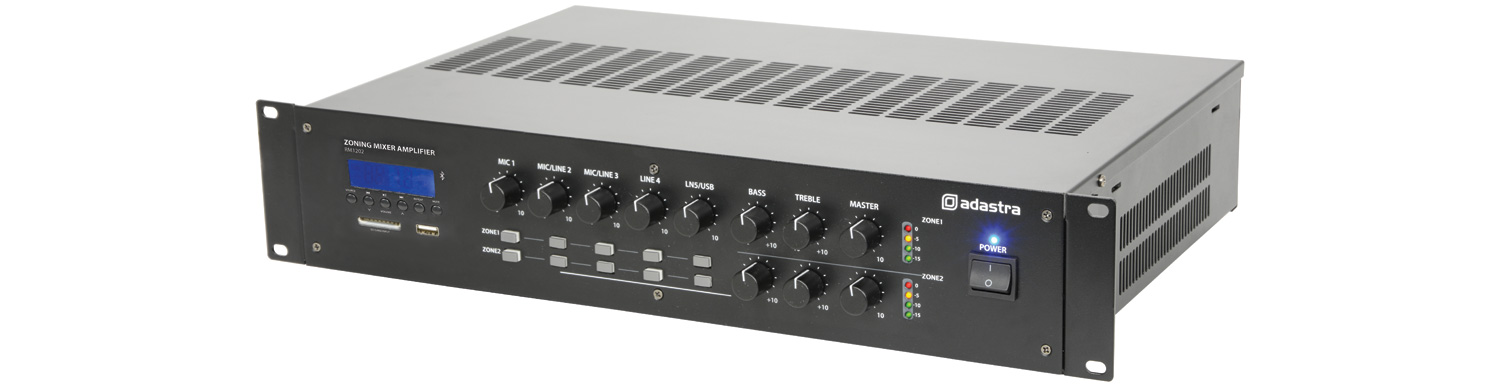

Adastra 2 Zone Mixer Amplifier

529.00

Includes:

  • Integral USB/SD/FM audio player
  • Internal Bluetooth receiver
  • 100V or 4/8 Ohms operation

Description

The Adastra 2 Zone Mixer Amplifier includes 2 separate 120 watt outputs to 100V or 4/8 Ohms speakers. Inputs for mic, 2 x mic/line and 2 line inputs with an integral USB/SD/FM player and Bluetooth receiver can be enabled independently to either of the 2 zones. Mic 1 channel has a variable override and switchable phantom power for use with condenser microphones. Designed for installations where independent paging and audio to 2 separate zones is needed.

Adastra 2 Zone Mixer Amplifier Features:

  • Integral USB/SD/FM audio player
  • Internal Bluetooth receiver
  • 100V or 4/8 Ohms operation
  • Can be configured as a stereo 100V amplifier
  • 5 input channels
  • Switchable +20V phantom power
  • Switchable priority for channel 1

Adastra 2 Zone Mixer Amplifier Specs:

  • Power supply:  110-230Vac, 50/60Hz (IEC)
  • Power output:  2 x 120W rms
  • Audio source:  USB/SD/FM/BT audio player

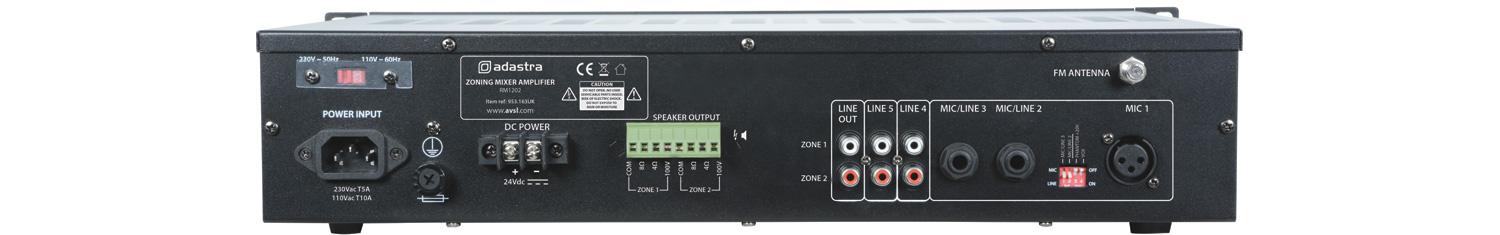

  • Inputs:  1 x mic (XLR), 2 x mic/line (jack), 2 x line (twin RCA)
  • Zone outputs:  line 2 x RCA
  • Zone outputs: speaker 2 x terminal outputs 100V/8 Ohms/4 Ohms/com
  • Phantom power:  +20V switchable to Mic.1 XLR
  • THD:  <0.76% @ 1kHz
  • Input impedance:  1k Ohms (mic/line)
  • Input sensitivity:  -11dB (line), -46dB (mic)
  • SNR:  84dB (line), 82dB (mic)
  • Bluetooth version2.1
  • Frequency response:  100Hz – 20kHz
  • Dimensions:  483 x 320 x 88mm
  • Weight:  11.25KG

Additional information

Weight 13 kg
Dimensions 54 × 40 × 15 cm
