Description

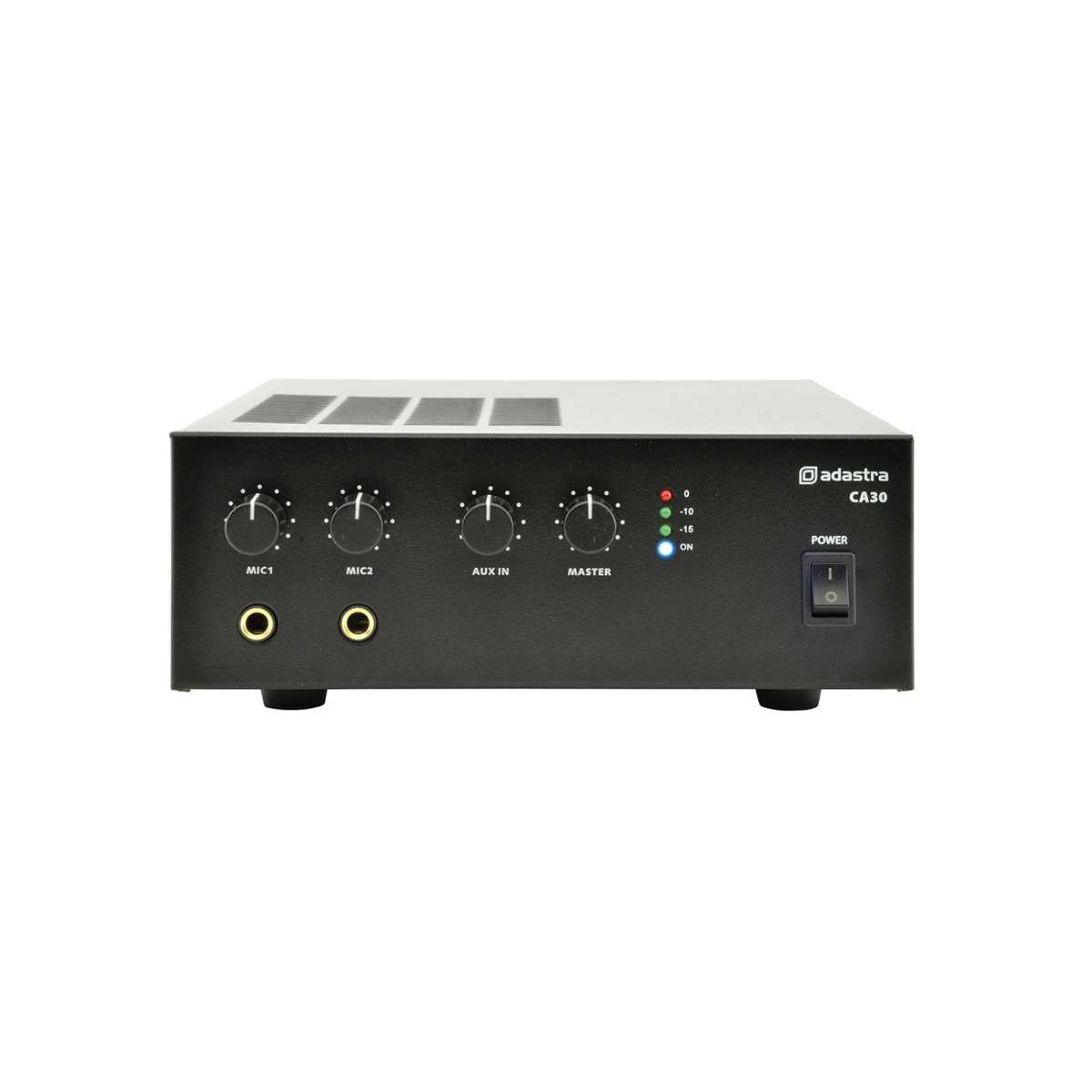

100V line amplifiers with an integral mixer in a half width 2U housing. Inputs for microphones and line input are governed by front panel volume controls with a mixed line output. Mono output to either 100V line or 8 ohms speaker load is connected via a screw terminal connector on the rear panel. Providing cost-effective public address in small to medium installations.

• Inputs for microphones and auxiliary line
• 30 Watts
• 100V or 8 Ohms operation

• Power supply- 230Vac, 50Hz (IEC)
• Input : line – 2 x RCA
• Input impedance : mic – 1.8k Ohms
• Output : signal – 2 x RCA

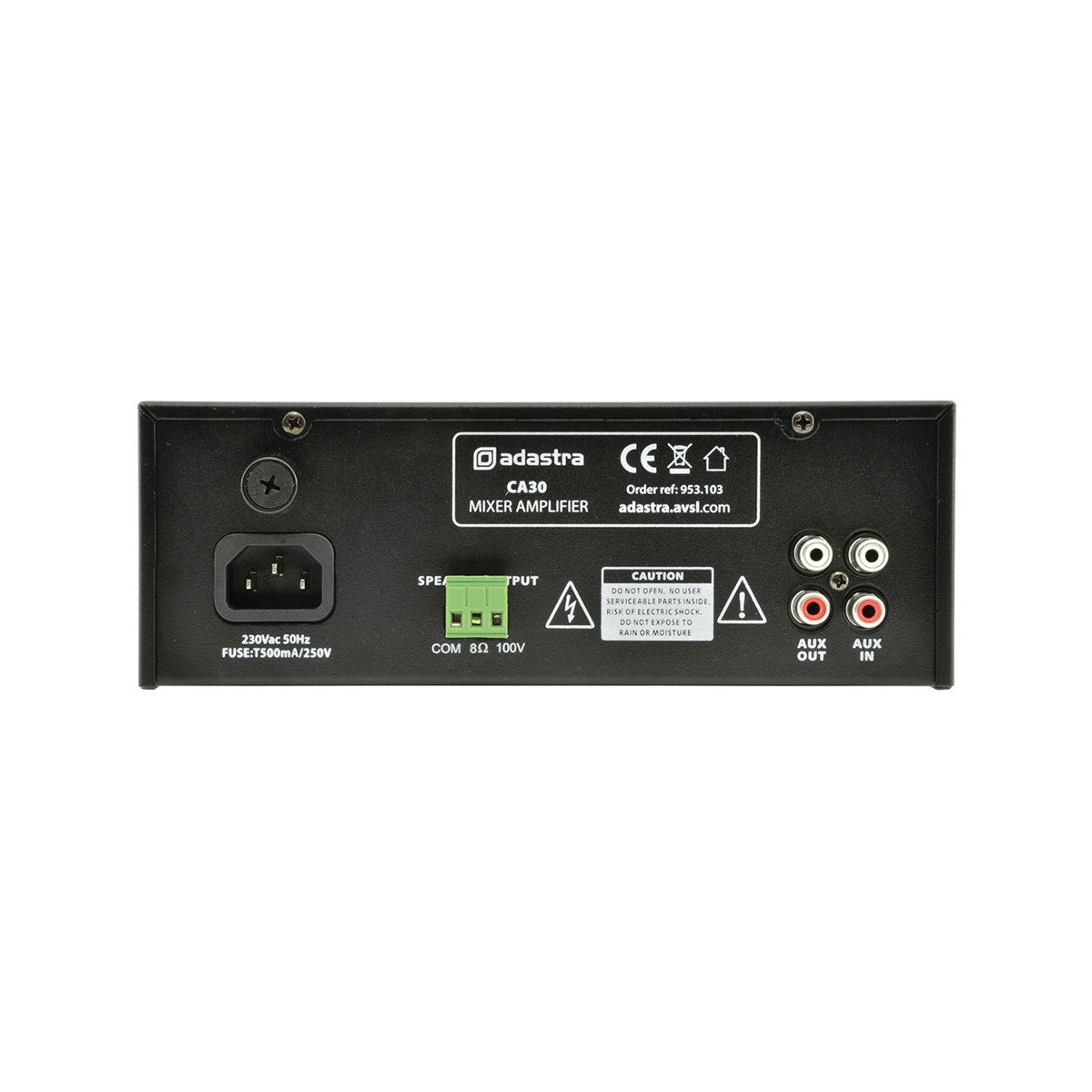

• Outputs : speaker – COM / 8 ohms / 100V terminal connector
• THD – <1%
