Description

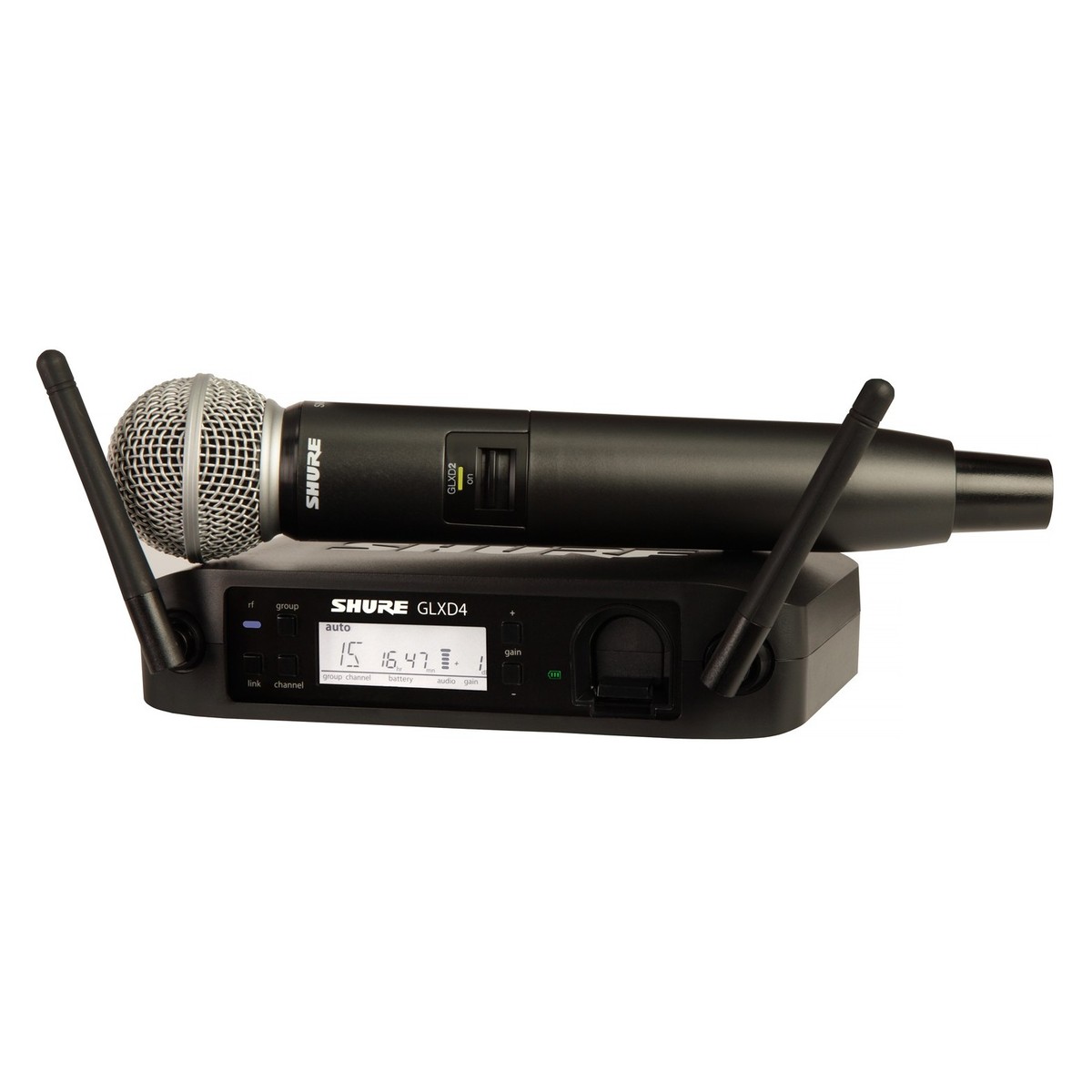

Shure GLXD24/SM58 Digital Handheld Wireless SystemSM58

The Shure GLXD24UK/SM58 Digital Wireless Microphone System combines professional-quality sound with reliable and user-friendly operation. The GLXD24UK/SM58 wireless system consists of a GLXD4 digital wireless receiver with automatic frequency management and true digital diversity, along with an GLXD2/SM58 handheld microphone transmitter. The legendary SM58 microphone capsule is regarded as the industry-standard and features an uniformed cardioid pickup pattern that captures vocals with warmth and clarity. Offering up to 16 hours of continuous use and an operating range of up to 30 metres, the Shure GLXD24UK/SM58 digital wireless microphone system is perfect for any live performance venue.

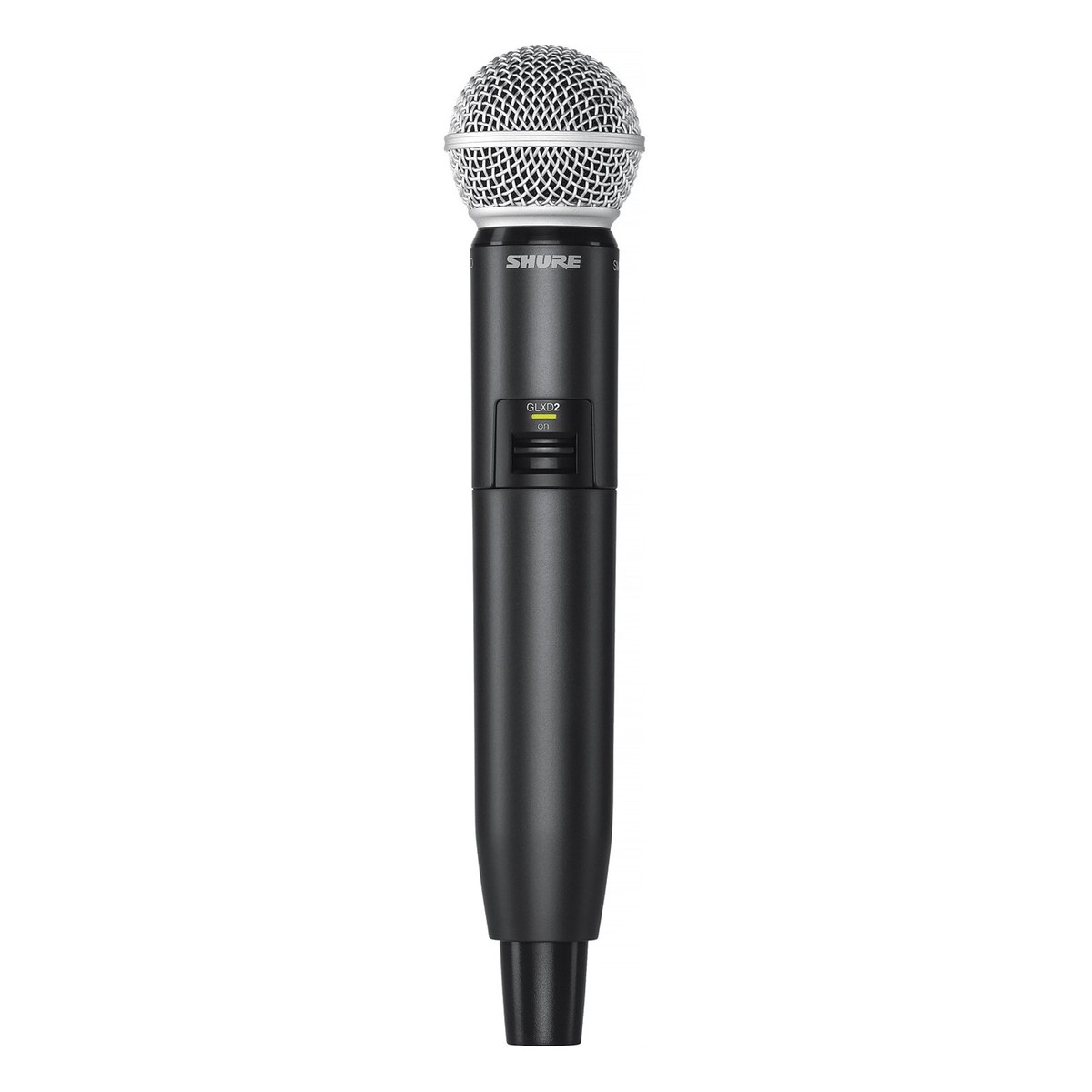

Dynamic Cardioid Microphone

The Shure SM58 Vocal Microphone is ideal for both recording and performing, specifically designed for vocal applications. The uniform cardioid pickup pattern isolates the main sound source, allowing your voice to cut through the mix by minimising background noise and reducing feedback. The rugged construction features a pneumatic shock-mount system and steel mesh grille that will last for years whilst still providing consistent performance and reliability. Tuned to accentuate the warmth and clarity of lead and back-up vocals, the Shure SM58 has a tailored vocal response for a sound which is a world standard.

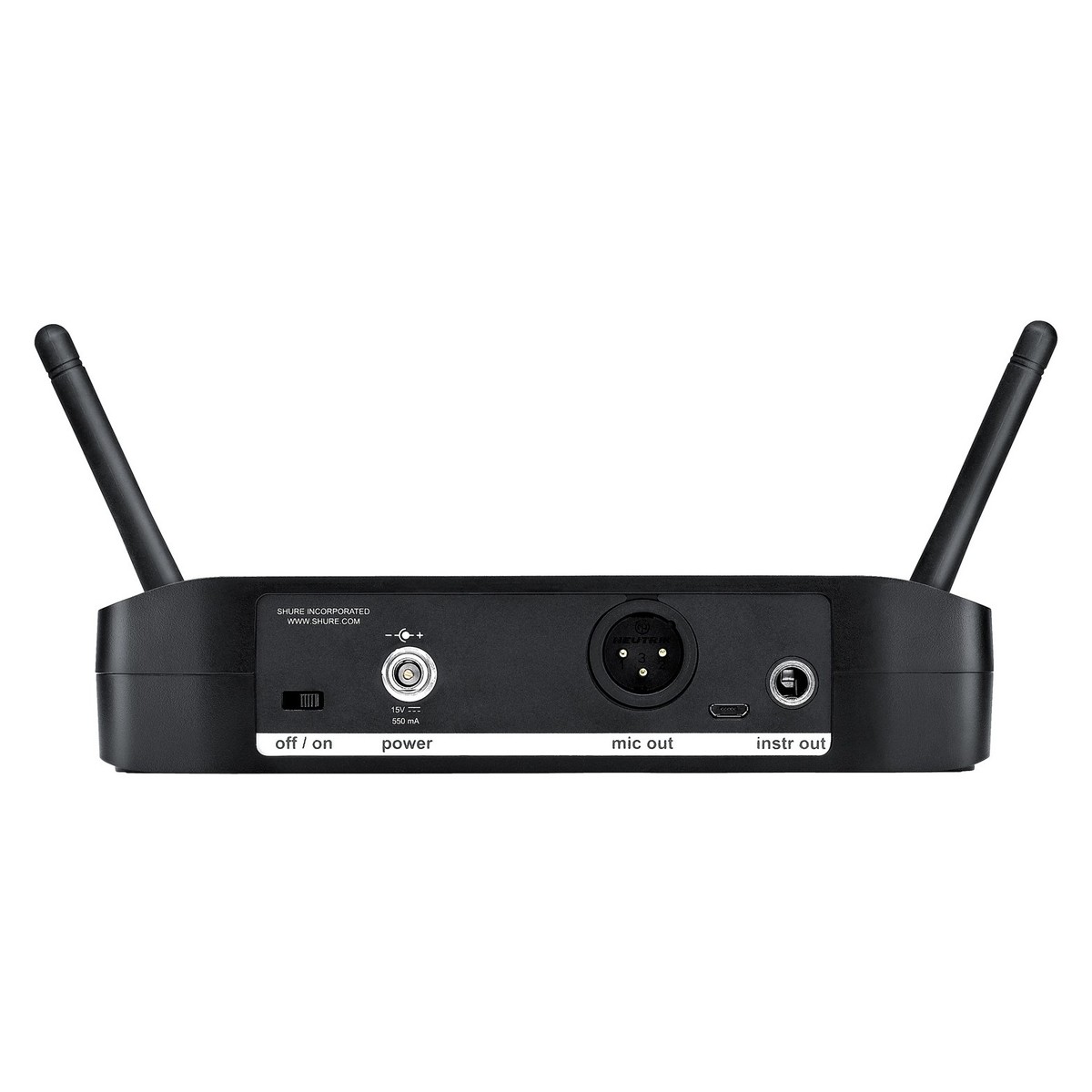

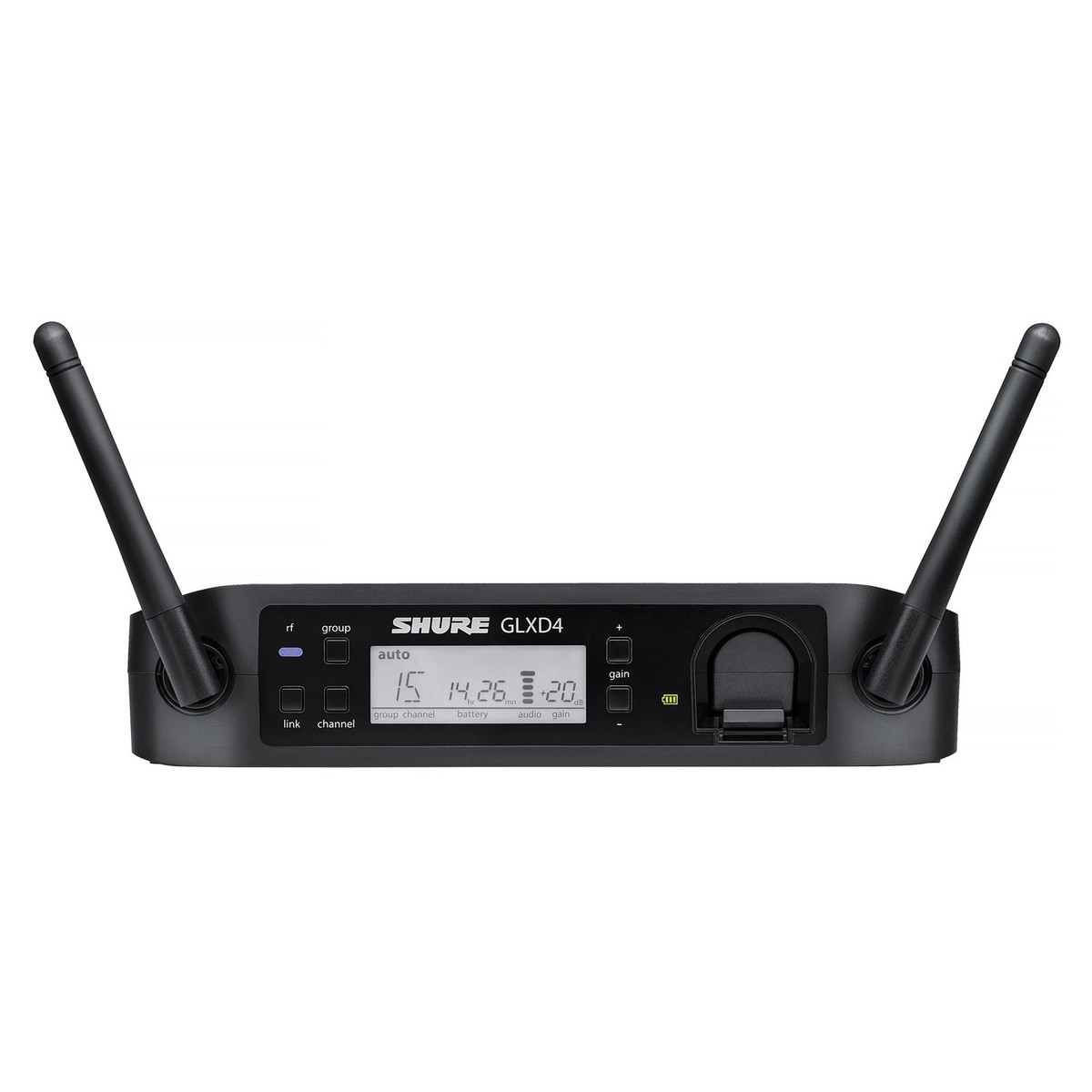

GLXD4 Wireless Receiver

The Shure GLXD4UK receiver features LINKFREQ Automatic Frequency Management technology which greatly improves signal stability and reliability. The GLXD4 system works by continuously scanning the available frequency spectrum and automatically selecting the best open channel, with no audio interruption. Combined with true diversity operation, which compares and selects the strongest signal from the device’s two independent antennae, the Shure GLXD4 system ensures that the receiver always delivers consistent, crystal-clear audio.

Rechargeable Lithium Ion Batteries

The GLXD4UK features Shure’s proprietary Lithium Ion batteries, which provide up to 16 hours of continuous use. These batteries can be charged using a variety of car, wall or USB chargers (sold separately).

Features

GLXD24/SM58

• 20m – 30m operating range
• Automatically links with GLX-D wireless receivers for seamless frequency changing
• Integrated microphone capsule design
• Sophisticated design with durable, lightweight construction
• Lightweight and rugged construction
• Two-colour transmitter status indicator LED
• Custom Lithium-ion batteries provide up to 16 hours of continuous use
• 15 minute quick charge for up to 1.5 hours of performance

SM58

• Frequency response tailored for vocals, with brightened midrange and bass rolloff
• Uniform cardioid pickup pattern isolates the main sound source and minimises background noise
• Pneumatic shock-mount system cuts down handling noise
• Effective, built-in spherical wind and pop filter
• Supplied with break-resistant stand adapter which rotates 180 degrees
• Legendary Shure quality, ruggedness and reliability
• Cardioid (unidirectional) dynamic
• 50Hz to 15kHz frequency response

GLXD4

• Operates globally license-free in the 2.4GHz frequency range
• Allows operation of up to 8 compatible systems (depending on operation mode)
• LINKFREQ quickly identifies the best open channel and enables the transmitter to automatically follow any frequency change on the receiver without signal interruption by automatically switching to backup frequencies
• Hi-resolution LC display
• Transmitter battery status monitor in hours and minutes
• Identifies transmitter from receiver and vice versa
• Remote adjustable transmitter gain control
• 20Hz to 20kHz frequency range
• 120dB dynamic range
• Integrated battery charging port for proprietary Shure Lithium-Ion transmitter batteries
• XLR and 1/4” output connectors
• Custom lithium-ion batteries provide up to 16 hours of continuous transmitter use
  • 3 hour charge = up to 16 hours use
  • 1 hour charge = up to 6 hours use
  • 30 minute charge = up to 3 hours use
  • 15 minute charge = up to 1.5 hours use

Specifications

GLXD4

• Operating Frequency: 2.4GHz
• Receiver Type: Single Channel
• Scan Functions: Channel Scan and Group Scan
• Sync Functions: Pairing (2.4GHz and DECT)
• Included Antenna: External 1/2 Wave
• Battery Status: Leveled Battery Life Indication (HH:MM)
• RF Sensitivity: -88dBm for 12dB SINAD, Typical
• Phantom Power Protection: Yes
• Spurious Rejection: 35dB, Typical
• Antenna Input Impedance: 50 Ohms
• Tuning Range: 2400MHz
• Display: Multi-Function LCD
• Remote Control: Yes
• Receiver Housing: Moulded ABS
• Power Supply: External
• Weight: 286g
• Dimensions: 40mm x 183mm x 117mm (H x W x D)

SM58

• Frequency Response: 50Hz – 15kHz, Tailored
• Sensitivity: -54.50dBV/Pa – 1.85mV/Pa
• Transducer Type: Dynamic
• Polar Pattern: Cardioid
• Switchable Low Cut: No
• Connectors: XLR
• Weight: 298g
• Dimensions: 162mm x 51mm x 51mm (H x W x D)
