Shure GLXD24/BETA 58 Digital Wireless Microphone System

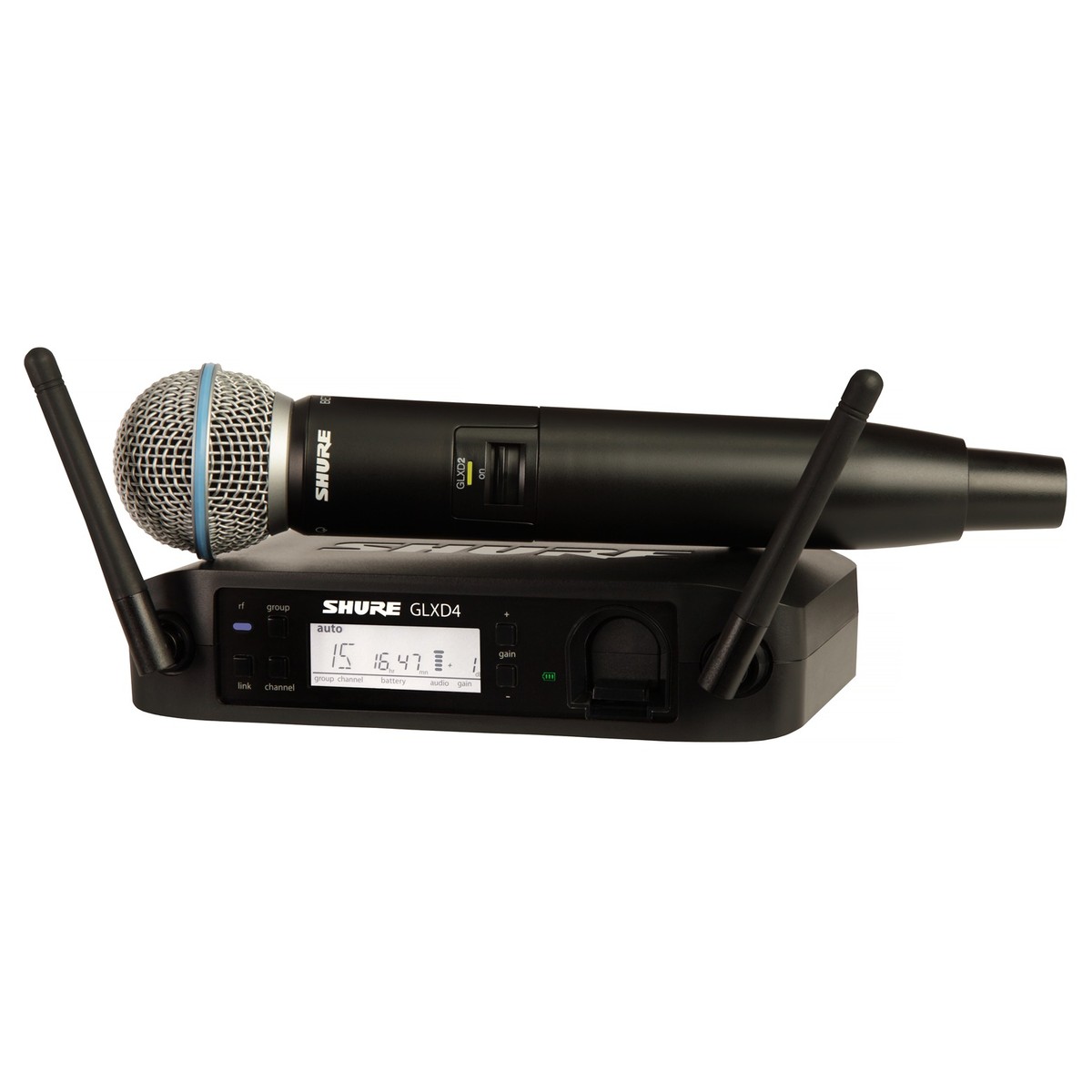

The Shure GLXD24UK/B58 is a wireless microphone system that combines LINKFREQ frequency management with battery rechargeability and classic Shure audio performance. The wireless system operates within the license free 2.4GHz frequency range so you can experience the incredible live performances and studio recordings immediately. The frequency response has been tailored for use with vocals and the supercardioid pick-up pattern of the transmitter provides a sound free of interference from other sources. The GLXD system includes the B58 digital handheld transmitter and GLXD4 wireless receiver.

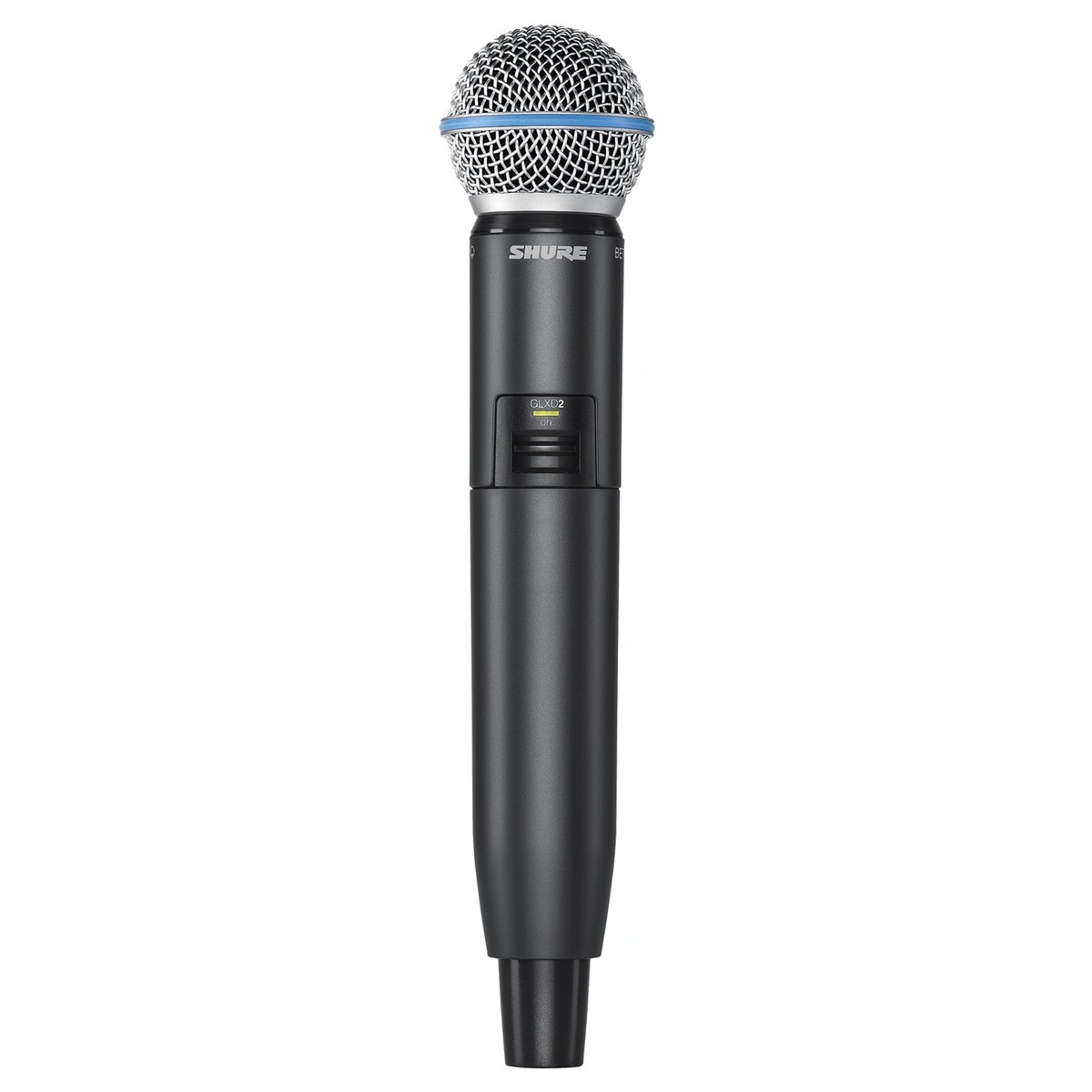

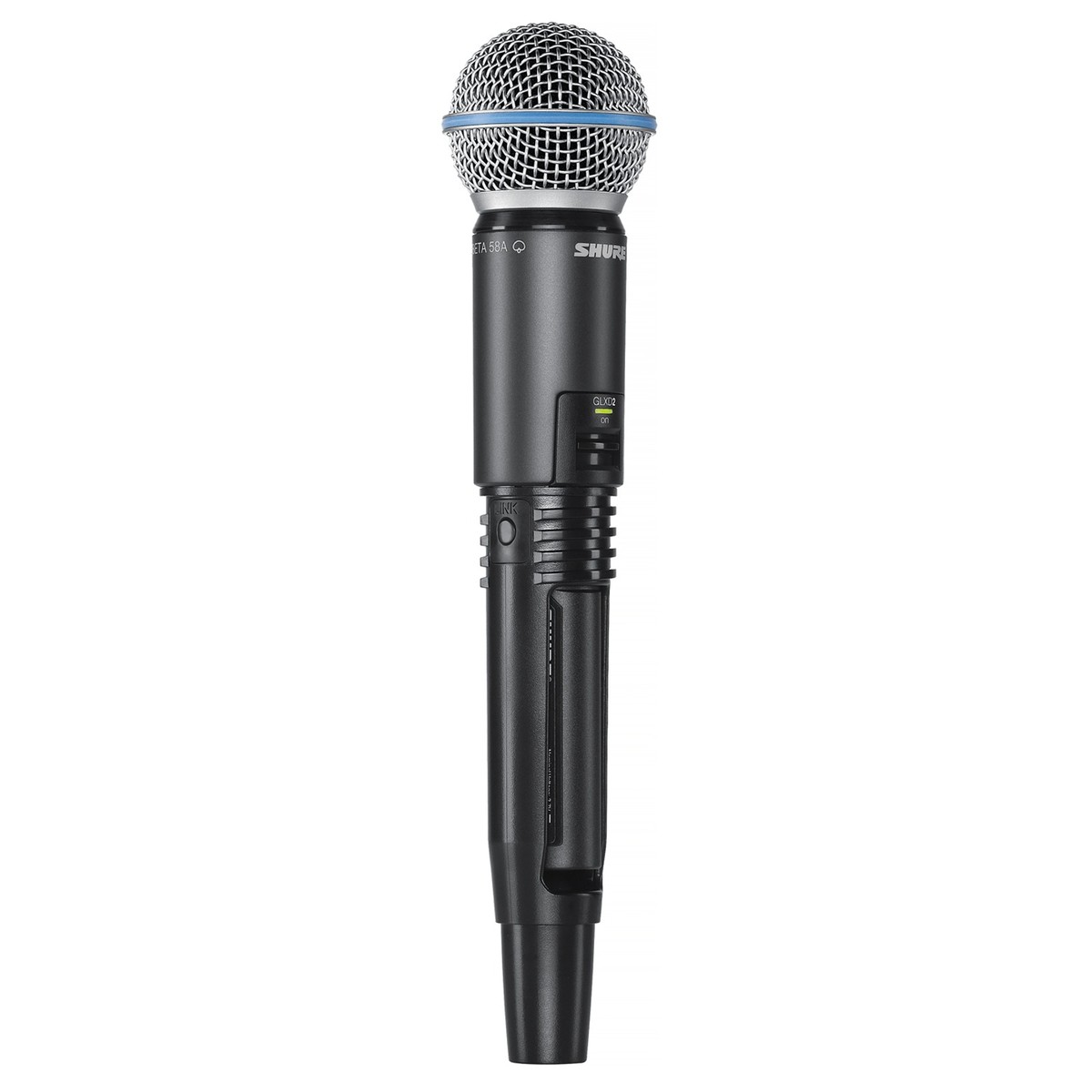

GLXD2/B58 Digital Handheld Transmitter

The transmitter included within this Shure wireless system is designed to provide professional sound reinforcement. The dynamic microphone offers precise engineering with a contemporary design that is both durable and lightweight. The B58 transmitter works with an operating range up to 20-30 metres and can be used continuously for up to 16 hours of use thanks to the rechargeable lithium ion batteries.

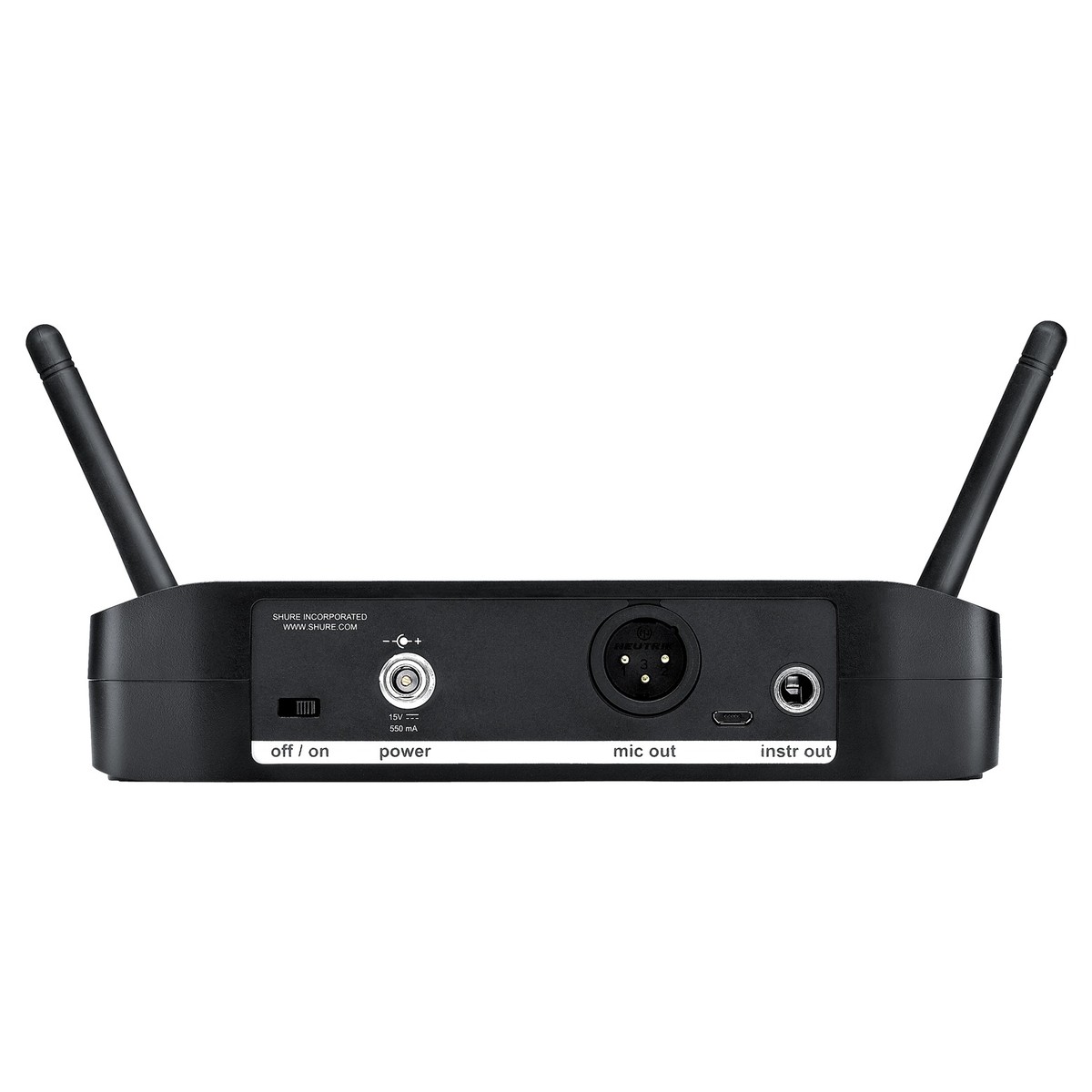

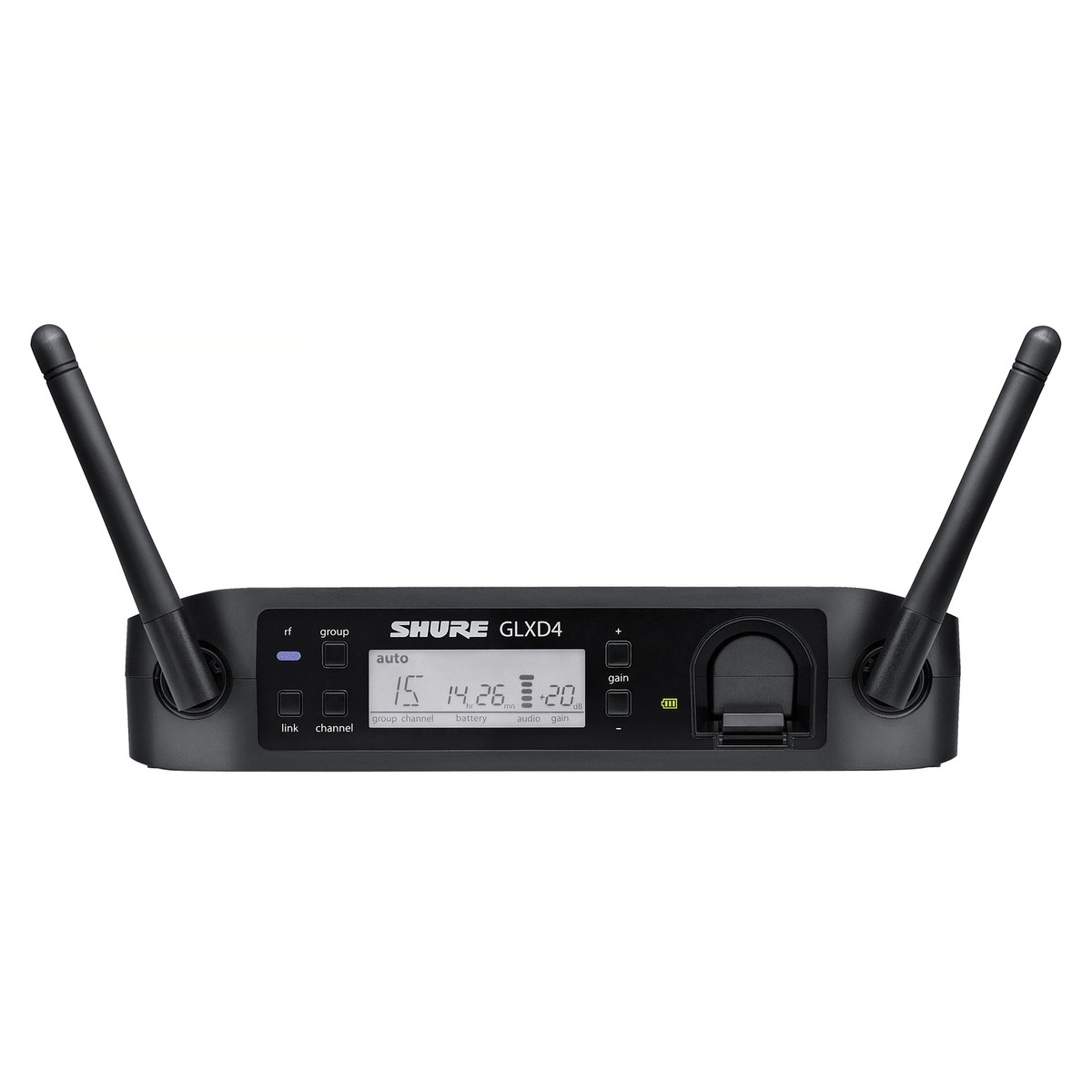

GLXD4 Digital Wireless Receiver

The GLXD4 receiver features automatic frequency management along with true digital diversity that provides outstanding audio clarity. The receiver operates within the license free frequency of 2.4GHz so you experience the excellent wireless signal straight out of the box. The included Shure Lithium-Ion batteries deliver up to 16 hours of continuous use and is charged with the integrated battery charge port. LINKFREQ means that the GLXD4 identifies the best open channels quickly and allows the transmitter to automatically follow any frequency change without interrupting the signal.

Included Within The System

• 1 x GLXD4 Wireless Receiver
• 1 x GLXD2/BETA58 Handheld Transmitter
• 1 x Lithium-Ion Rechargeable Battery
• 1 x Power Supply
• 1 x Carrying Case
• 1 x Thread Adapter
• 1 x USB Cable

Features

GLXD2/B58 Digital Handheld Transmitter

• Automatically links with GLX-D wireless receivers
• Integrated microphone capsule design
• Sophisticated durable design
• Operating range of 20-30 metres under typical conditions
• Two-colour transmitter status indicator LED
• Includes custom lithium ion batteries for up to 16 hours of continuous use
• Connect for 15-minute quick change for 1.5 hours of performance

GLXD4 Wireless Receiver

• Operates globally license-free in 2.4GHz spectrum
• Allows operation of up to 8 compatible systems (dependent on operation mode)
• LINKFREQ quickly identifies best open channels & enables transmitter to follow any frequency change
• High-resolution LC display
• Transmitter battery status monitored in hours & minutes
• Identifies transmitter from receiver & vice-versa
• Remote adjustable transmitter gain control
• 120 dB dynamic range
• Real-time battery run time displayed in hours & minutes
• Integrated battery charge port for proprietary Shure Lithium-Ion transmitter batteries
• XLR & 1/4″ output connectors

Specifications

GLXD24/BETA58A System

• Set Type: Vocal
• Amount Of Handhelds: 1
• Number Of Compatible Systems Per Frequency Band: 8
• System Operating Range:
  • Indoors: Up to 30m, With Maximum of 60m Under Ideal Conditions
  • Outdoors: Up to 20m, With Maximum of 50m Under Ideal Conditions
• Transmit Mode: Frequency Hopping
• RF Sensitivity: -88 dBm, Typical
• RF Output Power: 10 mW E.I.R.P. Max
• Total Harmonic Distortion: 0.2 , Typical
• Operating Temperature Range: -18°C to 57°:C
• Storage Temperature Range: -29°C to 74°C

GLXD2/B58 Digital Handheld Transmitter

• Form Factor: Handheld
• Operating Range (Up To): 20-30 m
• Battery Life Lithium: 16 h
• Transmitter Housings: Molded ABS
• Audio Mute: No
• Detachable Antenna: No
• Switchable RF Power: No
• Batteries: Shure Lithium-Ion Battery
• Battery Status: Multi-Colour LED
• Charger Options: USB Charger, CAR Charger, Wall Charger, Docking Charger
• Frequency Diversity: No
• Functionality: Transmitter
• High Density Mode: No
• Weight: 221 g
• Dimensions:
  • Height: 252 mm
  • Width: 51 mm
  • Depth: 51 mm

GLXD4 Digital Wireless Receiver

• Transmission: Digital On 2.4 GHz
• Type Of Power Supply: External
• Receiver Housings: Molded ABS
• Active Antenna Possible: No
• Bias via BNC: No
• High Density Mode: No
• Interference Detection: No
• Remote Control: Yes
• Number Of Compatible Systems Per Frequency Band: 8
• DANTE Audio Network Interface: No
• Scan Features: Channel Scan, Group Scan
• Sync Features: Pairing (2.4 GHz & DECT)
• Detachable Antennas: No
• Logic: No
• Cascade: No
• Receiver Displays: Multi-Function LCD
• Receiver Type: Single
• Included Antenna: External 1/2 Wave
• Battery Status: Leveled Battery Life Indication, Hours & Minutes
• Line Mic Switch: No
• RF Sensitivity: -88 dBm For 12dB SINAD, Typical
• Phantom Power Protection: Yes
• Spurious Rejection: 35 dB, Typical
• Antenna Input Impedance: 50 Ω
• Tuning Range: 2400 MHz
• Weight: 286 g
