Description

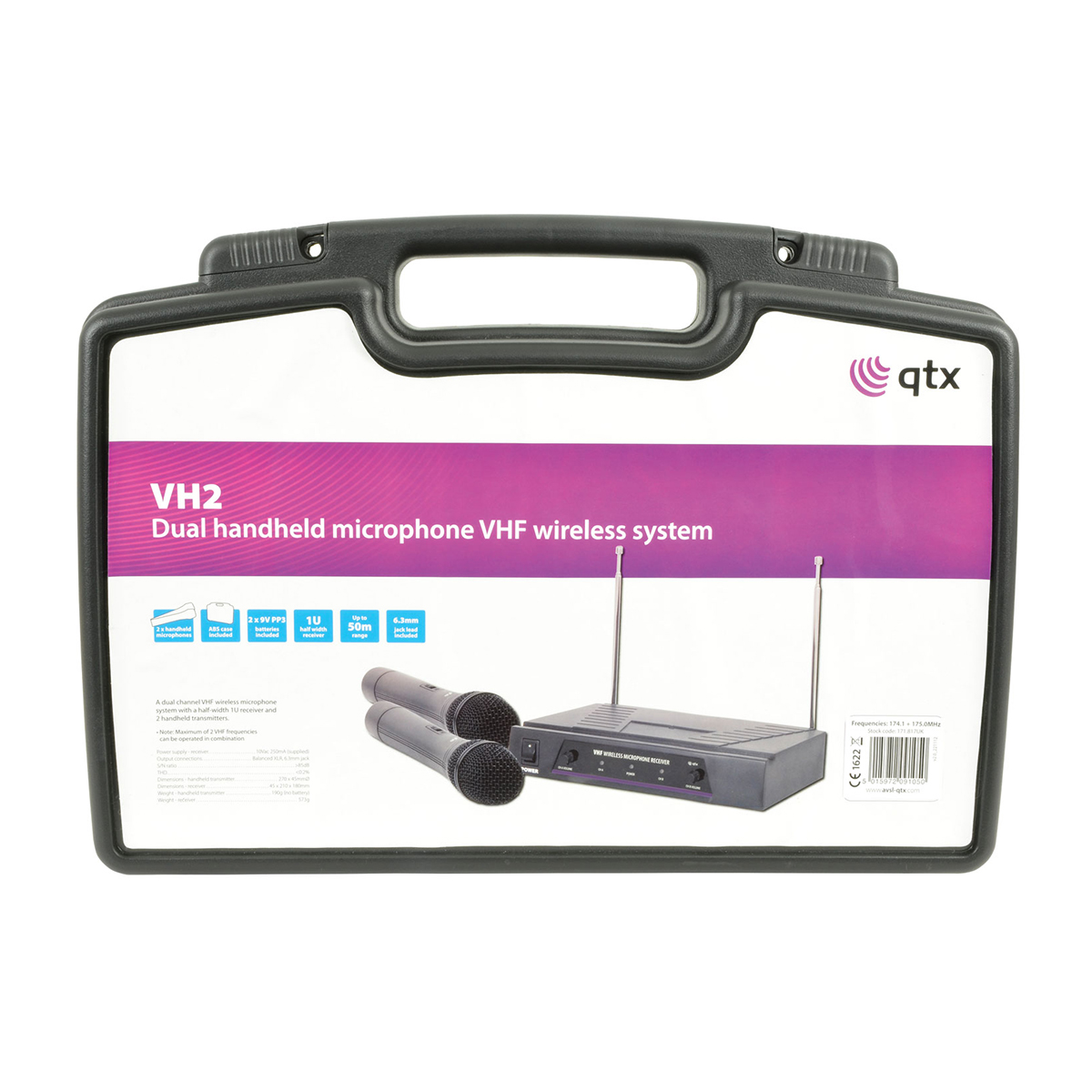

The QTX VH2 Dual Handheld Microphone VHF Wireless System with a half-width 1U receiver and 2 handheld transmitters.

Frequncies: 174.1 + 175.0MHz

• On/Off control on transmitter

• Note: Maximum of 2 VHF frequencies can be operated in combination

• Up to 50m range

• Batteries and jack lead supplied

  Power supply : receiver – 10Vac 250mA (supplied)

  Power supply : transmitter – 9V, PP3 (1 each, supplied)

  Maximum range – 50.0m

  Signal to noise ratio – >85dB

  THD – <0.2%

  Dimensions : receiver – 45 x 210 x 180mm

  Weight : receiver – 573g

  Dimensions : handheld transmitter – 270 x 45mmØ

  Weight : handheld transmitter – 190g (without battery)
