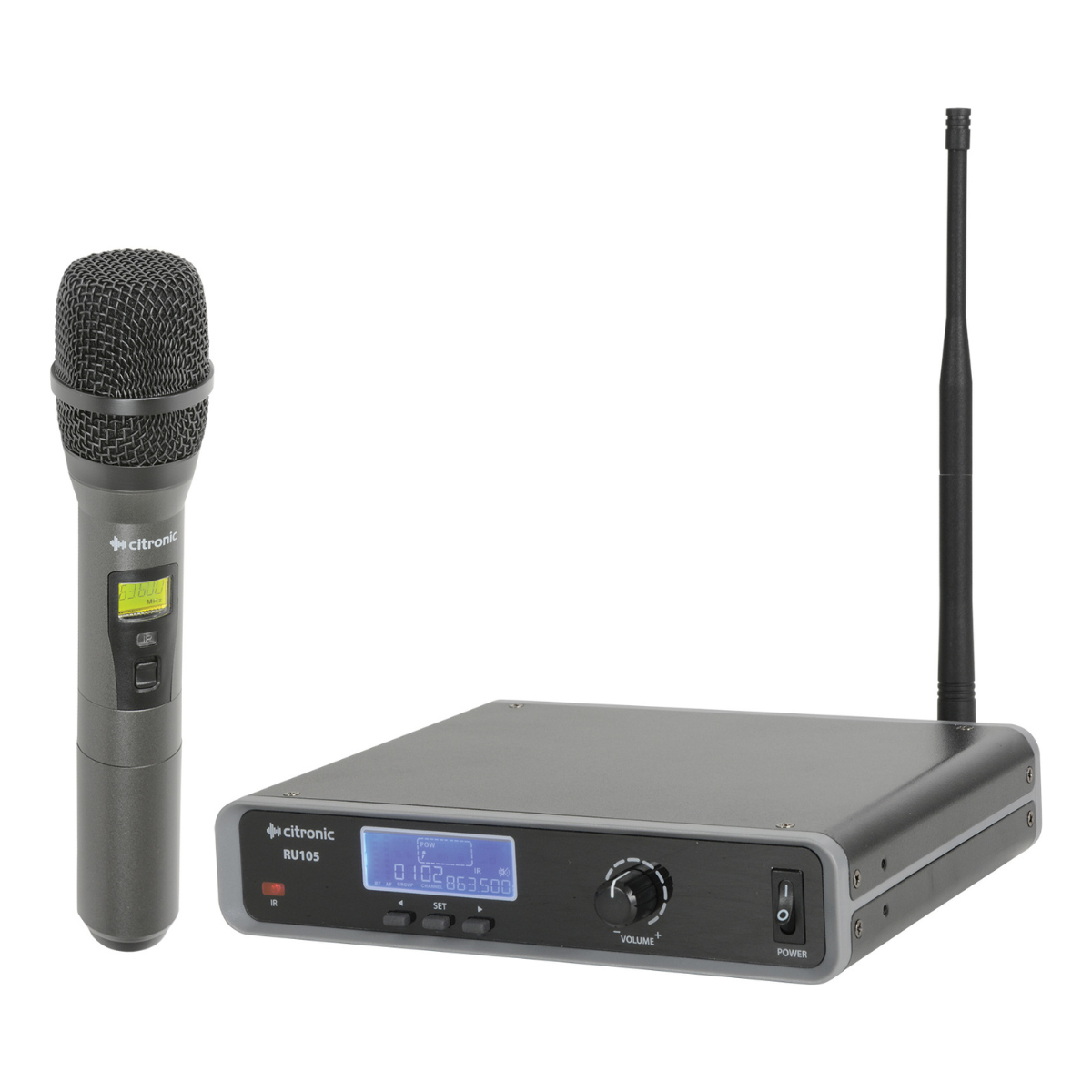

Citronic RU105H Tuneable UHF Wireless Handheld Microphone System

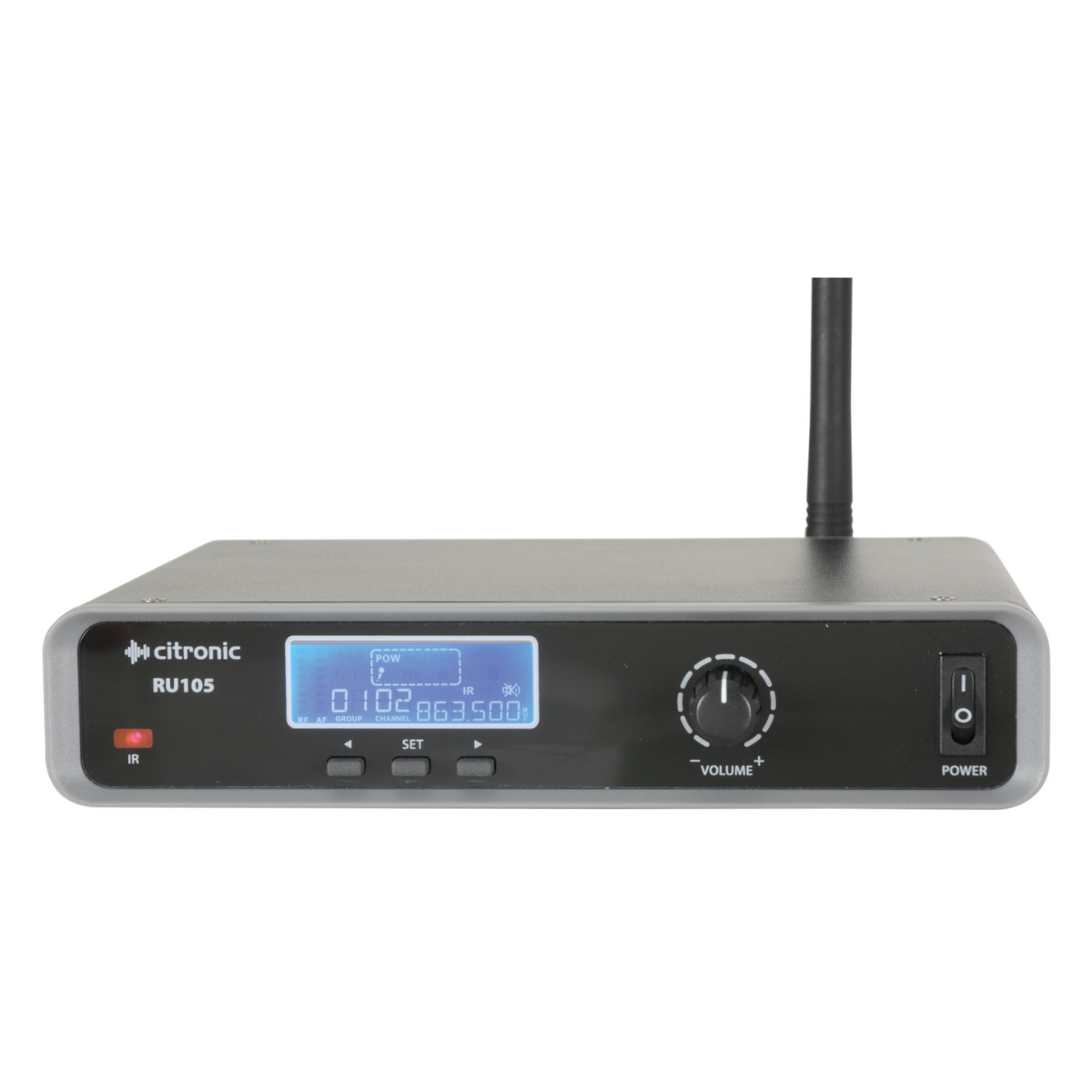

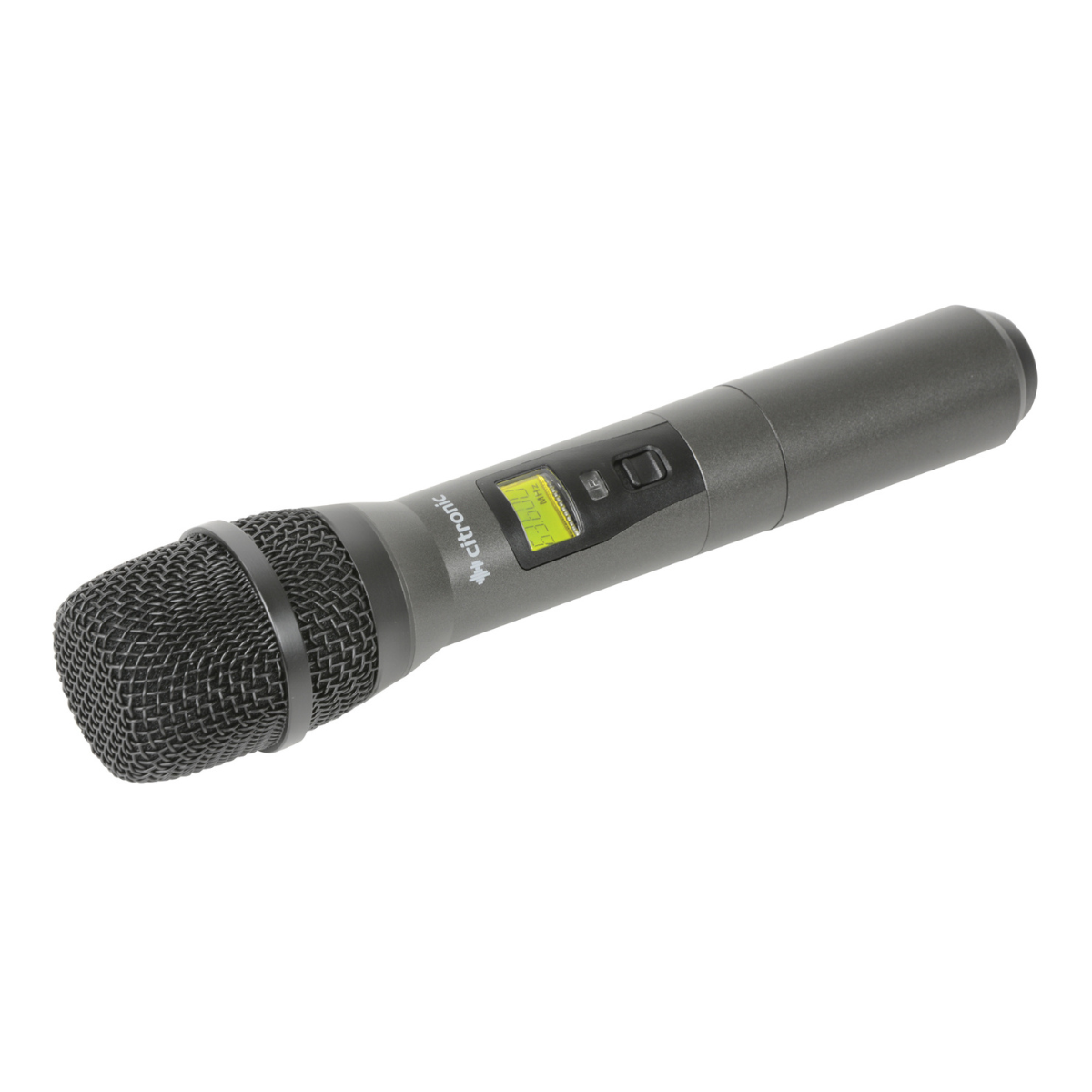

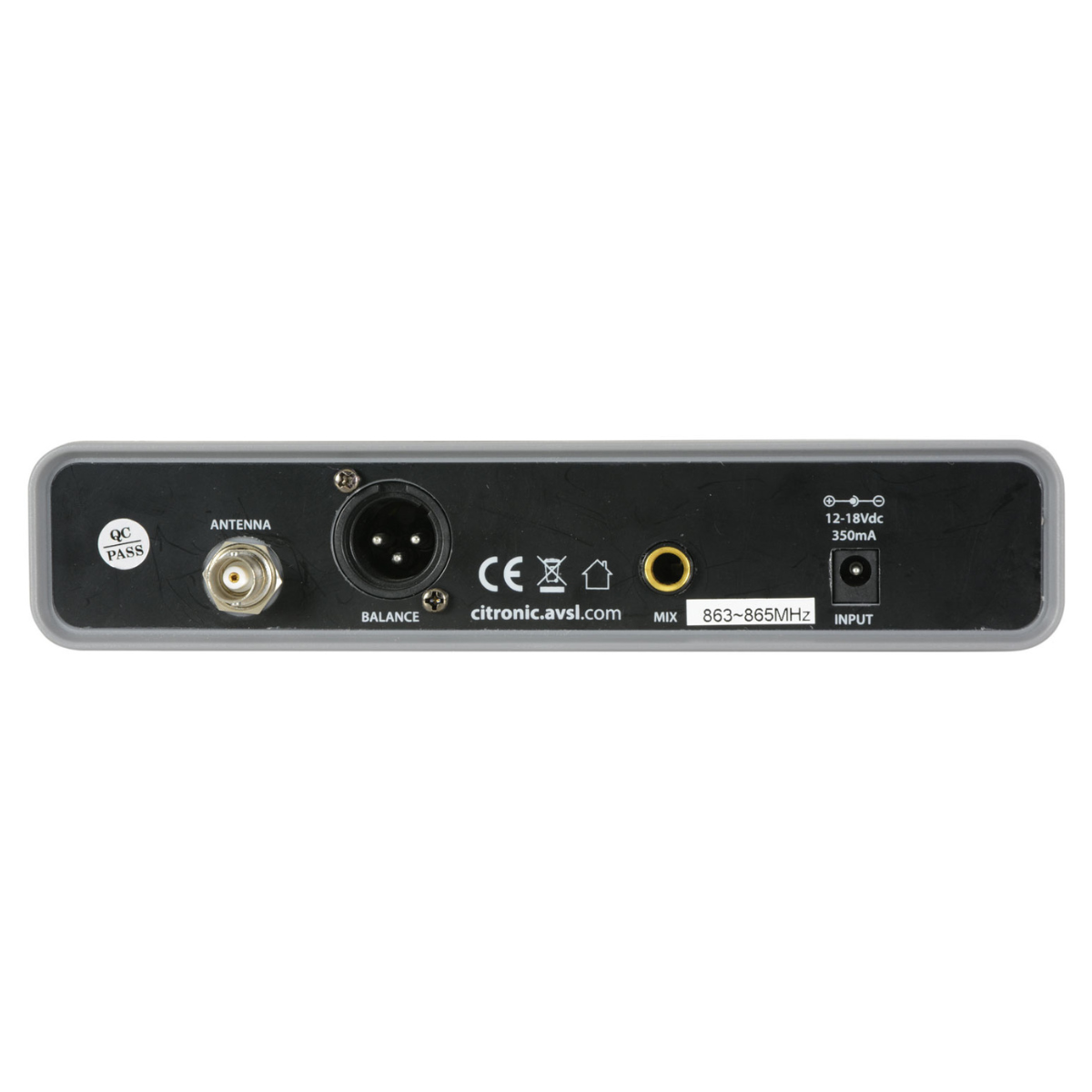

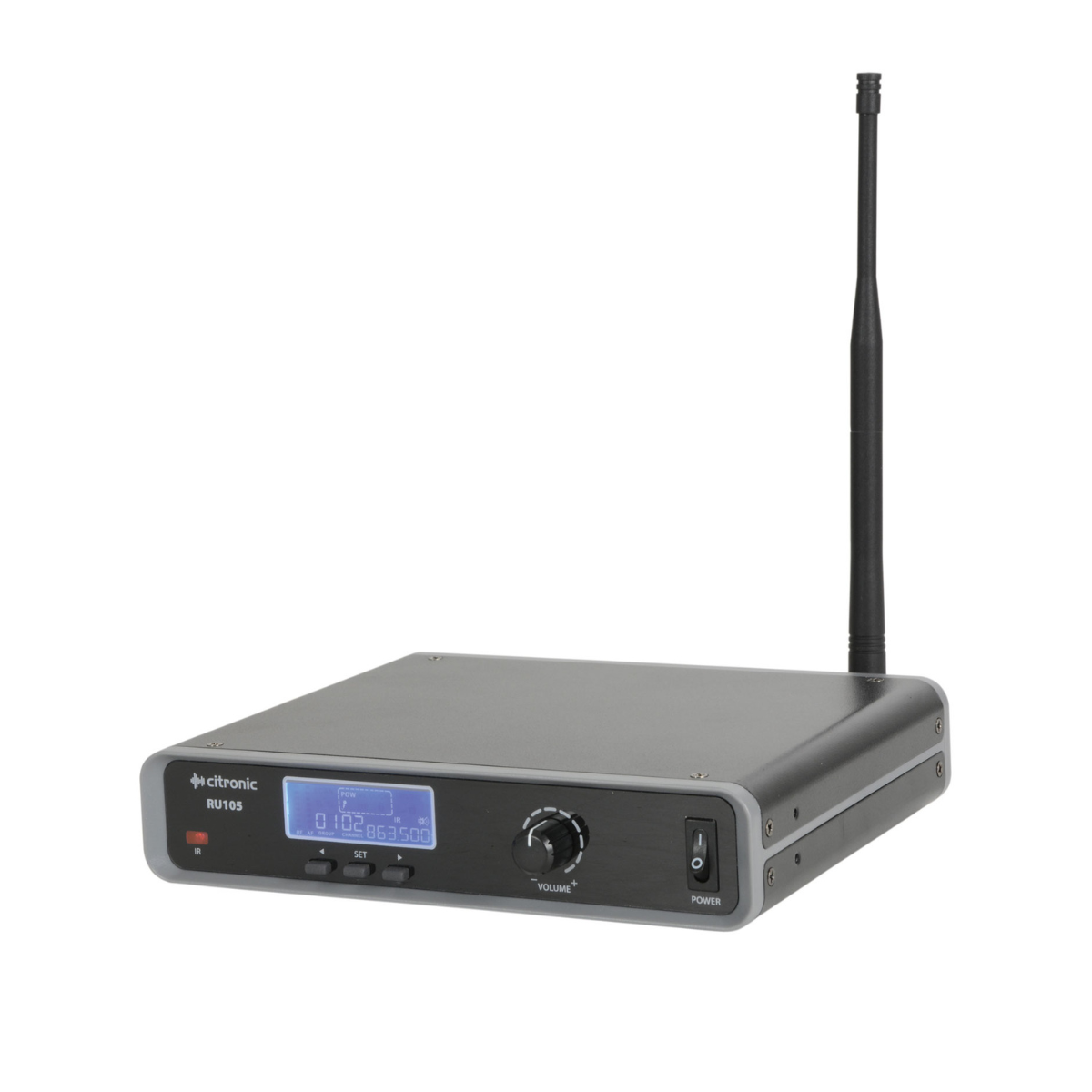

The Citronic RU105H Tuneable UHF Wireless Handheld Microphone System is a single channel PLL tuneable UHF wireless system with a handheld transmitter. The receiver unit is compatible with standard 19″ racks using the included rack ears and front mounting antenna accessories. The RF carrier frequency is selected on the receiver and synchronized to the transmitter via infra-red at the touch of a button. Up to 4 RU105 systems can be operated together on the EU licence-free band.
Citronic RU105H Tuneable UHF Wireless Handheld Microphone System Features:
- PLL tunable with 81 UHF frequencies
- Licence free operation in UK & EU
- Pilot tone & mute circuit for stable signal
- Rack-mounting accessories included
- Supplied with mains adaptor and 2 x AA batteries
Citronic RU105H Tuneable UHF Wireless Handheld Microphone System Specifications:
- Power supply: 12-18Vdc, 350mA (mains adaptor included)
- Carrier frequency: 863 – 865MHz (81 selectable frequencies)
- Range: 60m
- Batteries: 2 x AA (for transmitter – included)
- Signal to noise ratio>105dB
- THD: <0.5% @ 1KHz
- Frequency response: 50Hz-18KHz ±1 dB
- Image rejection>85dB
- Output impedance: 2.2k Ohms
- Output level: 400mV (balanced), 200mV (unbalanced)
- Dimensions : receiver: 44 x 198 x 190mm
- Weight : receiver: 710g
- Dimensions : transmitter: 265 x 49mmØ
- Weight : transmitter: 330g (no battery)
