Description

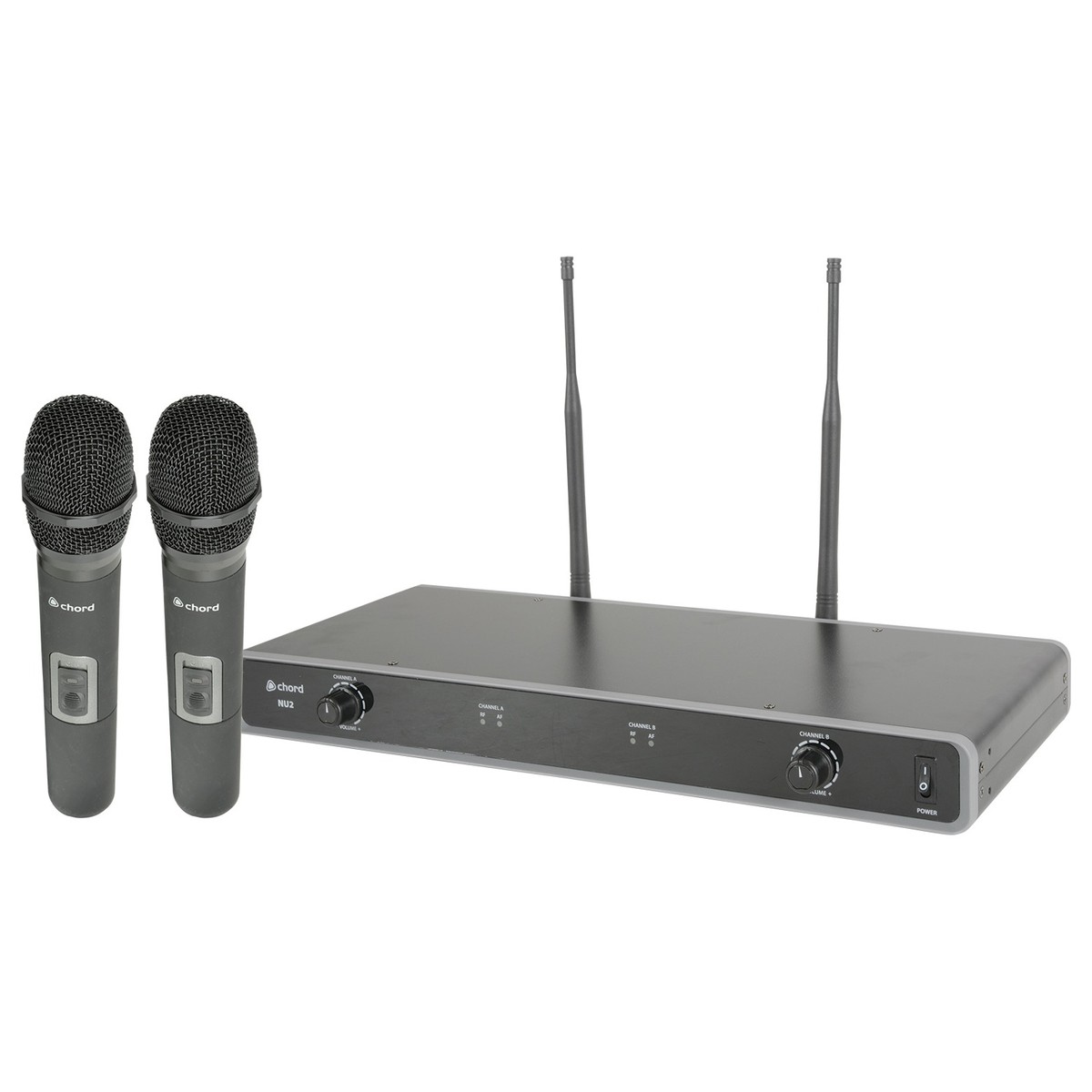

Chord NU2 Dual UHF Wireless Handheld Microphone System 863.3MHz-864.3MHz

The Chord NU2 Dual UHF Wireless Handheld Microphone System features 1 x wireless receiver and 2 x handheld transmitters, ideal for vocal performances and applications. The system operates within the 863.3 – 864.3 MHz frequency range and therefore requires no license to use. With pilot tone and mute circuit, the NU2 ensures a stable signal whilst also providing up to 60 metres of operating range. Supplied with rack-mounting accessories, users can install the receiver with any standard 19-inch rack. Included in the package is a mains power adaptor and 4 x AA batteries.

Included In The Box

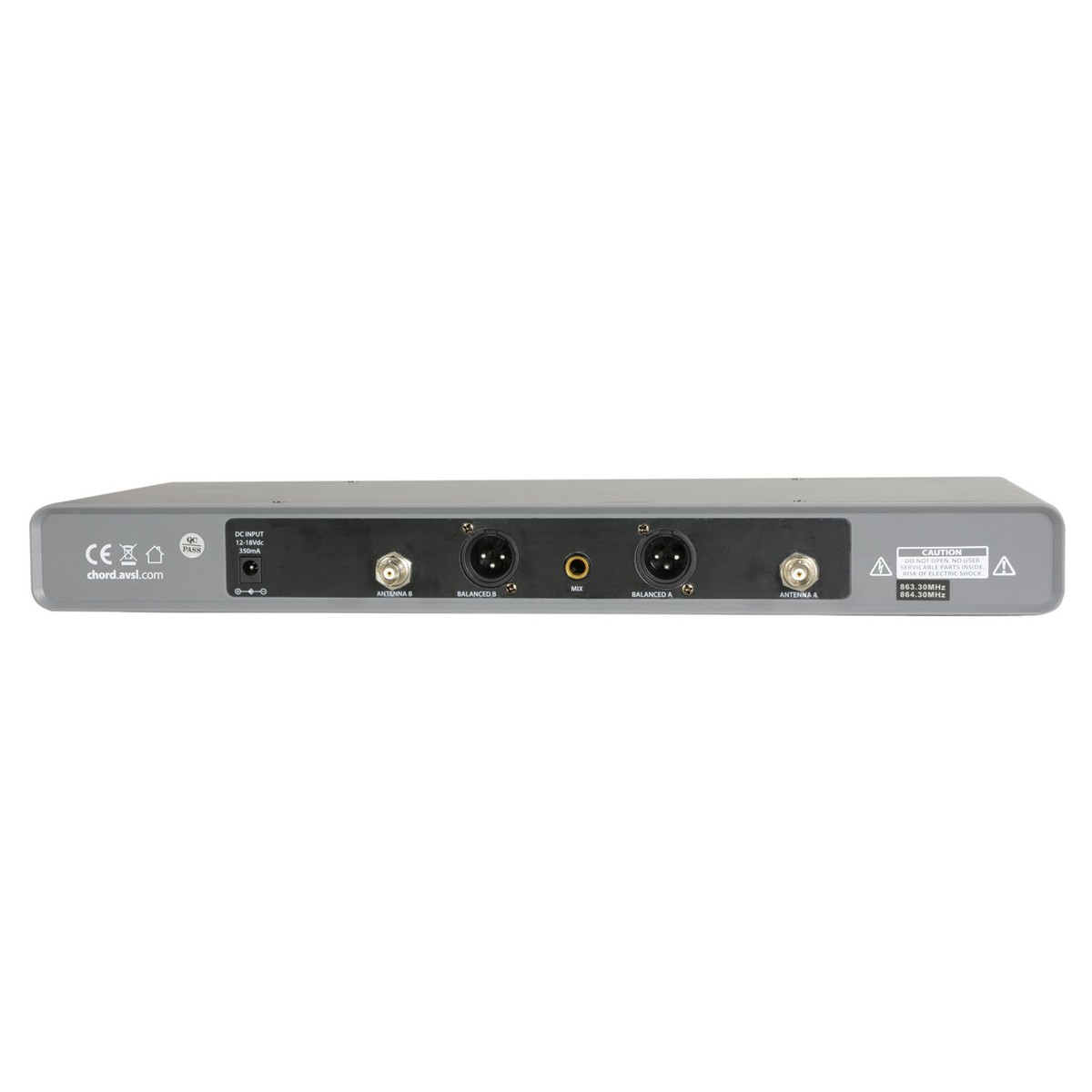

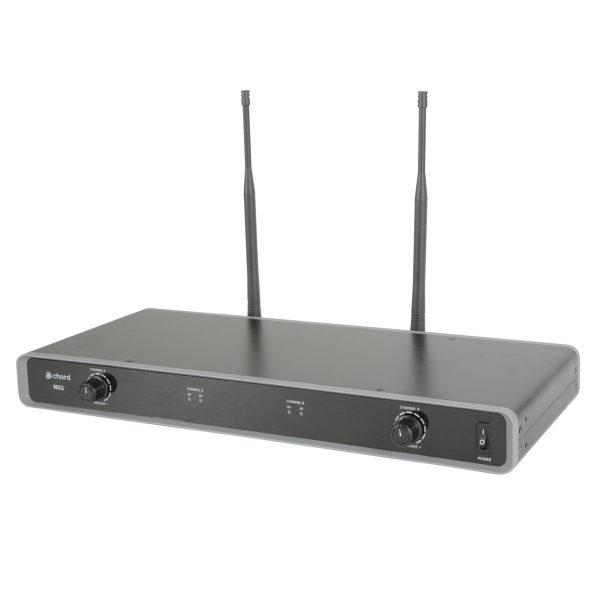

• 1 x NU2 Dual Channel Receiver

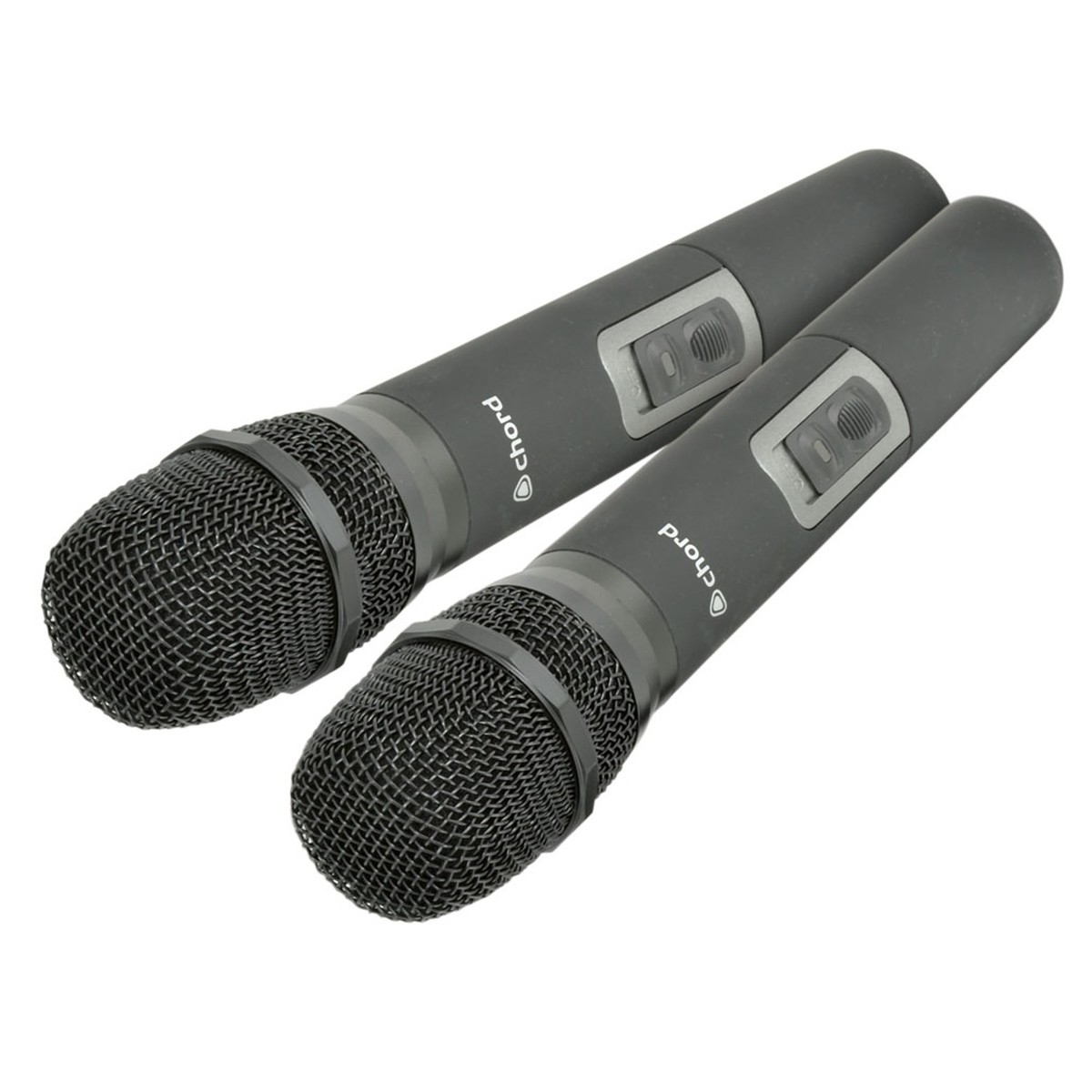

• 2 x Handheld Transmitters
• 4 x AA Batteries
• 2 x UHF Antennas
• 2 x BNC Antenna Leads

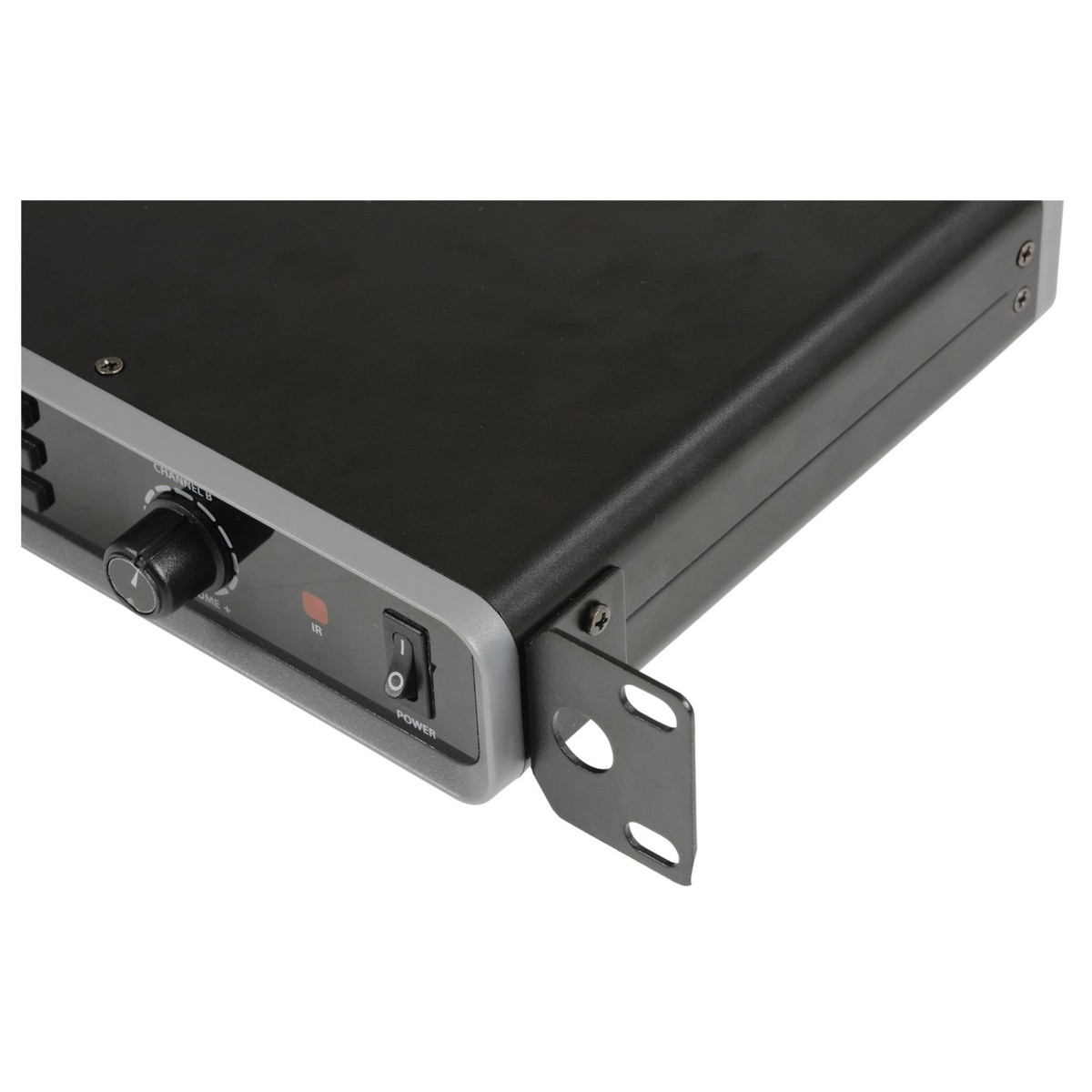

• 2 x 19” Rack-Mounting Ears
• 1 x 6.3mm Mono Jack Lead
• 1 x Mains Power Adaptor

Features

• Pilot tone and mute circuit for stable signal
• License free operation in EU
• Includes rack-mounting accessories, mains adaptor & 4 x AA batteries

Specifications

• Carrier Frequency: 863.3 – 864.3MHz (81 Selectable Frequencies)
• Range: 60m
• Signal-To-Noise Ratio: >105 dB
• Total Harmonic Distortion: <0.5 Percent @ 1kHz
• Image Rejection: >85 dB
• Output Impedance: 2.2kΩ
• Output Level: 400 mV (Balanced), 200 mV (Unbalanced)
• Weight (Receiver): 710 g
• Weight (Transmitter): 75 g
• Dimensions (Receiver)
  • Height: 44 mm
  • Width: 198 mm
  • Depth: 190 mm
• Dimensions (Transmitter)
  • Height: 110 mm
  • Width: 67 mm
  • Depth: 24 mm
