Description

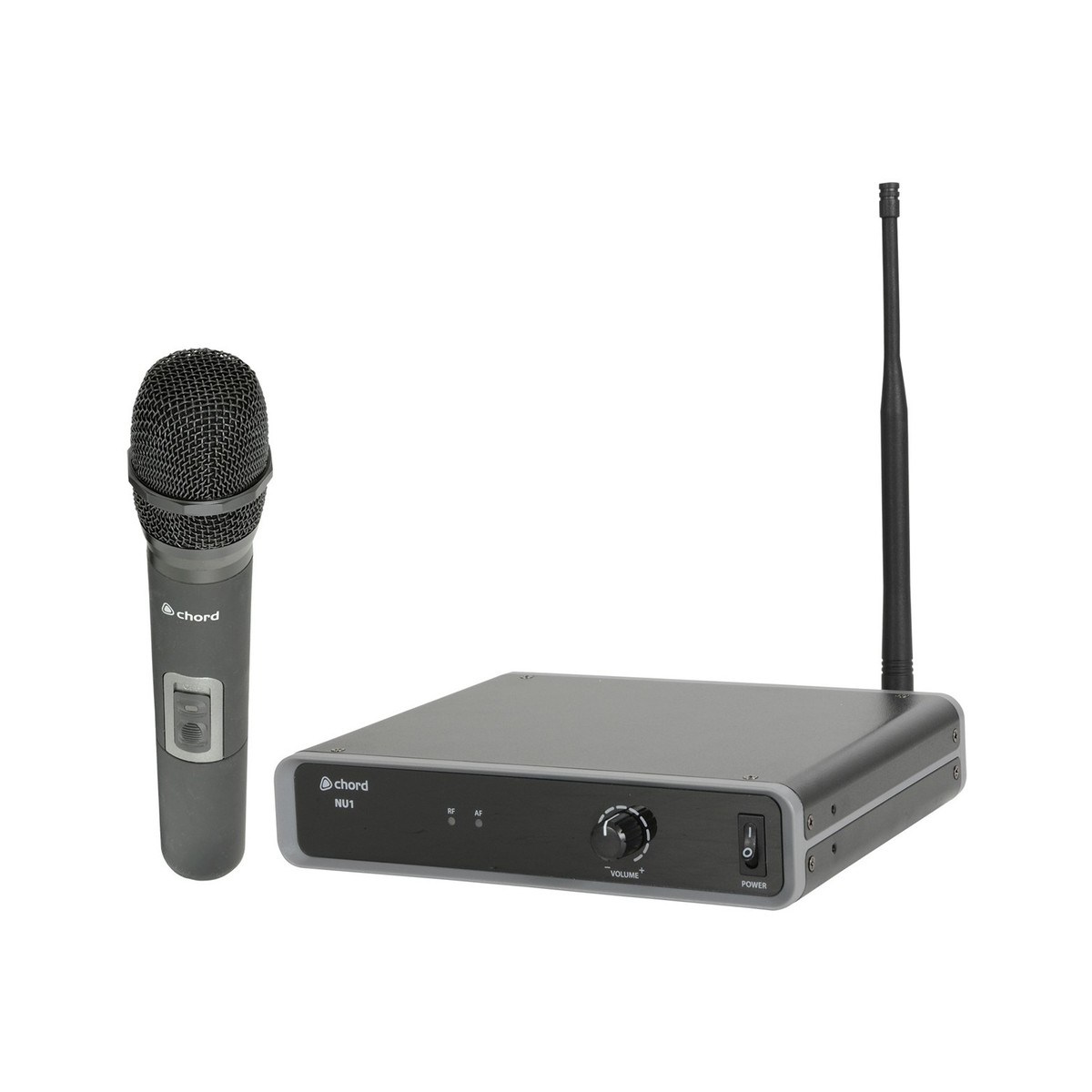

Chord NU1 Wireless Handheld Microphone System 863.1MHz

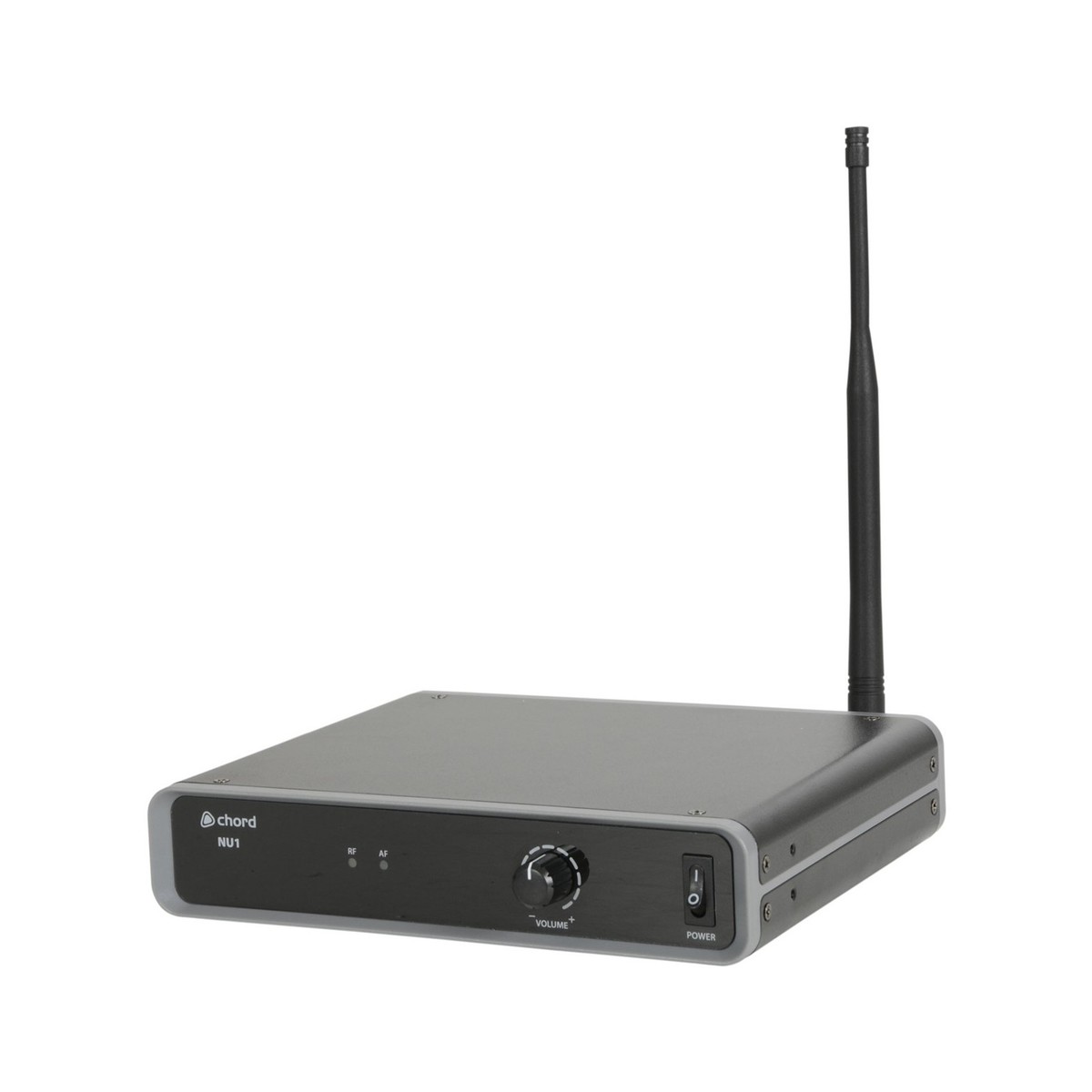

The Chord NU1 Wireless Microphone System features a wireless handheld microphone and a stationary wireless receiver which operates on the 863.1MHz frequency. The handheld microphone accurately captures live vocal performances with clarity and definition, while rejecting background off-axis noise. The front panel of the receiver offers RF and AF indicators which allow you to easily monitor the signal status, and a single level control for adjusting the main output. Pilot tone and mute circuit technology ensures stable signal transmission and interference-free operation. The included rack-mount kit allows you to mount the wireless receiver to a standard 19” rack.

In The Box

• 1 x UHF Receiver
• 1 x Handheld Transmitter
• 1 x UHF Antenna
• 1 x Rack-Mounting Kit
• 2 x AA Batteries
• 1 x PSU

Features

• Pilot tone and mute circuit for stable signal
• 863.1MHz wireless frequency
• Front panel RF and AF indicators
• 60 metre wireless range

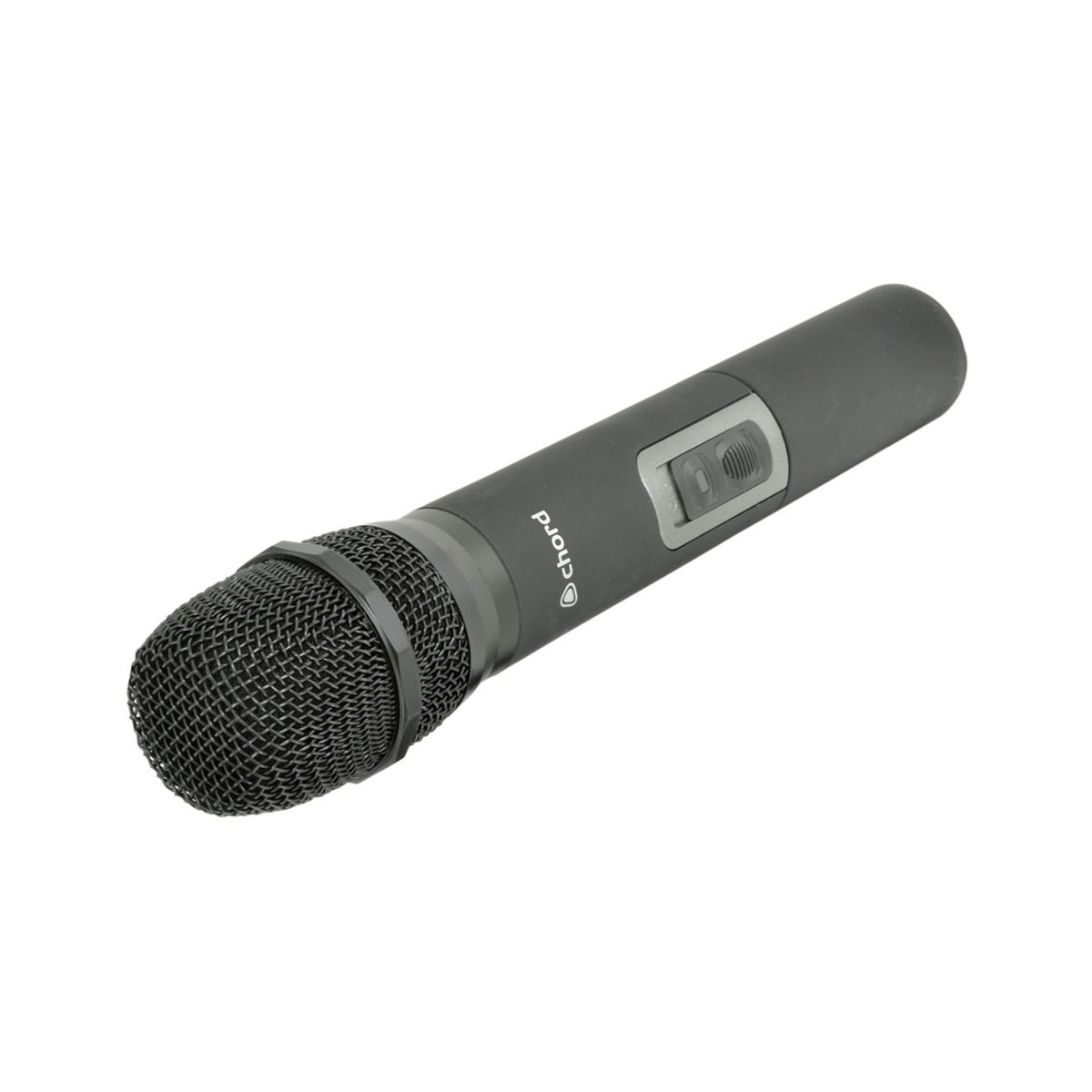

• Handheld microphone with integrated mute switch
• Rack-mounting accessories included
• Supplied with mains adaptor and 2 x AA batteries

Specifications

• Wireless Operating Frequency: 863.1MHz, Channel 70
• Wireless Range: 60 Metres
• Frequency Response: 50Hz – 18kHz, ±1dB
• Signal-to-Noise Ratio: >105dB
• THD: <0.5 Percent @ 1kHz
• Image Rejection: >85dB
• Output Impedance: 2.2k Ohms
• Output Level: 400mV (Balanced) / 200mV (Unbalanced)
• Power Supply: 12V – 18V DC, 350mA (PSU Included)
• Batteries: 2 x AA (Included)
• Dimensions:
  • Receiver: 44mm x 198mm x 190mm
  • Transmitter: 243mm x 48mmØ
• Weight:
  • Receiver: 710g
  • Transmitter: 238g
