Description

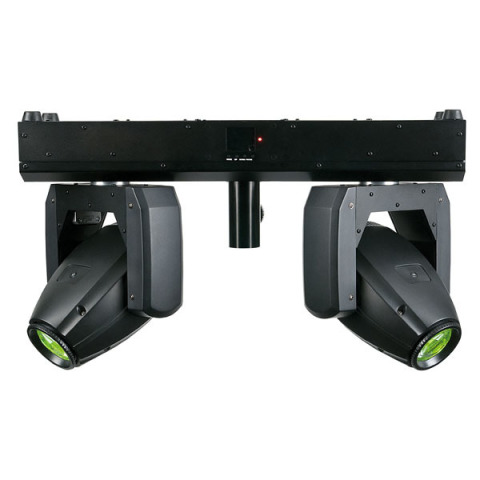

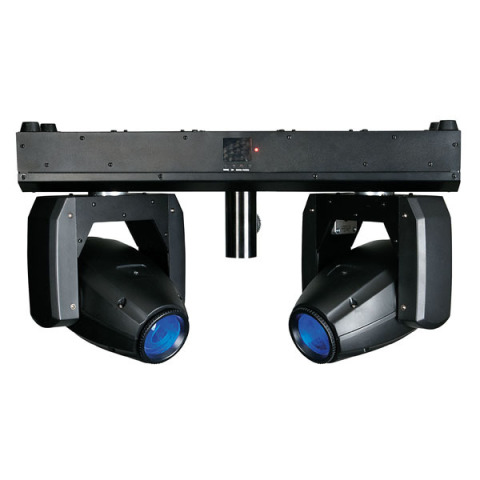

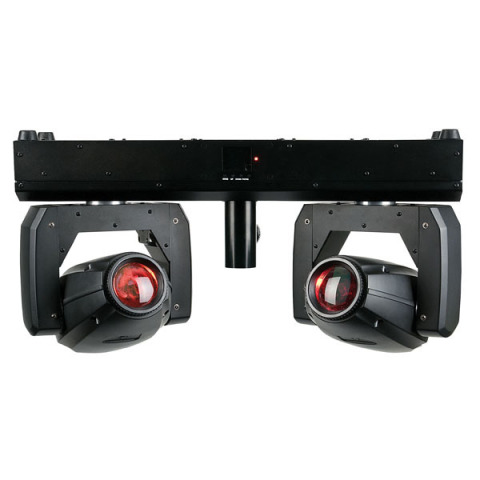

The Showtec XS-2 Dual Beam Effect Lighting are two compact 10W LED moving heads on a T-bar. Both beam-angles is 4 degree which create two strong and tight beams. Both moving heads have 9 gobos and 7 dichros, a dimmer, a shutter function and a manual focus. All functions can be controlled separately in the most advanced 20 CH DMX personality. The T-bar is equipped with 16 built-in programs and in sound mode the sensitivity can be set from 0 – 100. Both moving heads have a pan tilt reverse functionality and user selectable pan/tilt ranges. All these settings are easy to access with a logic menu structure on a full color display. The base has a 35mm stand adapter which makes it directly mountable on a light stand without using adapters but it is also possible to use as floor unit or mount in a truss with a clamp. The Showtec XS-2 Dual Beam Effect Lighting is the ideal solution for mobile dj’s and will give fantastic lightshow with only one unit.

Specifications

Output
Lux @ 1m: 2 x 31.000 lux
Beam Angle: 4°
Light Source: 2x10W

Electrical
Input Voltage: 100-240 VAC
Power consumption: 65W max. at full output
LED Drive Current: 3A

Control
On-Board: Full color display for auto, Sound control & Master/Slave
Control Protocol: DMX512
Control Personality: 10/17/20 Channels

Optical system
Dimmer: 0-100%
Strobe: 0-20Hz
Foucs: Manual

Movement
Pan: 540°
Tilt: 270°
Pan/Tilt resolution: 16 bit
Special: Sound sensitivity, Pan/Tilt reverse, User-selectable Pan/Tilt ranges, Master & Slave set 1/2

Gobos & Color
Gobo: 9 metal gobos + open (not repl.)
Gobo functions: Gobo-flow effect, Gobo shake
Colors: 7 dichroic-filters + white
Color functions: Rainbow-flow effect

Physical
Color: Black
Housing: Metal & Flame-retardant plastic

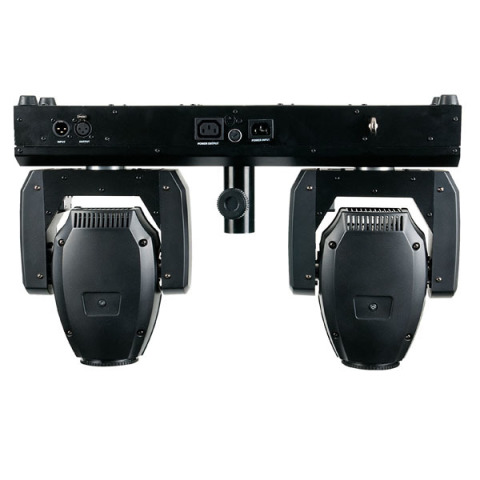

Fixture Connection: XLR Data in/out, IEC Power in/out
Stand adapter: 35mm
Dimensions (WxDxH): 554 x 221 x 361 mm
Weight: 10 kg

Certification and Safety
Certification: CE
Max. ambient Temp.: 40°C
