Description

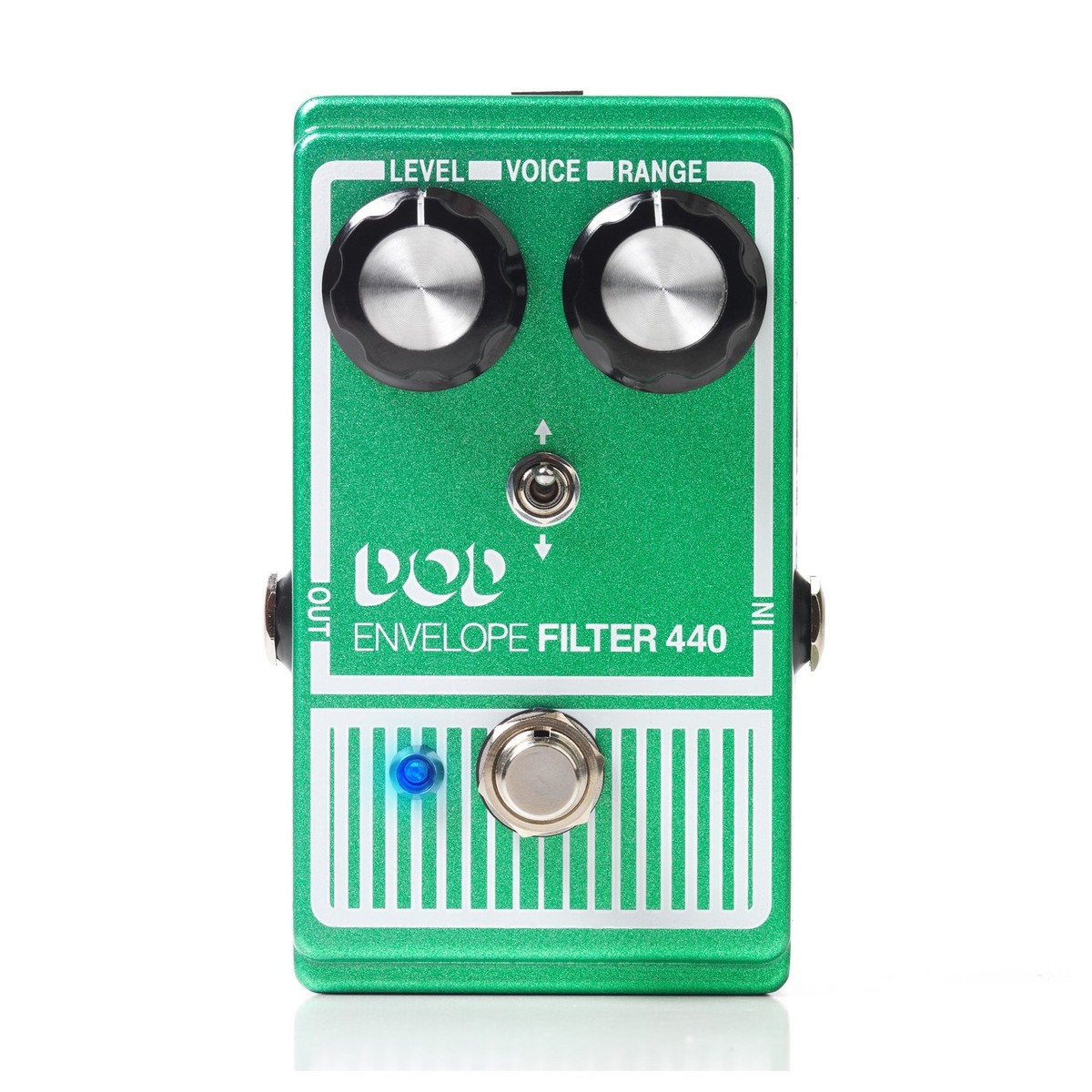

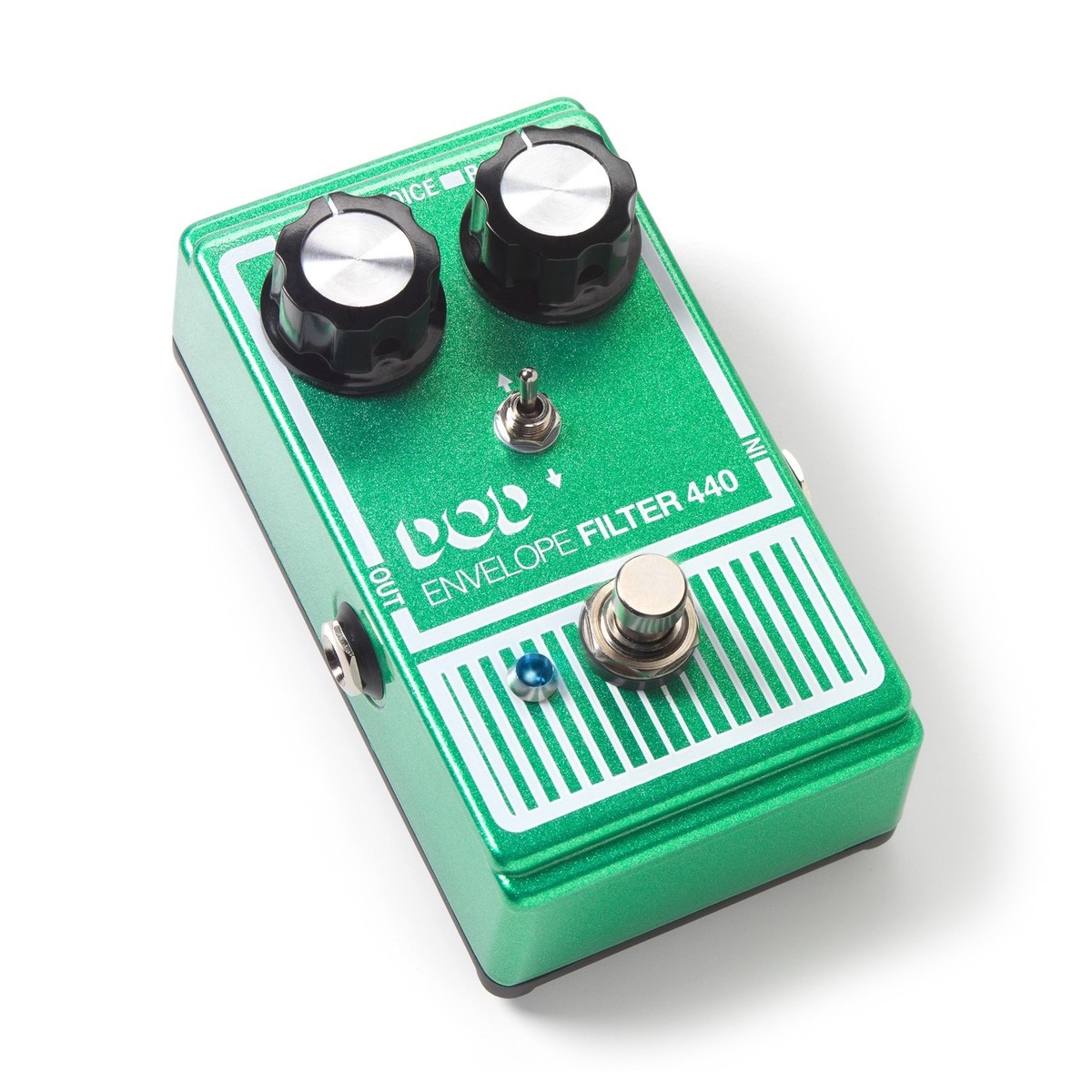

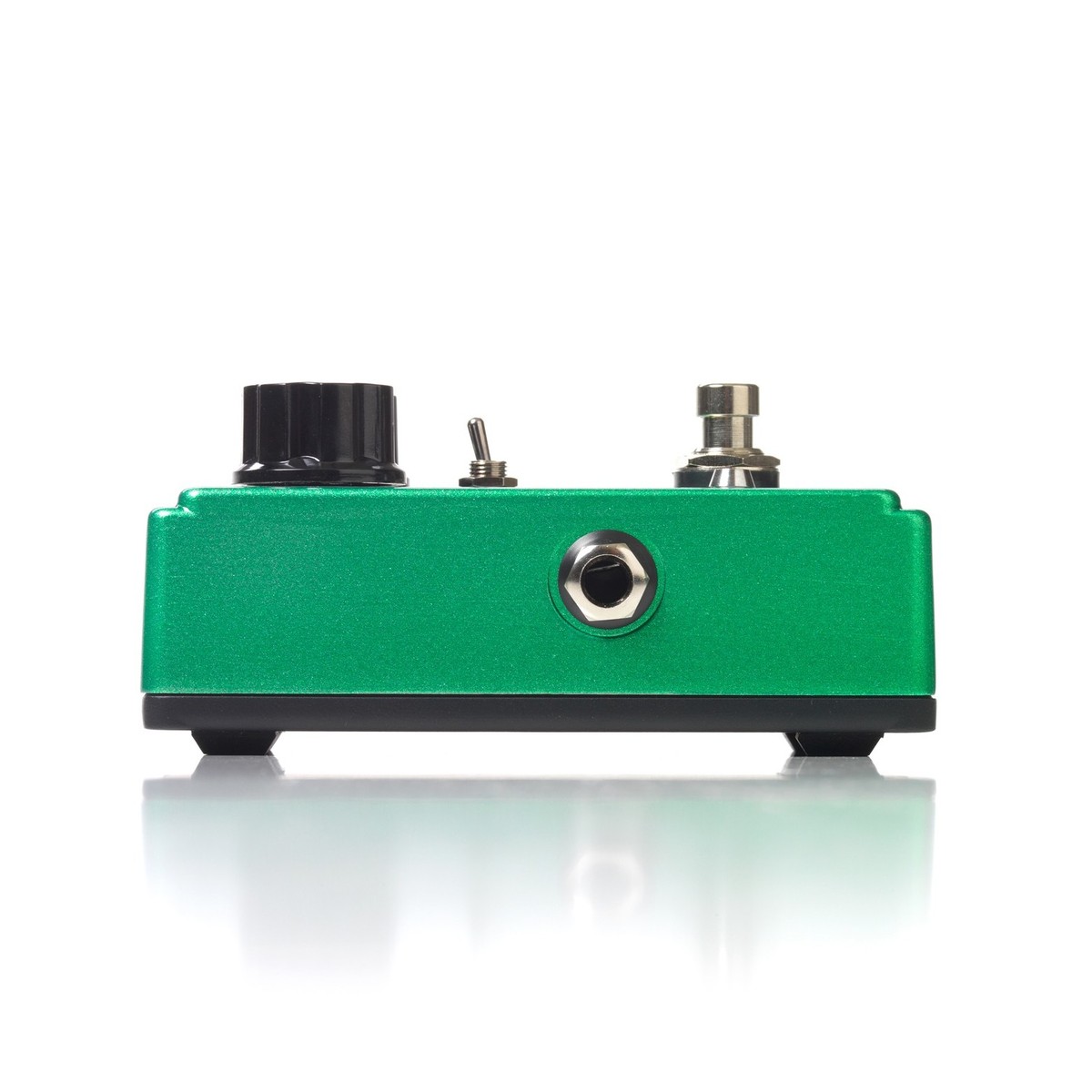

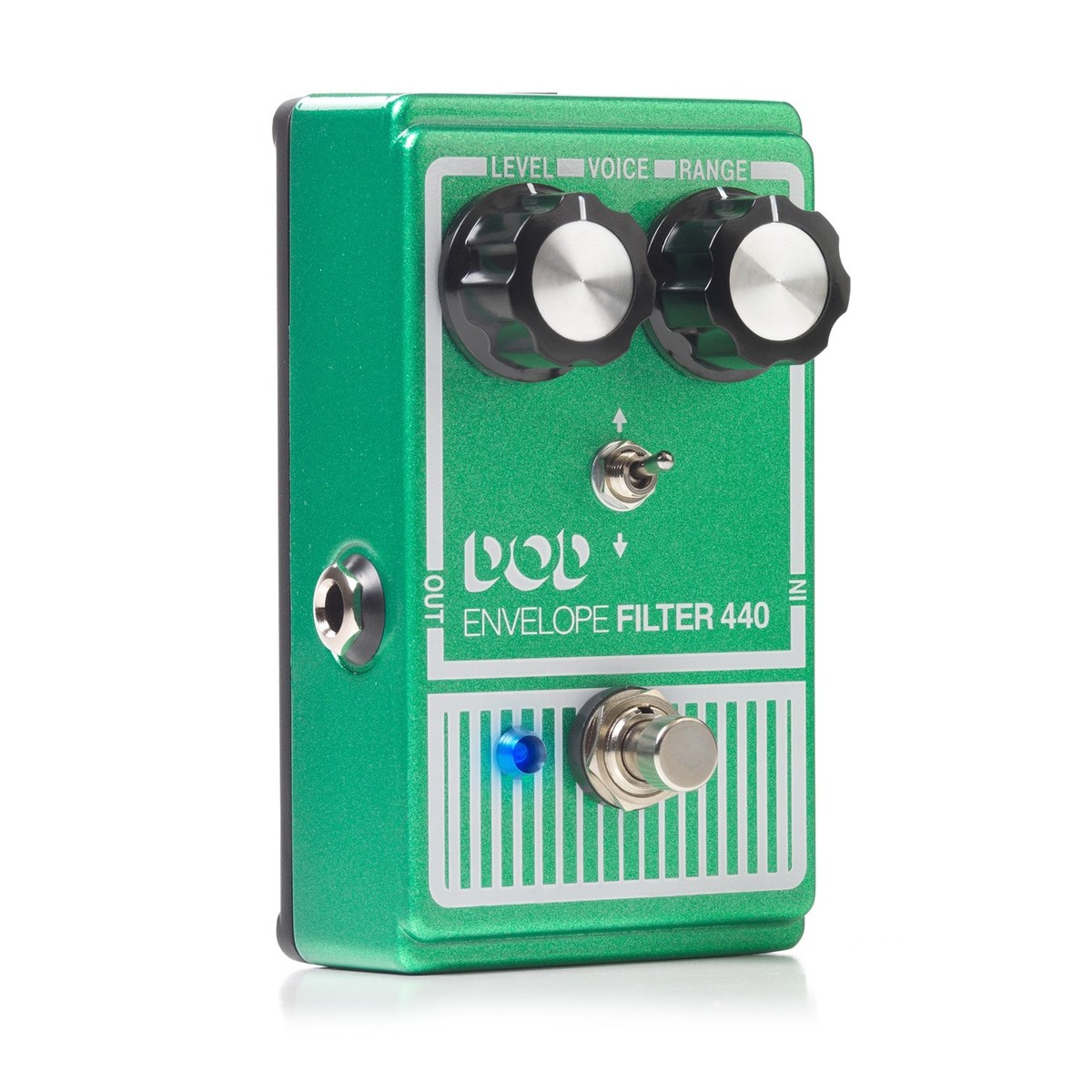

DOD Envelope Filter 440 Effect Pedal
The Digitech DOD Envelope Filter 440 Effect Pedal is a compact stompbox that offers a classic funky quack and swept filter tones that react to your picking dynamics.With its basic two-knob layout, this modern reissue features level and range controls that offer a wide range of tonal options, Other features include an Up/Down toggle switch allows you to choose which part of the sweep to emphasize, a bright LED for use on stage, and also true bypass for a pristine tone. Housed in a durable aluminium shell, the 440 is the perfect companion for any funk guitarist.
A Modern Reissue
The DOD Envelope Filter 440 Effect Pedal features new improvements to its original, including an up/down toggle voice switch located in the center, which allows you to choose which part of the sweep to emphasize. This switch changes the direction of the envelope, and offers more tonal options. The UP position is ideal for guitarists, as it offers a classic quack, and the DOWN position provides a big dub tone for bassists.
Another new improvement is the true bypass signal, which allows your guitar tone to remain pristine, even when the unit is off. This can be put at the start of your pedal chain for the optimum sound.
Level Control
The level controls the sensitivity of the envelope and allows you to tailor the triggering of the filter based upon your pick attack. When using a higher sensitivity, a lower signal will affect the envelope’s effect and therefore you don’t have to pluck as hard to make the effect audible.
Range Control
The Range controls the range of movement of the envelope’s sweep. By turning this counter-clockwise, the envelope filter sweeps more low frequencies, in comparison turning this clockwise sweeps more high frequencies.
DOD Envelope Filter 440 Effect Pedal Features:
- Modern Reissue of a classic pedal
- Classic funky quack or swept filter tones that react to your picking dynamics
- Up/Down toggle switch allows you to choose which part of the sweep to emphasize
- True bypass for a pristine tone
- Offers mellow auto-wah to classic quack
- Crisp blue status LED for viability on stage
- Lighter metal chassis for durability
- Basic 2-knob layout

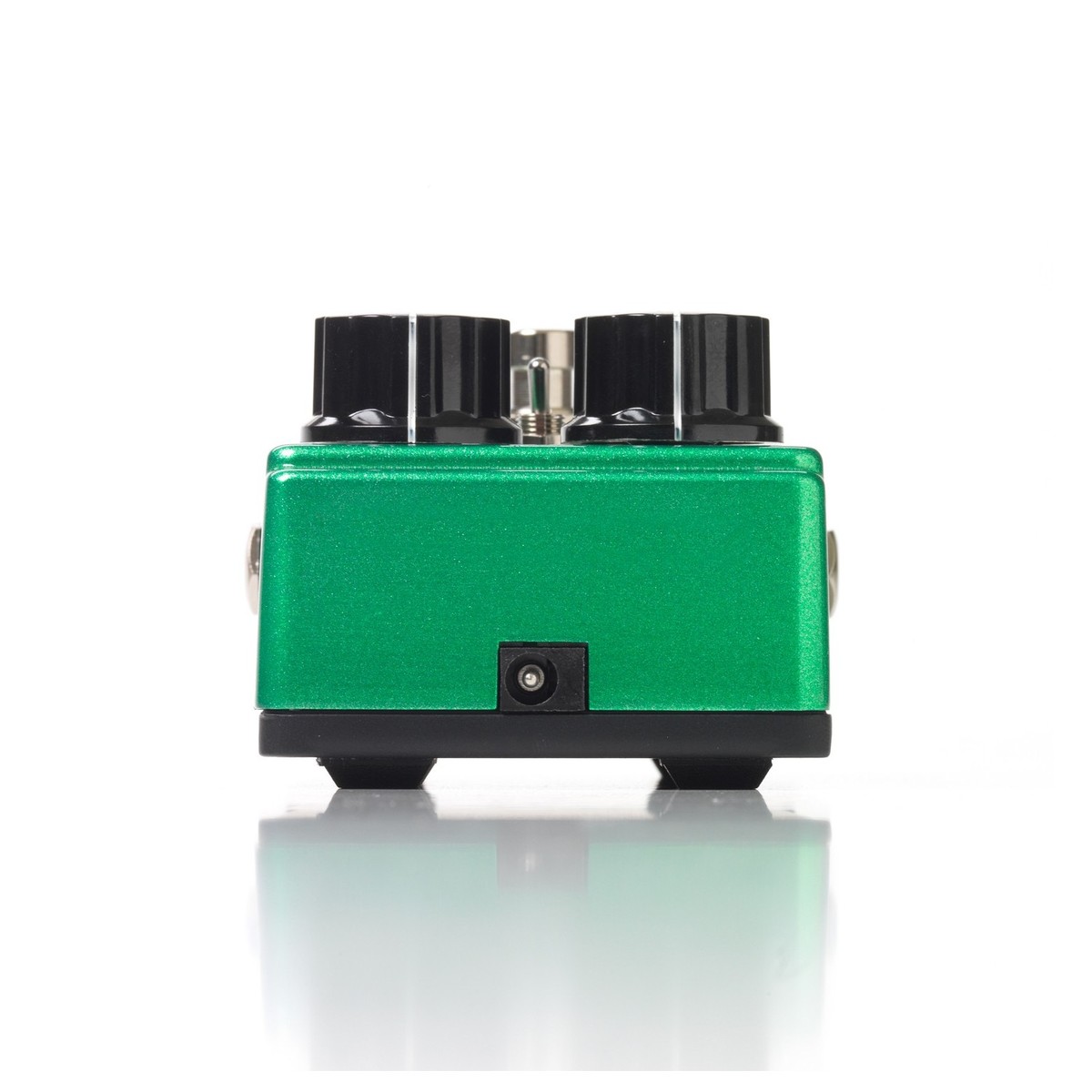

- 9V DC power supply jack
DOD Envelope Filter 440 Effect Pedal Specifications:
- Dimensions: 4.68” x 2.63”x 2.25” (L x W x H)
- Weight: ~0.62 lbs. / 0.281 kgs.
- Input: (1) ¼” Instrument
- Input Impedance: 1M Ohm
- Output: (1) ¼” Instrument
- Chassis: All Metal
- Power Supply: 9V Alkaline Dry Battery; PS0913DC power supply
