Description

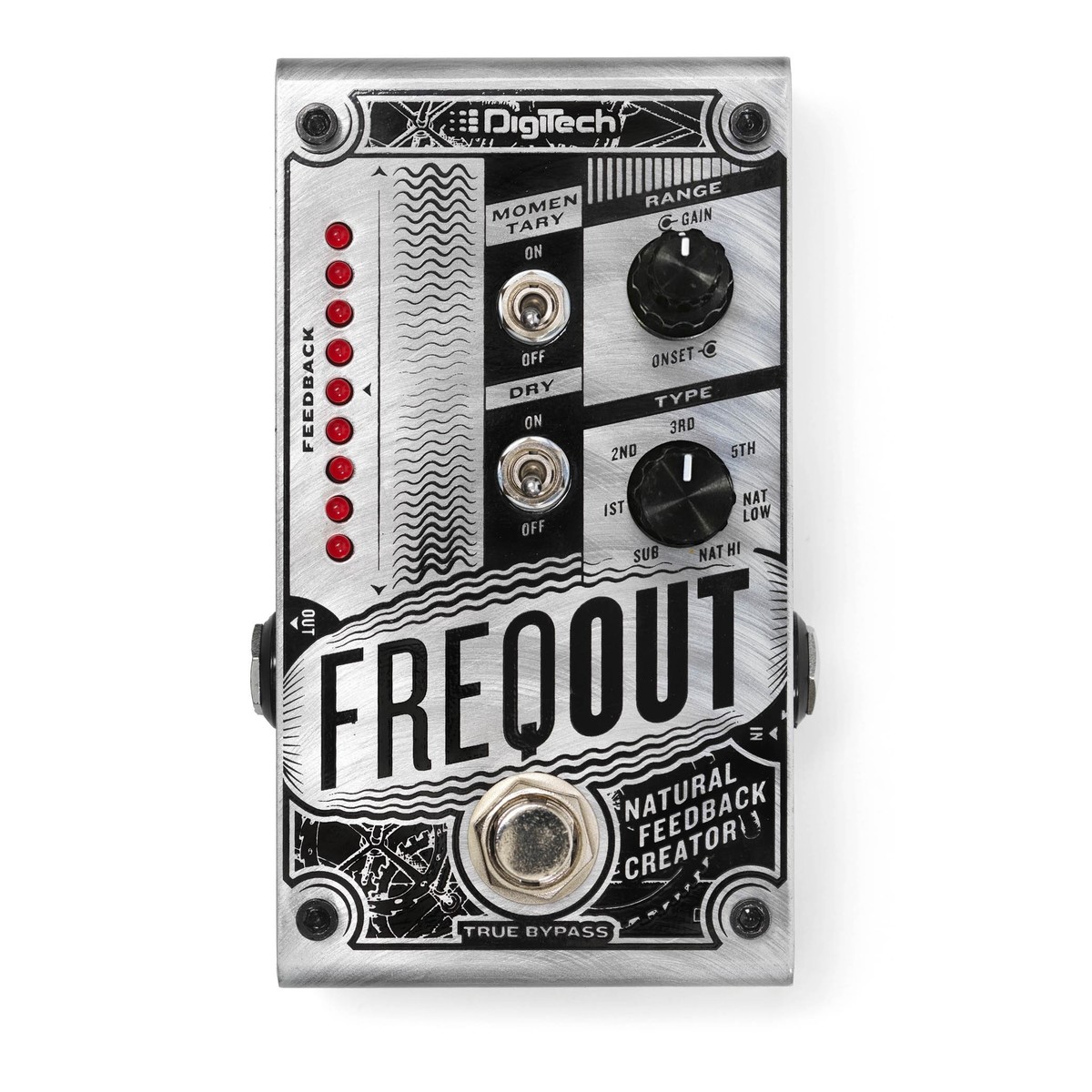

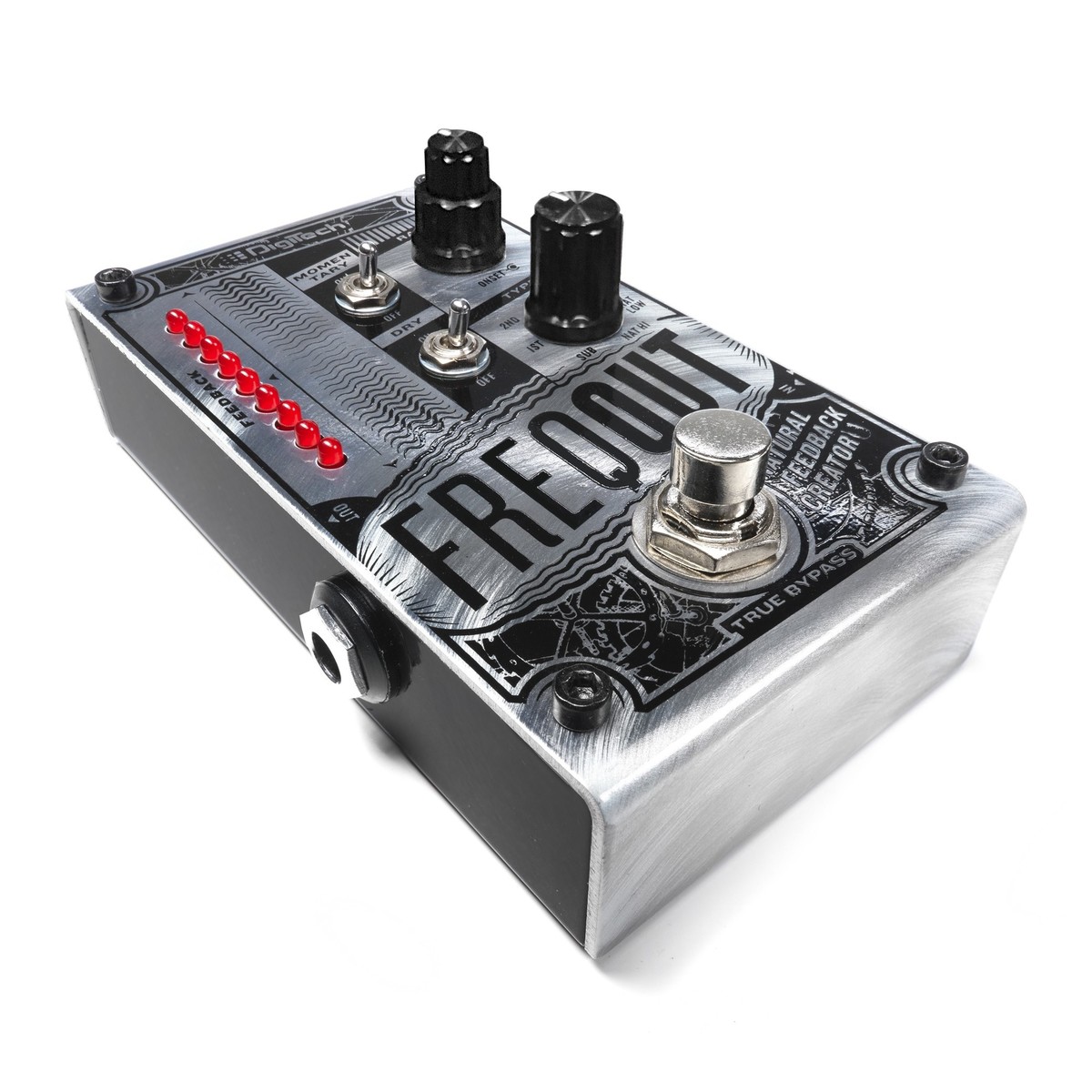

Digitech FreqOut Natural Feedback Creator Pedal
The Digitech FreqOut Natural Feedback Creator Pedal gives you access to seven different feedback types for an expressive performance. Experiment with the gain and onset time controls to create a wide range of saturated soundscapes.You also have the option to remove the dry signal from the effect and set the pedal into momentary mode. This lets you inject feedback onto desired notes without constantly engaging and disengaging the pedal. With the Digitech FreqOut, you can create controlled, natural sounding feedback sustain – all without colouring your original tone.
Wide variety
Digitech’s FreqOut pedal provides you with a natural sounding feedback effect without the need for an amp. This is ideal if you use a digital rig or find it difficult to get the ideal effect on stage. Simply choose from the seven different feedback types and experiment with the gain and onset time controls to find your ideal effect.
The seven feedback types give you access to a wide variety of soundscapes. You can select between sub octave, 1st, 2nd, 3rd, or 5th harmonic to create a fixed feedback tone. The natural high and natural low frequency types provide a more natural effect, giving you a feedback that works around the lower frequencies or higher frequencies.
Mute your Dry Signal and Add Feedback to Certain Notes
You also have control over whether your original sound can be heard in the effect. Simply switch the dry signal off to mute your original signal and only hear the pedal’s feedback.
You can also set the pedal from latching to momentary switching. This is perfect if you don’t want the effect to always be on when the pedal is engaged. Instead, momentary lets you inject feedback on your desired notes or rifts when your desire.
Digitech FreqOut Natural Feedback Creator Pedal Features:
- Natural Feedback at any level with or without distortion
- Onset Delay and Level balance controls
- 7 Harmonic Feedback types
- Dry Defeat
- Momentary/Latching modes
- True Bypass circuitry preserves your tone when the pedal is not in use
Digitech FreqOut Natural Feedback Creator Pedal Specifications:
- Input: 1/4″ Unbalanced (Tip-Sleeve)
- Max Input Level: +5 dBu
- Input Impedance: 1 MΩ (Effect Enabled or Effect Bypassed w/Momentary Switch On) True Bypass (Effect Bypassed w/Momentary Switch Off)
- Output: 1/4″ Unbalanced (Tip-Sleeve)
- Max Output Level: +10 dBu
- Output Impedance: 1 kΩ (Effect Enabled or Effect Bypassed w/Momentary Switch On) True Bypass (Effect Bypassed w/Momentary Switch Off)
- Controls: Feedback, Momentary On/Off, Dry On/Off, Gain, Onset, Type, Effect On/Off
- Signal to Noise Ratio: > -106dB (A Weighted); Ref = Max Level, 22 kHz Bandwidth
- THD: 0.004 @ 1 kHz; Ref = 1 dBu w/Unity Gain
- Power Requirements: 9 VDC External Adapter (Sold Separately)
- Power Consumption: 2.1 Watts (235 mA Typical @ 9 VDC)
- Power Supply Model: PS0913DC-04 (US, JA, EU, AU, UK)
- Power Supply Output: 9 VDC 1.3 A
Dimensions
- Length: 4.75”
- Width: 2.875”
- Height: 1.75”
- Weight: 0.8 lbs. (0.363kg)
